42BYGH872-XXAG4.38 Nema17 2.8V IP44 Waterproof Hybrid Stepper Small Gear Motor

Place of Origin	China
Brand Name	TB-Motor
Certification	CE ROHS ISO
Model Number	42BYGH872-XXAG4.38
Minimum Order Quantity	50
Price	USD
Packaging Details	Carton with Inner Foam Box, Pallet
Delivery Time	28-31 DAYS
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	5000 PCS/MONTH

GET AN ESTIMATE NOW

Product Details

Product Name	Gearbox Stepper Motor	Stepper Angel	1.8
Rated Voltage	2.8V	Rated Current	1.7A
Insulation	2.8mH	Holding Torque	4.5 Kg.cm
Resistance	1.65 Ohms	Phase	2
Insulation Class	B	Step Angle Accuracy	±5%
High Light	IP44 Small Gear Motor,Nema17 Small Gear Motor,2.8V Hybrid Stepper Motor

Product Description

42BYGH607-13AG5 nema 17 1.8 degree high speed customizable stepper motor with gearbox

A stepper motor is an open-loop control element stepper motor that converts electrical pulse signals into angular displacement or linear displacement. In simple terms, it is a device that produces relative angular displacement of objects. By controlling the sequence of electrical pulses applied to the motor coils , frequency and quantity, can control the steering, speed and rotation angle of the stepping motor.

Electrical Specification Of Gearbox Stepper Motor

Model	42BYGH607-13AG5
Step Angle (°/Step)	1.8
Lead Wire	4
Voltage (V)	2.8
Current(A/Phase)	1.7
Resistance	1.65
Inductance (mH/Phase)	2.8
Holding Torque with gearbox (kg.cm)	4.5

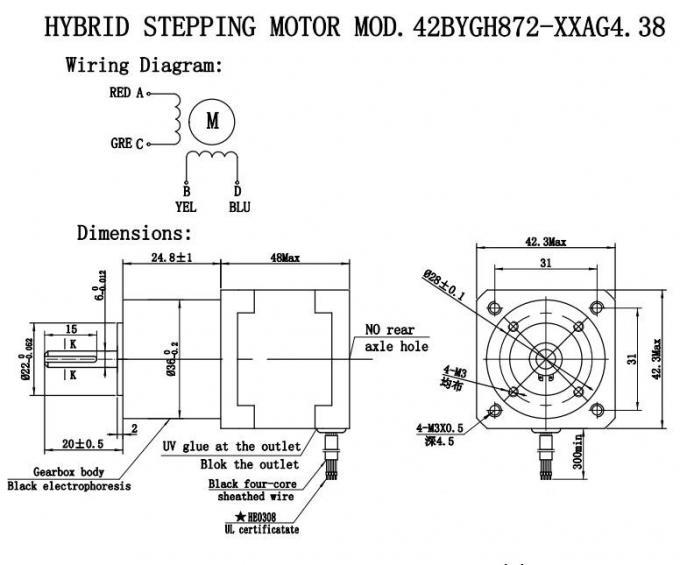

Mechanical Dimension Of Gearbox Stepper Motor

Experienced Manufacturer

Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

Product Range Of TB-Motor

Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… TB-Motor also sends its products to USA, Europe, Southeast Asia and all-around China.
