42mm Gearbox Stepper Motor Speed Reducer 0.4a 3.8 Kg Cm 340 Oz In Explosion Proof
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 42BYGH603-09AG117 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 25 DAYS |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Stepping Gearbox Motor | Step Accuracy | ± 5% |
|---|---|---|---|
| Temperature Rise | 80 ℃ Max | Insulation Resistance | 100MΩ Min.500VC DC |
| Ambient Temperature | -20℃~+50℃ | Dielectric Strength | 500VAC 1 Minute |
| Max Radial Force | 28N (20mm From Front Flange) | Max Axial Force | 10N |
| HOLDING TORQUE | 3800 G.cm | INDUCTANCE | 65 M.H/PHASE |
| High Light | explosion proof stepper motor 3.8Kg Cm 340Oz in,Stepper Motor Speed Reducer 3800 G Cm,Gearbox Stepper Motor 0.4a 3800 G Cm | ||
Product Description

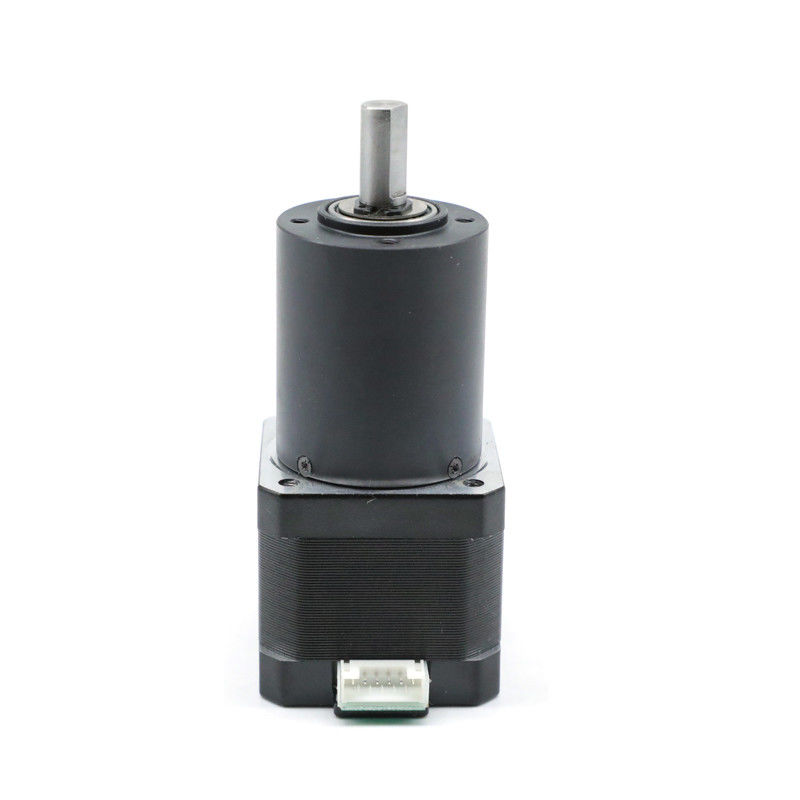

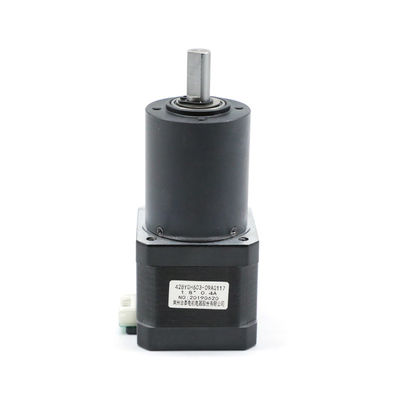

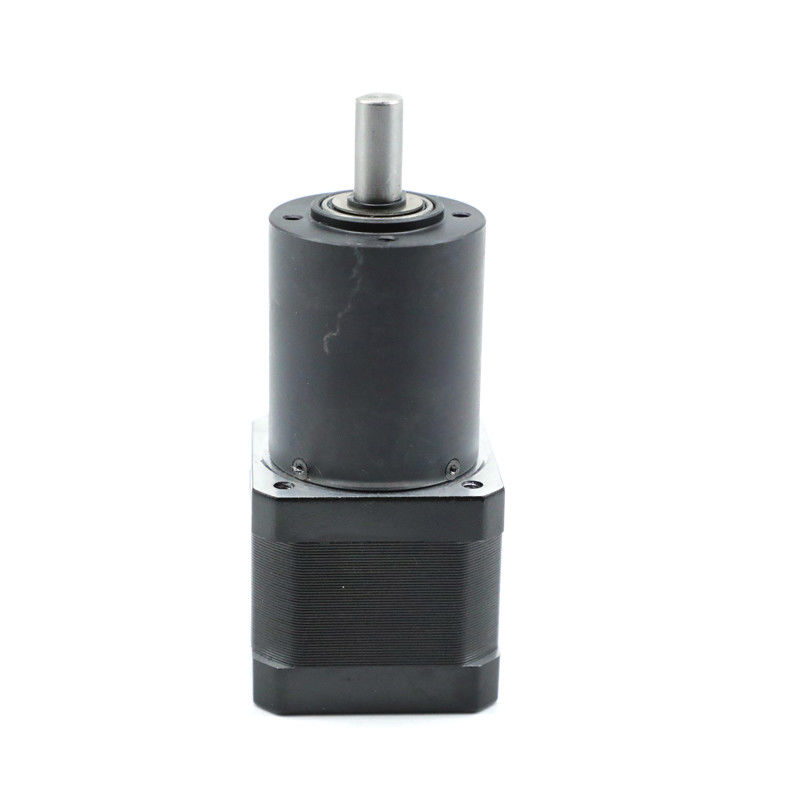

42BYGH603-09AG117 Low Noise 3.8 Kg.Cm Speed Reducer DC Planetary Stepping Gearbox Motor
| Model | Size | Weight(g) | Gearbox Diameter | Motor Weight(g) | Voltage(V) | Motor length(mm) | Step Angle Accuracy |
| 42BYGH603-07AG5 | 42*42*64.5 mm | 385 | 36mm | 385 | 12 | 64.5 | ±5% |
| 42BYGH603-08AG16 | 42*42*72.1 mm | 413 | 36mm | 413 | 12 | 72.1 | ±5% |
| 42BYGH603-10AG54 | 42*42*99.8 mm | 507 | 42mm | 507 | 12 | 99.8 | ±5% |
| 42BYGH603-09AG117 | 42*42*81.6 mm | 453 | 36mm | 453 | 12 | 81.6 | ±5% |
Planetary gearboxes are designed for a high proportion of input energy that helps seamlessly couple other gear arrangements.
Every component is designed to provide high stability in every aspect of the transmission system in a precise manner.
Electrical Specification
| STEP ANGLE | °/STEP | 1.8 |
| RATED VOLTAGE | V | 12 |
| CURRENT | A/PHASE | 0.4 |
| RESISTANCE | Ω/PHASE | 30 |
| INDUCTANCE | mH/PHASE | 65 |
| HOLDING TORQUE | Kg.cm | 3.8 |
| INSULATION CLASS | B | |
*Products can be customized by special request.
Wiring Diagram
Mechanical Dimension
GEARBOX Electrical Specification:
Out diameter 36mm Powder metallurgy
| Housing material | Bearing at output | Radial load(10mm from flange)N | Shaft axial load(N) | Shaft press-fit force max(N) | Radial play of shaft(mm) | Thrust play of shaft(mm) | Backlash at no-load (°) |
| Powder metallurgy | sleeve bearing | ≤120 | ≤80 | ≤500 | ≤0.03 | ≤0.1 | ≤1.5 |
| Reduction ratio | Rated tolerance torque (Nm) | Max momentary tolerance torque (Nm) | Efficiency% | Length (mm) | Weight(g) | Number of gear trains |
| 1/4 | 0.3 | 1.0 | 81% | 24.8 | 145 | 1 |
| 1/5 | ||||||
| 1/16 | 1.2 | 3.5 | 72% | 32.4 | 173 | 2 |
| 1/20 | ||||||
| 1/25 | ||||||
| 1/53 | 2.5 | 7.5 | 65% | 41.9 | 213 | 3 |
| 1/62 | ||||||
| 1/76 | ||||||
| 1/94 | ||||||
| 1/117 |
Mechanical Dimension
Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
