42mm Nema 17 Brushless DC Motor 3.5A 106W 8Pole 48V 3Phase 0.22Nm 4600RPM
Place of Origin | China |
---|---|
Brand Name | TB-Motor |
Certification | CE ROHS ISO |
Model Number | 42BLFX |
Minimum Order Quantity | 50 |
Price | USD |
Packaging Details | Carton with Inner Foam Box, Pallet |
Delivery Time | 28-31 DAYS |
Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability | 5000 PCS/MONTH |
Leave a Message
Product Details
Product Name | Brushless DC Motor | No Of Poles | 8 Poles |
---|---|---|---|
No.of Phase | 3 Phase | Power | 106W |
Winding Type | Star | Rated Voltage | 48V |
Max Axial Force | 10N | Hall Effect Angle | 120° Electrical Angle |
Insulation Class | B | MAX Radial Force | 28N (10mm From Front Flange) |
Dielectric Strength | 600VAC 1 Minute | Insulation Resistance | 100MΩ Min.500VC DC |
High Light | Nema 17 Brushless DC Motor 3.5A,42mm 8Pole Brushless DC Motor,Bldc Brushless Motor 4600RPM |
Product Description
42mm Nema 17 Brushless DC Motor 3.5A 106W 8Pole 48V 3Phase 0.22Nm 4600RPM
TB-Motor 3 phase Brushless DC motors have the following advantages:
Our motors have been processed with precision technology and repeatedly tested, and their service life is longer than that of ordinary motors.And our Brushless DC Motors have better performance with low maintenance.
The series of Bruhshless DC Motors has a wide range of speed and diameter from 22mm to 110mm with a hall sensor.
Encoder, brake or gearbox can be applied in our Brushless DC Motor to satisfy the customers’ needs.
Electrical Specification Of Brushless DC Motor
Specification | Unit | 42BLFX01 | 42BLFX02 |
Number Of Phases | Phase | 3 | 3 |
Number Of Poles | Poles | 8 | 8 |
Rated Voltage | VDC | 48 | 48 |
Rated Speed | Rpm | 4400 | 4600 |
Rated Current | A | 2.0 | 3.5 |
Rated Torque | N.m | 0.13 | 0.22 |
Rated Power | W | 60 | 106 |
Peak Torque | mN.m | 0.39 | 0.66 |
Peak Current | Amps | 6.0 | 10.5 |
Torque Constant | N.m/A | 0.064 | 0.063 |
Back EMF constant | V/kRPM | 6.7 | 7.1 |
Body Length | mm | 59.2 | 84.2 |
Weight | Kg | 0.39 | 0.59 |
You can download our 42BLFX Brushless DC Motor product brochure:42BLFX.pdf
ELECTRICAL CONNECTION TABLE | ||
FUNCTION | COLOR | |
+5V | RED | UL1007 26AWG |
HALL A | YELLOW | |
HALLB | GREEN | |
HALLC | BLUE | |
GND | BLACK | |
PHASE A | YELLOW | UL3265 22AWG |
PHASE B | GREEN | |
PHASE C | BLUE |

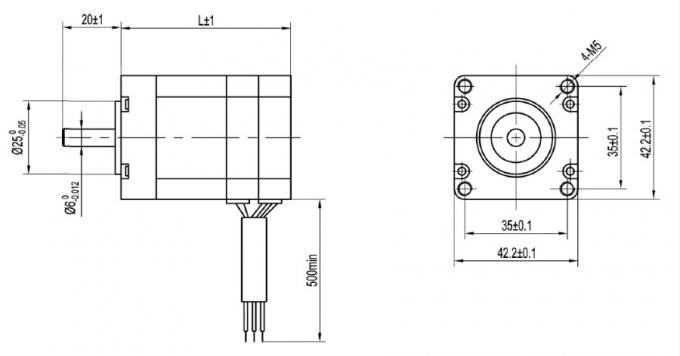

Mechanical Dimension Of Brushless DC Motor
Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Product Range Of TB-Motor
Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… TB-Motor also sends its products to USA, Europe, Southeast Asia and all-around China.
