42mm Nema 17 Brushless DC Motor 8Pole 24V 3Phase 0.188Nm 4000RPM
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 42BLF |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Brushless DC Motor | No Of Poles | 8 Poles |
|---|---|---|---|
| No.of Phase | 3 Phase | Power | 78W |
| Winding Type | Star | Rated Voltage | 24V |
| Max Axial Force | 10N | Hall Effect Angle | 120° Electrical Angle |
| Insulation Class | B | MAX Radial Force | 28N (10mm From Front Flange) |
| Dielectric Strength | 600VAC 1 Minute | Insulation Resistance | 100MΩ Min.500VC DC |
| High Light | 360W Frameless Servo Motor 1 nm,48v Servo Motor 1 nm 360W,High Precision Servo Motor 1nm | ||
Product Description
42mm Nema 17 Brushless DC Motor 8Pole 24V 3Phase 0.188Nm 4000RPM
Low Cogging for Accurate & Extremely Smooth Motion. High Mechanical Stiffness. Delivering Extremely Smooth Motion, Low Cogging & Low Torque Ripple.Request A Quote.View Products.Check Order Status.Models: Brushless DC Motor Series.
Innovative Motor Supplier High Quality Brushless DC Motors.High performance.Types: Automotive Motor, Gear Motor, Vacuum Cleaner Motor, Transaxle, Brushless Motor.
Different ranges of products are available to meet the design needs of many different mechanical systems in a
host of different applications. Other more bespoke adaptations can be developed upon request.
Electrical Specification Of Brushless DC Motor
| Model | ||||
| Specification | Unit | 42BLF01 | 42BLF02 | 42BLF03 |
| Number Of Phases | Phase | 3 | ||
| Number Of Poles | Poles | 8 | ||
| Rated Voltage | VDC | 24 | ||
| Rated Speed | Rpm | 4000 | ||
| Rated Current | A | 1.5 | 3.1 | 4.17 |
| Rated Torque | N.m | 0.063 | 0.130 | 0.188 |
| Rated Power | W | 26 | 54 | 78 |
| Peak Torque | mN.m | 0.189 | 0.390 | 0.560 |
| Peak Current | Amps | 4.5 | 9.3 | 12.5 |
| Torque Constant | N.m/A | 0.042 | 0.042 | 0.045 |
| Body Length | mm | 47 | 63 | 79 |
| Weight | Kg | 0.30 | 0.45 | 0.60 |
You can download our 42BLF Brushless DC Motor product brochure:42BLF.pdf
| ELECTRICAL CONNECTION TABLE | ||
| FUNCTION | COLOR | |
| +5V | RED | UL1007 26AWG |
| HALL A | YELLOW | |
| HALL B | GREEN | |
| HALL C | BLUE | |
| GND | BLACK | |
| PHASE A | YELLOW | UL3265 22AWG |
| PHASE B | GREEN | |
| PHASE C | BLUE | |

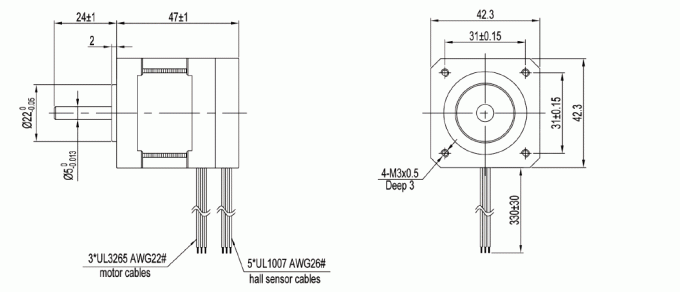

Mechanical Dimension Of Brushless DC Motor
Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Product Range Of TB-Motor
Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… TB-Motor also sends its products to USA, Europe, Southeast Asia and all-around China.
