42mm Nema 17 Stepper Motor 12v Or 24v DC 0.25nm 222 Oz In For 3d Printer 42BYGH208-51

Place of OriginChina
Brand NameTB-Motor
CertificationCE ROHS ISO
Model Number42BYGH208-51
Minimum Order Quantity50
PriceUSD
Packaging DetailsCarton with Inner Foam Box, Pallet
Delivery Time25 DAYS
Payment TermsL/C, D/P, T/T, Western Union, MoneyGram
Supply Ability10000 PCS/MONTH
GET AN ESTIMATE NOW

Leave a Message

Product Details

Product NameHybrid Stepping MotorStep Accuracy± 5%
Temperature Rise80 ℃ MaxHolding Torque0.25Nm
Insulation Resistance100MΩ Min.500VC DCAmbient Temperature-20℃~+50℃
Resistance30ΩDielectric Strength500VAC 1 Minute
Max Radial Force28N (20mm From Front Flange)Max Axial Force10N
High Light
nema 17 stepper motor 12v or 24v,42mm 12v nema 17 two phase stepper motor,42mm 12v nema 17



Product Description

42BYGH208-51 High Efficiency Factory Direct Supply DC Nema 17 Stepping Motor 12V



The Industrial applications of stepping motor include high speed pick and place equipment and multi-axis CNC machines, often directly driving lead screws or ballscrews. In the field of optics they are frequently used in precision positioning equipment such as linear actuators, linear stages, rotation stages, goniometers, and mirror mounts. Other uses are in packaging machinery, and positioning of valve pilot stages for fluid control systems. Commercially, stepper motors are used in floppy disk drives, flatbed scanners, computer printers, plotters, slot machines, image scanners, compact disc drives and many more devices

Electrical Specification:



Model Number
42BYGH208-51
Step Accuracy
± 5%
Step Angle
1.8°
Lead Wire
4
Voltage (V)
12
Current (A/Phase)
0.4
Holding Torque (N.m)
0.25
Resistance (Ω/phase)30
Inductance (mH/phase)42
Motor length (MM)34
Motr Weight(K/g)0.2
Insulation ClassB

*Products can be customized by special request.



*Wiring Diagram
42mm Nema 17 Stepper Motor 12v Or 24v DC 0.25nm 222 Oz In For 3d Printer 42BYGH208-51 0
*Mechanical Dimension
42mm Nema 17 Stepper Motor 12v Or 24v DC 0.25nm 222 Oz In For 3d Printer 42BYGH208-51 1
Specification of Other Models:
MODELSTEP ANGLE
(°/STEP)
LEAD WIRE
(NO.)
VOLTAGE
(V)
CURRENT
(A/PHASE)
RESISTANCE
(Ω/PHASE)
INDUCTANCE
(MH/PHASE)
HOLDING TORQUE
(G.CM)
MOTOR HEIGHT
L(MM)
MOTOR WEIGHT
(KG)
42BYGH208-52A1.84120.430422500340.20
42BYGH243-031.842.612.63.21800340.20
42BYGH622-28A1.844.814.86.02900400.24
42BYGH613-68A1.842.51.71.52.53500400.24
42BYGH705-071.84120.340804000440.30
42BYGH721A1.86100.2540362000440.30
42BYGH801-361.86120.430223800480.34
42BYGH872A1.842.81.71.652.84500480.34
42BYGH910-021.845.11.53.48.08500600.49
42BYGH905-131.843.151.52.15.06800600.49

*Products can be customized by special request.

*Produdts can match gearbox 36.42

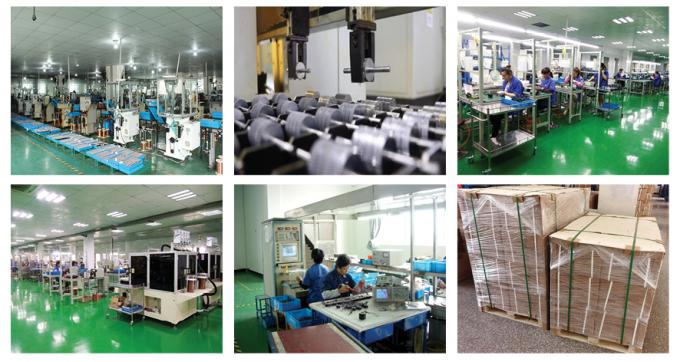

Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… TB-Motor also sends its products to USA, Europe, Southeast Asia and all-around China.

pl105459856 remark

42mm Nema 17 Stepper Motor 12v Or 24v DC 0.25nm 222 Oz In For 3d Printer 42BYGH208-51 3



FAQ



1. Are you a factory?

Yes, we are a factory. Our brand name TB-Motor is a well-known micro motor manufacturer for more than 20 years in

China. Main products including hybrid stepper motor, brushless DC motor, servo motor, and planetary gearbox.



2. Can I test the sample?

Yes, samples and freight are charged.



3. Can I get a Customized product?

Sure, all the products can be customized based on special requests.



4. How do you ship the goods?

We normally ship goods by express(DHL/UPS/FEDEX/TNT), by sea and by air, also accept freight forwarder.



5. What are the payment terms?

T/T(bank transfer), Paypal(0.5% paypal charges), ALIBABA assurance order accept



6. Is this your final price? May I have the discount?

Our price is the factory price. If you have a large quantity, we can negotiate about the discount.



7. What is the Warranty for your products?

Our warranty is for one year. If any quality problems occurred on our side during this period, we will take on the shipping cost and replacement. please note damage caused by improper use of the product is not covered by the warranty.
