42mm Nema17 Integrated Stepper Motor 4 Wires 1.8 Step Angle
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 42BYGH |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Integrated Stepper Motor | Step Angle | 1.8 ° |
|---|---|---|---|
| Hoiding Torque | 4.5 Kg.cm | Resistance | 1.65 Ω/phase |
| Induction | 2.8 MH/Phase | Step Accuracy | ± 5% |
| Temperature Rise | 80 ℃ Max | Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100MΩ Min.500 VDC | Dielectric Strength | 500VAC 1 Minute |
| High Light | 1.8 Step Angle Integrated Stepper Motor,42mm Integrated Stepper Motor,4 Wires Nema17 Stepper Motor | ||
Product Description
Factory Price 42mm Nema17 Integrated Stepper Motor 4 Wires 1.8 Step Angle
The Integrated Stepper Motor is a very economical motion control system because of its built-in microstep controller and driver electronics that are integrated into the assembly. The Integrated Stepper Motor series takes the guesswork out of stepper motor and driver compatibility. Integrated Stepper Motors, drivers and controllers are available in NEMA sizes 17 and 23, with torque ratings from 31 to 425 ounce inches. High torque stepper motors are used in the Integrated Stepper Motor series offer 1.8 degree step angle with stack lengths of 1/2, 1, 2, or 3, providing for a wide range of start-up torque and intertia. If you need modifications done on your stepper motor windings, shaft modifications and encoder adders are available for remote monitoring of position.
Electrical characteristics
| Explanation | IO42 | |||
| Minimum Value | Typical Value | Maximal Value | Unit | |
| Continuous output current | 0.5 | – | 2.2 | A |
| Power Supply Voltage (DC) | 15 | 24 | 32 | Vdc |
| Control signal input current | 6 | 10 | 16 | mA |
| Control signal input current | – | 5 | – | Vdc |
| Minimum time width of pulse high level | 1.5 | – | – | US |
| Overvoltage point | 35 | Vdc | ||
| Step frequency | 0 | – | 200 | KHz |
| Insulation Resistance | 100 | MΩ | ||
Motor Electrical Specification
| Model Number | 42BYGH |
| Step Accuracy | ± 5% |
| Step Angle | 1.8° |
| Lead Wire | 4 |
| Rated Voltage (V) | 2.8 |
| Current (A/Phase) | 1.7 |
| Holding Torque (Kg.cm) | 4.5 |
| Resistance (Ω/phase) | 1.65 |
| Inductance (mH/phase) | 2.8 |
| Motor length (MM) | 69 |
| Motor Weight(Kg) | 1.0 |
| Insulation Class | B |

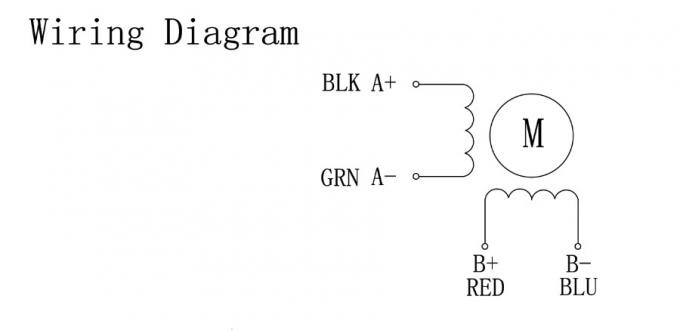

Wiring Diagram

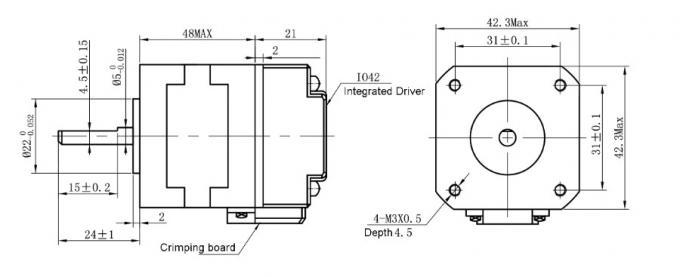

Mechanical Dimension Of Integrated Stepper Motor
TB-Motor also sends its products to the USA, Europe, Southeast Asia, and all-around China.
Product Range Of TB-Motor
Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.
Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Assembly Line Of Stepper Motor
Stator Winding Machine
Packing&Delivery
