57BL03X-001 Nema23 24V Brushless Dc Motor Integrated 57mm 3500rpm 0.18N.M

Place of OriginChina
Brand NameTB-Motor
CertificationCE ROHS ISO
Model Number57BL03X-001
Minimum Order Quantity50
PriceUSD
Packaging DetailsCarton with Inner Foam Box, Pallet
Delivery Time28-31 DAYS
Payment TermsL/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability5000 PCS/MONTH
GET AN ESTIMATE NOW

Leave a Message

Product Details



Product NameBrushless DC MotorNo Of Poles4 Poles
No.of Phase3 PhaseRated Torque0.18N.m
Power66WRated Voltage24V
Max Axial Force10NWinding TypeStar
Hall Effect Angle120° Electrical AngleMAX Radial Force28N (10mm From Front Flange)
Dielectric Strength600VAC 1 MinuteInsulation Resistance100MΩ Min.500VC DC
High Light
24V Brushless Dc Motor 57mm,Brushless Dc Motor 3500rpm,Nema23 Motor Brushless 24v

Product Description



57BL03X-001 nema23 57mm 3500rpm 0.18N.m 24V burshless dc motor with integrated motor

Low Cogging for Accurate & Extremely Smooth Motion. High Mechanical Stiffness. Delivering Extremely Smooth Motion, Low Cogging & Low Torque Ripple.Request A Quote.View Products.Check Order Status.Models: Brushless DC Motor  Series.
Innovative Motor Supplier High Quality Brushless DC Motors.High performance.Types: Automotive Motor, Gear Motor, Vacuum Cleaner Motor, Transaxle, Brushless Motor.
Different ranges of products are available to meet the design needs of many different mechanical systems in a
host of different applications. Other more bespoke adaptations can be developed upon request.



Electrical Specification Of Brushless DC Motor

Product Name:
Brushless Motor
Dielectric Strength:
500V AC 1minute
Ambient Temperature:
-20℃~50℃
Insulation resistance:
100MΩ Min.500V DC
Voltage(VDC):
24(VDC)
Power(W):
66
Rated Speed(RPM):
3500
Rated Torque(N.M):
0.18
Rated Current(A):
1

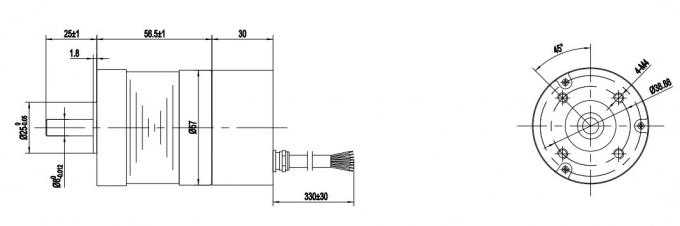

Mechanical Dimension Of Brushless DC Motor

57BL03X-001 Nema23 24V Brushless Dc Motor Integrated 57mm 3500rpm 0.18N.M 1





Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.


Product Range Of TB-Motor
pl105459856 remark

Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… TB-Motor also sends its products to USA, Europe, Southeast Asia and all-around China.

57BL03X-001 Nema23 24V Brushless Dc Motor Integrated 57mm 3500rpm 0.18N.M 4
