57BL643-001AG125 Nema23 Brushless Gearbox Motor 24V 125:1 38N.M 30rpm

Place of Origin	China
Brand Name	TB-Motor
Certification	CE ROHS ISO
Model Number	57BL643-001AG125
Minimum Order Quantity	50
Price	USD
Packaging Details	Carton with Inner Foam Box, Pallet
Delivery Time	28-31
Payment Terms	L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability	5000pcs/month

GET AN ESTIMATE NOW

Product Details

Product Name	Gearbox Brushless Motor	Nominal Voltage	24 V
Rated Speed With Gearbox	30 RPM	No-load Current	1.5 A
Rated Torque	38 N.M	Reduction Ratio	1:125
Resistance	0.25Ω	Winding Type	Star
Dielectric Strength	500V AC 1 Minute	Certification	CE ROHS ISO
High Light	Nema23 Brushless Gearbox Motor,Brushless Gearbox Motor 30rpm,Gearbox Brushless Motor 24V 38N.M

Product Description

57BL643-001AG125 Nema23 Brushless Gearbox Motor 24V 125:1 reduction ratio 38N.m 30rpm

Advantages of brushless geared motors:

1. Brushless, low interference

The brushless motor removes the brush, and the most direct change is that there is no electric spark generated when the brushed motor is running, which greatly reduces the interference of electric sparks on remote control radio equipment.

2. Low noise and smooth operation

There are no brushes in the brushless motor, the friction force is greatly reduced during operation, the operation is smooth, and the noise will be much lower. This advantage is a huge support for the stability of the model operation.

3. Long service life and low maintenance cost

Without the brushes, the wear of the brushless motor is mainly on the bearings. From a mechanical point of view, the brushless motor is almost a maintenance-free motor. When necessary, it only needs to do some dust removal maintenance.
With the downward trend of the cost of brushless controllers and the development and market competition of brushless technology at home and abroad, the brushless power system is in the stage of rapid development and popularization, which also greatly promotes the development of domestic brushless motors.

Electrical Specification:

Product Name	Brushless Gearbox Motor
Model	57BL643-001AG125
Reduction Ratio	1:125
Voltage (V)	24 V
Rated Speed with gearbox (RPM)	30
Rated Torque with gearbox (N.M)	38
Power (W)	119
Insulation class	B

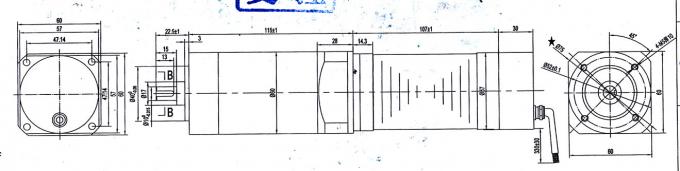

Mechanical Dimension

High-quality Raw Materials

Brushless Motor Final Inspection


Measure the Motor Length	Measure the Shaft Length	Measure the Ouler Circle

Measure the Screw Hole Distance	Measure the Length of Wire	Measure the Length of PVC

Test the Resistance	Listening	Test the speed
