57BLF04A-001 Nema23 High Effciency Low Noise 36v Dc Motor Brushless Bldc Motor
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 57BLF04A-001 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Brushless DC Motor | Number Of Poles | 8 Poles |
|---|---|---|---|
| Number Of Phase | 3 Phase | Rated Torque | 0.8N.M |
| Rated Voltage | 36V | Rated Current | 8.87A |
| Rated Power | 251W | Rated Speed | 3000RPM |
| Winding Type | Star | Insulation Class | B |
| High Light | Low Noise 36v Dc Motor Brushless,Nema23 36v Dc Motor Brushless,ROHS Nema23 Bldc Motor | ||
Product Description
Factory sale 57BLF04A-001 nema23 high effciency low noise 36v dc motor brushless bldc motor
The 57BL series, is one of the most regular brushless motors applied in the automation industry.
Brushless motors have significantly higher efficiency and performance and lower susceptibility to mechanical wear than their brushed counterparts.
As their name implies, brushless DC motors do not use brushes. With brushed motors, the brushes deliver current through the commutator into the coils on the rotor. So how does a brushless motor pass current to the rotor coils? It doesn’t—because the coils are not located on the rotor. Instead, the rotor is a permanent magnet; the coils do not rotate, but are instead fixed in place on the stator. Because the coils do not move, there is no need for brushes and a commutator.
Electrical Specification Of Brushless DC Motor
Product Name: | Brushless Motor |
Dielectric Strength: | 500V AC 1minute |
Ambient Temperature: | -20℃~50℃ |
Insulation resistance: | 100MΩ Min.500V DC |
Voltage(VDC): | 36(VDC) |
Power(W): | 251 |
Rated Speed(RPM): | 3000 |
Rated Torque(N.M): | 0.8 |
Rated Current(A): | 8.87 |

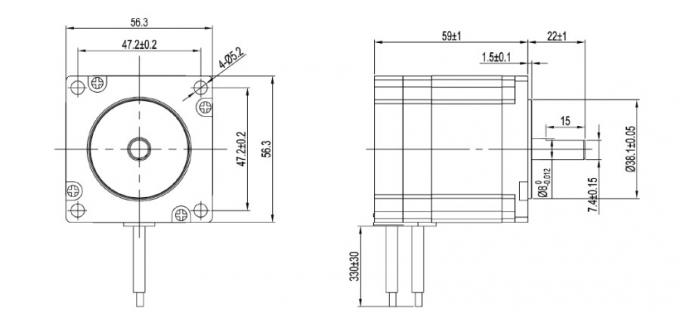

Mechanical Dimension Of Brushless DC Motor
Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Product Range Of TB-Motor
Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… TB-Motor also sends its products to USA, Europe, Southeast Asia and all-around China.
CNC Center Of TB-Motor
Packing&Delivery
