57BYGH Nema 23 Linear Actuator With Stepper Motor

Place of Origin	China
Brand Name	TB-Motor
Certification	CE ROHS ISO
Model Number	57BYGHL
Minimum Order Quantity	50
Price	USD
Packaging Details	Carton with Inner Foam Box, Pallet
Delivery Time	28-31
Payment Terms	L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability	10000 pcs/month

GET AN ESTIMATE NOW

Product Details

Product Name	Linear Stepper Motor	Step Angle	1.8 °
Step Accuracy	± 5%	Temperature Rise	80 ℃ Max
Ambient Temperature	-20℃~+50℃	Insulation Resistance	100MΩ Min.500VC DC
Dielectric Strength	500VAC 1 Minute	MAX Radial Force	75N (10mm From Front Flange)
MAX Axial Force	15N
High Light	Small Linear Stepper Motor,Motorized Lead Screw Actuator,Nema Linear Actuator

Product Description

57BYGHL series NEMA 23 1.8 degree high torque linear step motor

The Features of the linear step motor

Engineers most commonly use these linear actuators in larger installations; on axes that move heavier loads, and in high-end medical or material-handling applications such as pick-and-place machinery that require extremely high precision. Like rotary equivalents, linear stepper motors either use a variable reluctance (just described) or a hybrid mode of operation. A hybrid linear-stepper platen is like that of a variable-reluctance linear stepper. In contrast, the forcer has multiple permanent magnets, magnetic U-shaped cores (with coils around them), and a steel yoke.

Electrical Specification

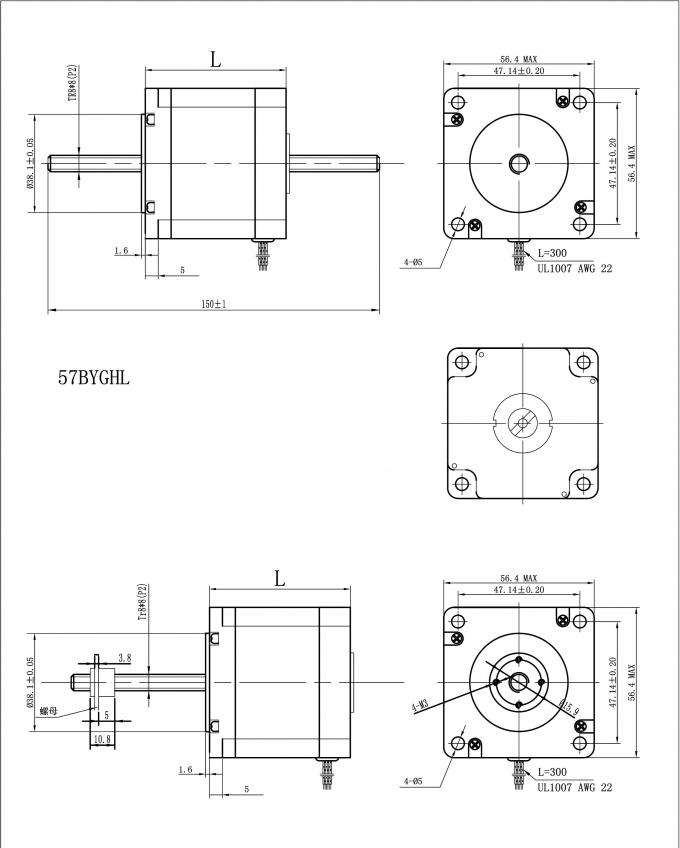

MODEL	STEP ANGLE (°/STEP)	LEAD WIRE (NO.)	VOLTAGE (V)	CURRENT (A/PHASE)	RESISTANCE (Ω/PHASE)	INDUCTANCE (MH/PHASE)	HOLDING TORQUE (KG.CM)	MOTOR HEIGHT L(MM)	MOTOR WEIGHT (KG)
57BYGHL013-15	1.8	4	2.7	1.5	1.8	4.0	4.0	41	0.45
57BYGHL216-10	1.8	4	3.3	1.7	1.95	6.0	10.0	51	0.65
57BYGHL401-03	1.8	4	6.0	0.6	10.0	32.0	9.0	56	0.70
57BYGHL602-07	1.8	4	10.4	0.8	13.0	42.0	19.8	78	1.00
57BYGHL815-01	1.8	4	7.36	1.6	4.6	16.0	20.0	84	1.13
