57BYGH443-XXB Integrated Stepper Motor With Driver Open Loop Or Closed Loop Control
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 57BYGH443-XXB |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Hybrid Stepper Motor | Step Angle | 1.8 ° |
|---|---|---|---|
| Lead Wire | 4 | Rated Voltage | 1.68V |
| Rated Current | 4.2A | Resistance | 0.4Ω |
| Inductance | 1.3mH | Holding Torque | 1.5 Kg.cm |
| Motor Height | 99 Mm | Motor Weight | 0.85 Kg |
| High Light | 57BYGH443-XXB Stepper Motor,1.5Kg.cm Integrated Stepper Motor,99mm Driver Integrated Stepper Motor | ||
Product Description
57BYGH443-XXB integrated stepper motor with driver open-loop or closed-loop control with 485 communication
The integrated stepping system is composed of stepping motor, feedback system (optional), drive amplifier, motion controller and other subsystems. If the user’s host computer (PC, PLC, etc.) is compared to the company boss, the motion controller is the executive, the drive amplifier is the mechanic, and the stepper motor is the machine tool. The boss coordinates cooperation among several executives through some form of communication/protocol (telephone, telegram, email, etc.).
Electrical Specification Of Hybrid Stepper Motor
Product Name | |
Step Accuracy | ± 5% |
Dielectric Strength | 500V AC 1minute |
Ambient Temperature | -20℃~50℃ |
Insulation resistance | 100MΩ Min.500VDC |
Step Angle | 1.8° |
Lead wire | 4 |
Voltage (V) | 1.68 |
Current (A/Phase) | 4.2 |
Holding Torque (Kg.cm) | 0.85 Kg.cm |

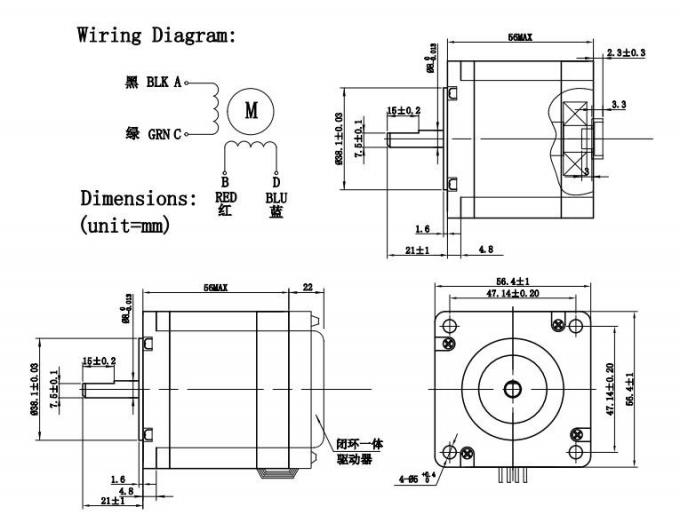

Mechanical Dimension Of Hybrid Stepper Motor
Driver with 485 communication
| Explanation | IRC57N | |||
| Minimum Value | Typical Value | Maximal Value | Unit | |
| Continuous output current | 0.7 | 4 | 6.0 | A |
| Power supply voltage (DC) | 15 | 24 | 50 | Vdc |
| control method | RS485 communication fully isolated electrical module design | |||
| RS485 communication frequency communication | Up to 1MHz, recommended within 200KHz | |||
| Left and right limit control signal input current
| 6 | 10 | 16 | mA |
| Left and right limit control signal input voltage, need 24V, . A 2KΩ/1W resistor can be connected in series with the common terminal of the common anode
| – | 5 | – | Vdc |
| Control signal pulse high level minimum time width | 1.5 | – | – | US |
| overvoltage point | 55 | Vdc | ||
| Insulation resistance | 100 | MΩ | ||
Driver usage environment
| Cooling Mode | Natural cooling or forced air cooling | |
| Use environment
| Occasion
| Do not place it next to other heat-generating equipment. Avoid dust, oil mist, and corrosive gases. In places with high humidity and strong vibration, combustible gas and conductive dust are prohibited. |
| Temperature | -10℃ ～ +50℃ | |
| Humidity | 40 ～ 90%RH | |
| Vibration | 5.9m/s2MAX | |
| Storage temperature | -20℃～60℃ | |
| Use Elevation | Below 1000 meters | |
| Weight | 1-2KG | |
