57BYGH636-XXXBE Integrated Stepper Motor With 485 Communication Nema23 Hybrid
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 57BYGH636-XXXBE |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Hybrid Stepper Motor | Step Angle | 1.8 ° |
|---|---|---|---|
| Lead Wire | 4 | Rated Voltage | 2.52 V |
| Rated Current | 4.2A | Resistance | 0.6Ω |
| Inductance | 1.8mH | Holding Torque | 21 Kg.cm |
| Motor Height | 121 Mm | Motor Weight | 0.9 Kg |
| High Light | 57BYGH636 Stepper Motor,Hybrid Nema23 Integrated Stepper Motor,4.2A Nema23 Stepper Motor | ||
Product Description
XXXBE – New product Hetai 57BYGH636-XXXBE integrated stepper motor with 485 communication nema23 hybrid stepper motor with drive
Advantages of integrated xxxbe closed-loop stepper motor:
Compact structure, small size, and because the driver and motor are integrated, it saves the connection between the driver and the motor, effectively reduces the interference caused by the motor cable, and reduces the electromagnetic interference between the lines; adopts better vibration technology and low heat generation The technology effectively solves the problems of heating, vibration and noise of the motor and driver.
Electrical Specification Of XXXBE Hybrid Stepper Motor
Product Name | |
Step Accuracy | ± 5% |
Dielectric Strength | 500V AC 1minute |
Ambient Temperature | -20℃~50℃ |
Insulation resistance | 100MΩ Min.500VDC |
Step Angle | 1.8° |
Lead wire | 4 |
Voltage (V) | 2.52 |
Current (A/Phase) | 4.2 |
Holding Torque (Kg.cm) | 0.9 Kg.cm |
Driver with 485 communication
| Explanation | IRC57N | |||
| Minimum Value | Typical Value | Maximal Value | Unit | |
| Continuous output current | 0.7 | 4 | 6.0 | A |
| Power supply voltage (DC) | 15 | 24 | 50 | Vdc |
| control method | RS485 communication fully isolated electrical module design | |||
| RS485 communication frequency communication | Up to 1MHz, recommended within 200KHz | |||
| Left and right limit control signal input current
| 6 | 10 | 16 | mA |
| Left and right limit control signal input voltage, need 24V, . A 2KΩ/1W resistor can be connected in series with the common terminal of the common anode
| – | 5 | – | Vdc |
| Control signal pulse high level minimum time width | 1.5 | – | – | US |
| overvoltage point | 55 | Vdc | ||
| Insulation resistance | 100 | MΩ | ||
Driver usage environment
| Cooling Mode | Natural cooling or forced air cooling | |
| Use environment
| Occasion
| Do not place it next to other heat-generating equipment. Avoid dust, oil mist, and corrosive gases. In places with high humidity and strong vibration, combustible gas and conductive dust are prohibited. |
| Temperature | -10℃ ～ +50℃ | |
| Humidity | 40 ～ 90%RH | |
| Vibration | 5.9m/s2MAX | |
| Storage temperature | -20℃～60℃ | |
| Use Elevation | Below 1000 meters | |
| Weight | 1-2KG | |

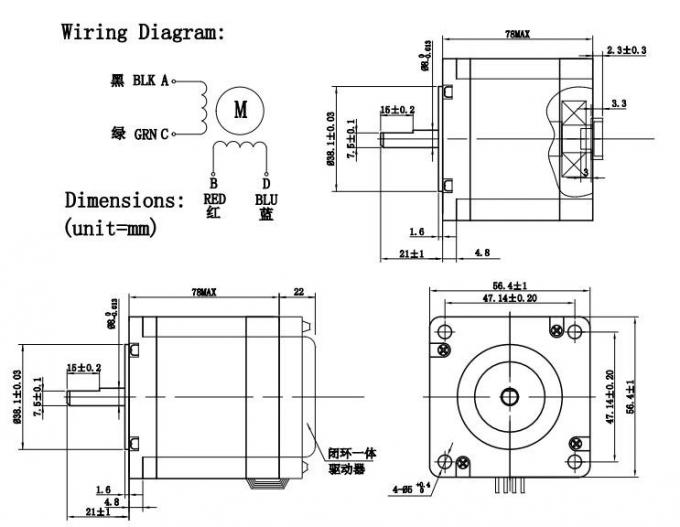

Mechanical Dimension Of Hybrid Stepper Motor
