57BYGN Series Hybrid Stepper Motor 12v Dc Stepping Motor

Place of Origin	China
Brand Name	TB-Motor
Certification	CE ROHS ISO
Model Number	57BYGN001
Minimum Order Quantity	50
Price	USD
Packaging Details	Carton with Inner Foam Box, Pallet
Delivery Time	28-31 DAYS
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	5000 PCS/MONTH

GET AN ESTIMATE NOW

Product Details

Product Name	Hybrid Stepper Motor	Step Angle	1.8 °
Lead Wire	6	Rated Voltage	12V
Resistance	32Ω	Holding Torque	3.0 Kg.cm
Rated Current	0.38A	Inductance	25mH
Motor Height	41 Mm	Motor Weight	0.45 Kg
High Light	57BYGN Series Hybrid Stepper Motor,12v Dc Hybrid Stepping Motor,57BYGN001 Hybrid Stepper Motor

Product Description

Factory direct sale 57BYGN series high quality hybrid stepper motor 12v dc stepping motor

What are stepper motors good for?
Positioning – Since steppers move in precise repeatable steps, they excel in applications requiring precise positioning such as 3D printers, CNC, Camera platforms and X,Y Plotters. Some disk drives also use stepper motors to position the read/write head.
Speed Control – Precise increments of movement also allow for excellent control of rotational speed for process automation and robotics.
Low Speed Torque – Normal DC motors don’t have very much torque at low speeds. A Stepper motor has maximum torque at low speeds, so they are a good choice for applications requiring low speed with high precision.

Electrical Specification Of Hybrid Stepper Motor

Product Name	Hybrid Stepper Motor
Step Accuracy	± 5%
Dielectric Strength	500V AC 1minute
Ambient Temperature	-20℃~50℃
Insulation resistance	100MΩ Min.500V DC
Step Angle	1.8°
Lead wire	6
Voltage (V)	12
Current (A/Phase)	0.38
Holding Torque (Kg.cm)	3.0 Kg.cm

57BYGN Series Hybrid Stepper Motor 12v Dc Stepping Motor 0

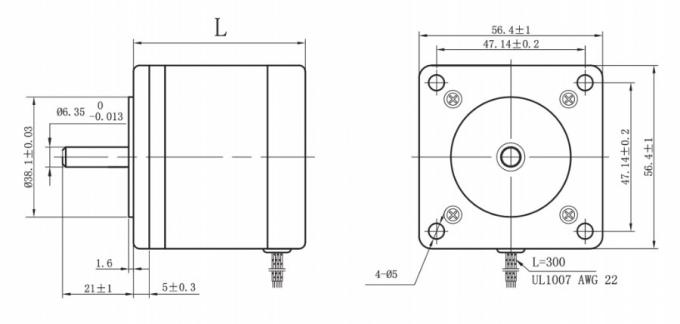

Mechanical Dimension Of Hybrid Stepper Motor

Product Range Of TB-Motor

Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.

Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well
