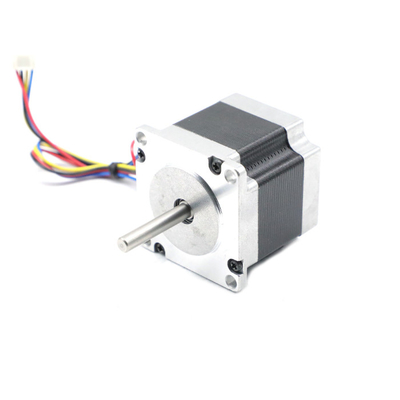

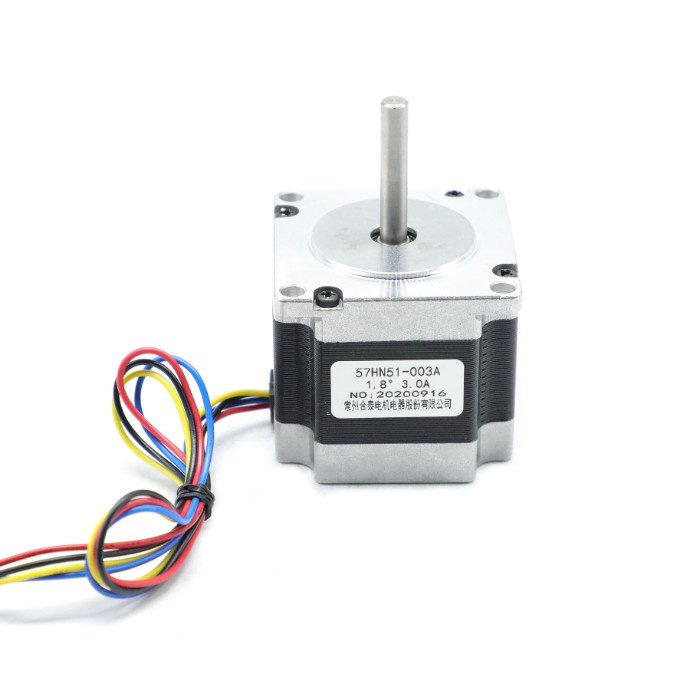

57HN51-003A Nema23 Stepping Motor Hybrid Stepper Motor 9.5 Kg.cm
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 57HN51-003A |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Hybrid Stepper Motor | Step Angle | 1.8 ° |
|---|---|---|---|
| Lead Wire | 4 | Rated Voltage | 1.5V |
| Rated Current | 3.0A | Resistance | 0.5Ω |
| Inductance | 1.4mH | Holding Torque | 9.5 Kg.cm |
| Motor Height | 51 Mm | Motor Weight | 0.63 Kg |
| High Light | 9.5 Kg.cm Stepping Motor,1.5v Nema23 Stepping Motor,ROHS Hybrid Stepper Motor | ||
Product Description
Hetai hot sale 57HN51-003A stepping motor high quality low price nema23 hybrid stepper motor
What is a Hybrid Stepper Motor?
A hybrid stepper motor is a combination of the variable reluctance and permanent magnet type motors. The rotor of a hybrid stepper motor is axially magnetized like a permanent magnet stepper motor, and the stator is electromagnetically energized like a variable reluctance stepper motor. Both the stator and rotor are multi-toothed.
A hybrid stepper motor has an axially magnetized rotor, meaning one end is magnetized as a north pole, and the other end a south pole. Toothed rotor cups are placed on each end of the magnet, and the cups are offset by half of a tooth pitch.
Electrical Specification Of Hybrid Stepper Motor
Product Name | Hybrid Stepper Motor |
Step Accuracy | ± 5% |
Dielectric Strength | 500V AC 1minute |
Ambient Temperature | -20℃~50℃ |
Insulation resistance | 100MΩ Min.500VDC |
Step Angle | 1.8° |
Lead wire | 4 |
Voltage (V) | 1.5 |
Current (A/Phase) | 3.0 |
Holding Torque (Kg.cm) | 9.5 Kg.cm |
Mechanical Dimension Of Hybrid Stepper Motor
Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Product Range Of TB-Motor
Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… TB-Motor also sends its products to USA, Europe, Southeast Asia and all-around China.
Different reduction gearboxs
CNC Center
Packing&Delivery
Strictly palletizing and packaging to ensure that the motor will be delivered to the customer in good condition.
