57mm 57BYGH601-05AG6 Nema23 1.8 Degree Low Speed Customizable Stepper Gearbox Motor

Place of Origin	China
Brand Name	TB-Motor
Certification	CE ROHS ISO
Model Number	57BYGH601-05AG6
Minimum Order Quantity	50
Price	USD
Packaging Details	Carton with Inner Foam Box, Pallet
Delivery Time	28-31 DAYS
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	5000 PCS/MONTH

GET AN ESTIMATE NOW

Product Details

Product Name	Gearbox Stepper Motor	Stepper Angel	1.8
Rated Voltage	12V	Rated Current	0.75A
Holding Torque	17 Kg.cm	Resistance	16 Ohms
Phase	2	Insulation Class	B
Step Angle Accuracy	±5%	Step Angle	1.8
High Light	57mm Low Speed Stepper Gearbox Motor,Nema23 1.8Degree Stepper Gearbox Motor,Customizable Gearbox Stepper Motor

Product Description

57mm 57BYGH601-05AG6 nema23 1.8 degree low speed customizable stepper gearbox motor

Application of deceleration stepper motor
1. Increase the working torque of the motor and reduce the flange size;
2. Increase the moment of inertia of the motor and improve the start-stop rigidity of the motor;
3. Improve the resolution of stepper motor;
4. Avoid the speed resonance area of the stepping motor.

Electrical Specification Of Gearbox Stepper Motor

Model	57BYGH601-05AG6
Step Angle (°/Step)	1.8
Lead Wire	4
Voltage (V)	12
Current(A/Phase)	0.75
Resistance	16
Inductance (mH/Phase)	58
Holding Torque with gearbox (N.m)	17

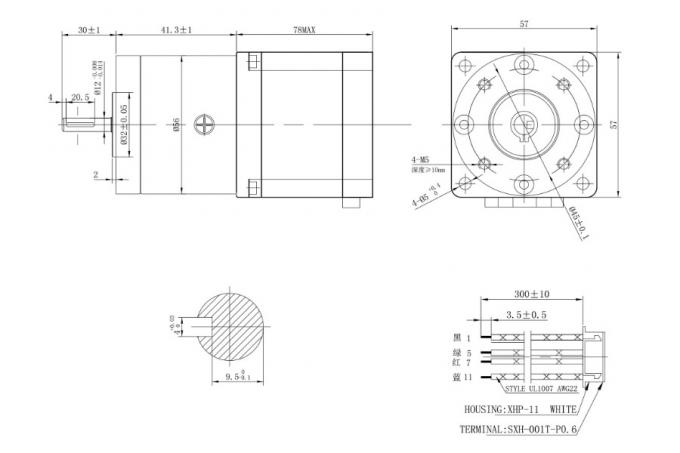

Mechanical Dimension Of Gearbox Stepper Motor

Experienced Manufacturer

Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

Product Range Of TB-Motor

Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… TB-Motor also sends its products to USA, Europe, Southeast Asia and all-around China.
