57mm Nema 23 Stepper Motor 0.9 Degree High Torque 1.76 Nm 17 Kg Cm 4 Wire
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 57BYGHM607-02 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 25 DAYS |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Hybrid Stepping Motor | Insulation Resistance | 100MΩ Min.500VC DC |
|---|---|---|---|
| Resistance | 7.4Ω | Ambient Temperature | -20℃~+50℃ |
| Step Accuracy | ± 5% | Dielectric Strength | 500VAC 1 Minute |
| Temperature Rise | 80 ℃ Max | Max Radial Force | 75N (20mm From Front Flange) |
| Max Axial Force | 15N | Holding Torque | 1.76 N.m |
| High Light | motor nema 23 57mm high torque stepper motors,nema 23 high torque hybrid stepper motor,0.9 degree nema 23 | ||
Product Description
57BYGHM607-02 CE ROHS ISO New Type High Torque Nema 23 Micro Stepper Motor DC
Warranty:
1 year
Place of Origin:
Changzhou, China
Brand Name:
Hetai
Certification:
CE, RoHS, ISO
Type:
Stepper motor
Torque:
1.76 N.m
Construction:
Electro-Magnetism
Product Feature:
0.9-degree step angle
IP level:
IP 40
Electrical Specification
Model Number | 57BYGHM607-02 |
Step Accuracy | ± 5% |
Step Angle | 0.9° |
Lead Wire | 4 |
Voltage (V) | 5.6 |
Current (A/Phase) | 3 |
Holding Torque (N.m) | 1.76 |
| Resistance (Ω/phase) | 1.88 |
| Inductance (mH/phase) | 9.6 |
| Motor length (MM) | 78 |
| Motor Weight(Kg) | 1 |
| Insulation Class | B |
*Products can be customized by special request.
Wiring Diagram
| MODEL | STEP ANGLE (°/STEP) | LEAD WIRE (NO.) | VOLTAGE (V) | CURRENT (A/PHASE) | RESISTANCE (Ω/PHASE) | INDUCTANCE (MH/PHASE) | HOLDING TORQUE (KG.CM) | MOTOR HEIGHT L(MM) | MOTOR WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|
| 57BYGHM002-01 | 0.9 | 6 | 2.8 | 2.0 | 1.4 | 2.0 | 3.5 | 41 | 0.45 |
| 57BYGHM200-03A | 0.9 | 4 | 3.4 | 1.0 | 3.4 | 12 | 7.0 | 51 | 0.56 |
| 57BYGHM203-04 | 0.9 | 6 | 12 | 0.38 | 32.0 | 38 | 5.5 | 51 | 0.56 |
| 57BYGHM401-09 | 0.9 | 6 | 7.4 | 1.0 | 7.4 | 17 | 9.0 | 56 | 0.70 |
| 57BYGHM414 | 0.9 | 4 | 1.7 | 4.2 | 0.4 | 1.0 | 11 | 56 | 0.70 |
| 57BYGHM604-17 | 0.9 | 4 | 3.2 | 2.8 | 1.13 | 6.4 | 15 | 78 | 1.00 |
| 57BYGHM601-05 | 0.9 | 6 | 8.6 | 1.0 | 8.6 | 20 | 13 | 78 | 1.00 |
*Products can be customized by special request.
*Can match with gearbox 42, 52, 56

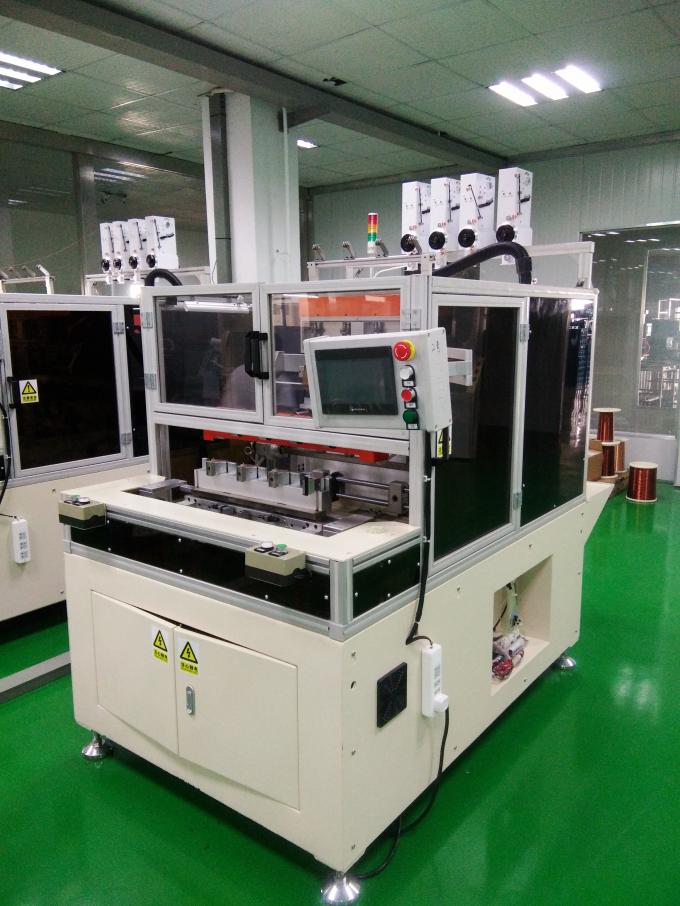

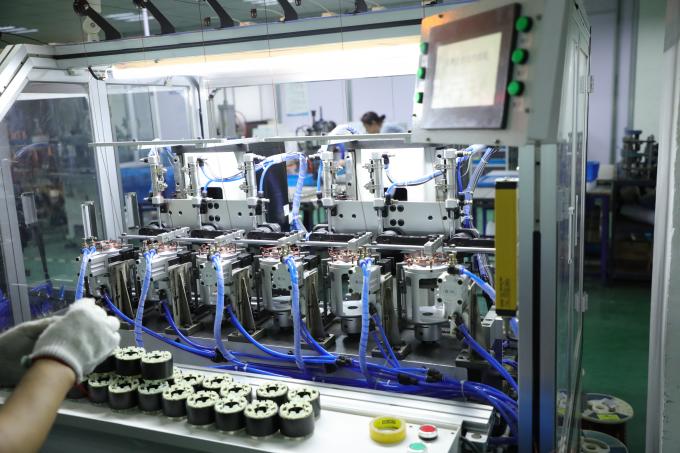

Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
