57mm Nema23 Bldc Motor 24v 3000rpm 0.44N.M IP54 Dustproof Waterproof Brushless

Place of Origin	China
Brand Name	TB-Motor
Certification	CE ROHS ISO
Model Number	57BL06-055
Minimum Order Quantity	50
Price	USD
Packaging Details	Carton with Inner Foam Box, Pallet
Delivery Time	28-31 DAYS
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	5000 PCS/MONTH

GET AN ESTIMATE NOW

Product Details

Product Name	Brushless DC Motor	No Of Poles	4 Poles
No.of Phase	3 Phase	Rated Voltage	24V
Rated Speed	3000 Rpm	Rated Power	138W
Resisitance	0.3 OHMS	Rated Torque	0.44 N.m
Protection Class	IP54 Dustproof Waterproof	Insulation Class	B
High Light	57mm Nema23 Bldc Motor,IP54 Dustproof Bldc Motor,Dustproof Brushless DC Motor

Product Description

57mm Nema23 bldc motor 24v 3000rpm 0.44N.M IP54 Dustproof Waterproof brushless dc motor

Dustproof Cannot completely prevent dust intrusion, but the amount of dust intruded will not affect the normal operation of the electrical.

Protected against intrusion of splashing water Protected against intrusion of splashed water from all directions.

Low Cogging for Accurate & Extremely Smooth Motion. High Mechanical Stiffness. Delivering Extremely Smooth Motion, Low Cogging & Low Torque Ripple.Request A Quote.View Products.Check Order Status.Models: Brushless DC Motor Series.

Innovative Motor Supplier High Quality Brushless DC Motors.High performance.Types: Automotive Motor, Gear Motor, Vacuum Cleaner Motor, Transaxle, Brushless Motor.

Different ranges of products are available to meet the design needs of many different mechanical systems in a

host of different applications. Other more bespoke adaptations can be developed upon request.

Product Name:	Brushless Motor
Dielectric Strength:	500V AC 1minute
Ambient Temperature:	-20℃~50℃
Insulation resistance:	100MΩ Min.500V DC
Voltage(VDC):	24(VDC)
Power(W):	138
Rated Speed(RPM):	3000
Rated Torque(N.M):	0.44
Rated Current(A):	1.3

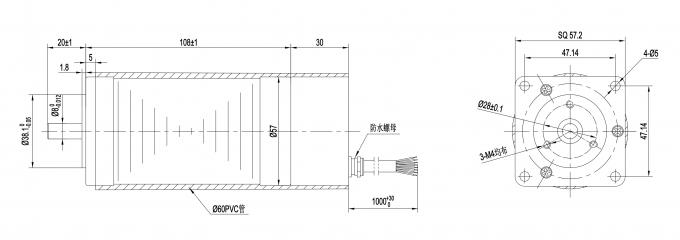

Mechanical Dimension Of Brushless DC Motor

Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

Product Range Of TB-Motor

Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… TB-Motor also sends its products to USA, Europe, Southeast Asia and all-around China.
