6 Lead Nema 23 3 Phase Hybrid Stepping Motor 0.6 Degree 0.7 NM 7 kgcm 2mH Dc 5.28V

Place of OriginChina
Brand NameTB-Motor
CertificationCE ROHS ISO
Model Number57BYGH350B-002
Minimum Order Quantity50
PriceUSD
Packaging DetailsCarton with Inner Foam Box, Pallet
Delivery Time25 DAYS
Payment TermsL/C, D/P, T/T, Western Union, MoneyGram
Supply Ability10000 PCS/MONTH
GET AN ESTIMATE NOW

Leave a Message

Product Details



Product NameHybrid Stepping MotorStep Accuracy± 5%
Insulation Resistance100MΩ Min.500VC DCAmbient Temperature-20℃~+50℃
IP LevelIP40Temperature Rise80 ℃ Max
Max Radial Force75N (20mm From Front Flange)Max Axial Force15N
Dielectric Strength500VAC 1 MinuteVoltage5.28V
High Light
Nema 23 3 Phase Hybrid Stepping Motor,3 Phase Hybrid Stepping Motor 0.6 Degree,Nema 23 3 phase stepper motor 7 kgcm



Product Description



57BYGH350B-002 0.6 Degree 3-phase 0.7 NM 2mH micro DC Nema 23 stepper motor

57BYGH350 series is a type of 3 phase stepper motor, the step angle can be made as 0.6°or 1.2°. The lead wire number is 6. It has a high torque output of 0.7 Nm. To compare with 2 phase 1.8 degree stepper motor, 3 phase motor is more stable & smooth in performance and operation. In addition, the three phase stepper motor need a special driver made especially for 3 phase.

Electrical Specification
Model Number
57BYGH350B-002
Step Accuracy
± 5%
Step Angle
0.6°/1.2°
Lead Wire
6
Voltage (V)
5.28
Current (A/Phase)
2.4
Holding Torque (N.m)
0.7
Resistance (Ω/phase)2.2
Inductance (mH/phase)2
Motor length (MM)56
Motor Weight(Kg)0.75
Insulation ClassB

*Products can be customized by special request.

Wiring Diagram

6 Lead Nema 23 3 Phase Hybrid Stepping Motor 0.6 Degree 0.7 NM 7 kgcm 2mH Dc 5.28V 0
Mechanical Dimension
6 Lead Nema 23 3 Phase Hybrid Stepping Motor 0.6 Degree 0.7 NM 7 kgcm 2mH Dc 5.28V 1
MODELSTEP ANGLE
(°/STEP)
LEAD WIRE
(NO.)
VOLTAGE
(V)
CURRENT
(A/PHASE)
RESISTANCE
(Ω/PHASE)
INDUCTANCE
(MH/PHASE)
HOLDING TORQUE
(KG.CM)
MOTOR HEIGHT
L(MM)
MOTOR WEIGHT
(KG)
57BYGH350A-0011.263.122.43.44.04.0410.45
57BYGH350A-0021.235.00.510162.0410.45
57BYGH350B-0011.232.525.60.451.19.0560.69
57BYGH350B-0021.265.282.42.227.0560.75
57BYGH350C-001-091.232.65.20.51.412761.05
57BYGH350C-005-011.239.01.09.0219761.10

*Products can be customized by special request.

*Can match with gearbox 42, 52, 56

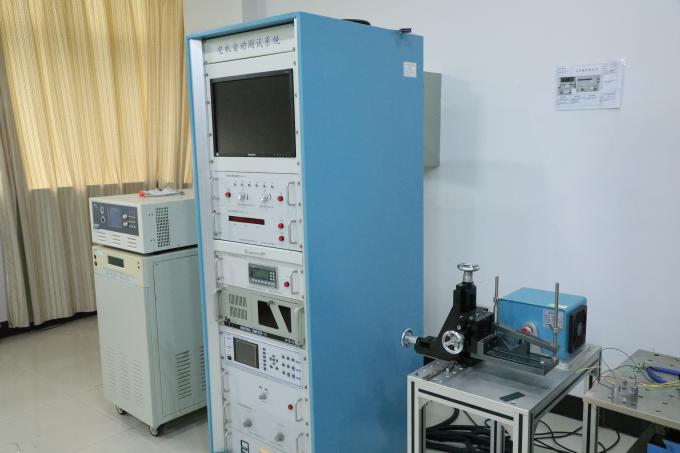

TB-Motor is also proud of its research and development strength. With the support of professional laboratory and experienced technicians, TB-Motor gained 13 Utility Patents and high-tech enterprise Award as well as other awards during the years.

6 Lead Nema 23 3 Phase Hybrid Stepping Motor 0.6 Degree 0.7 NM 7 kgcm 2mH Dc 5.28V 26 Lead Nema 23 3 Phase Hybrid Stepping Motor 0.6 Degree 0.7 NM 7 kgcm 2mH Dc 5.28V 3
