60 kg cm stepper motor 6 Nm 85HS116 6504 002 09 3 Phase
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 85HS116-6504-002-09 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 25 DAYS |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Hybrid Stepping Motor | Step Accuracy | ± 5% |
|---|---|---|---|
| Weight | 3.6kg | Temperature Rise | 80 ℃ Max |
| Motor Length | 116mm | Ambient Temperature | -20℃~+50℃ |
| Dielectric Strength | 500VAC 1 Minute | Insulation Resistance | 100MΩ Min.500VC DC |
| Max Radial Force | 220N (20mm From Front Flange) | Max Axial Force | 60N |
| High Light | 85HS116 6504 002 09,60kg cm stepper motor,60Kg Cm Stepper Motor 6Nm | ||
Product Description

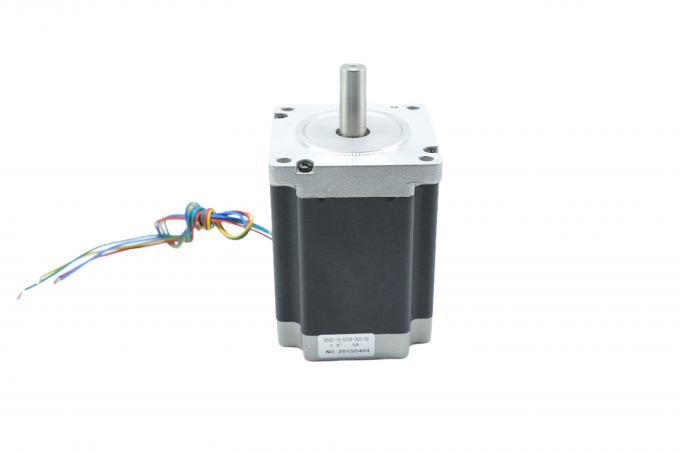

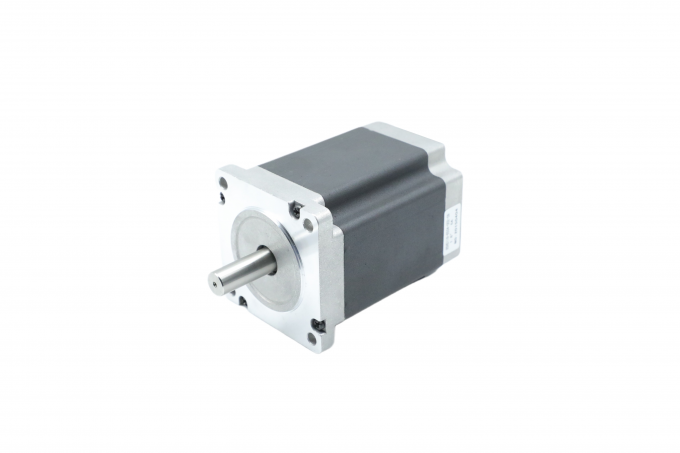

85HS116-6504-002-09 Length 116MM Stable Performance Professional Manufacture Motor Stepper Motor 3 Phase
A stepper motor is an electric motor whose main feature is that its shaft rotates by performing steps, that is, by moving by a fixed amount of degrees. This feature is obtained thanks to the internal structure of the motor, and allows to know the exact angular position of the shaft by simply counting how may steps have been performed, with no need for a sensor. This feature also makes it fit for a wide range of applications.
Electrical Specification:
| Model Number | 85HS116-6504-002-09 |
| Step Accuracy | ± 5% |
| Step Angle | 1.8° |
| Lead Wire | 4 |
| Voltage (V) | 2.5 |
| Current (A/Phase) | 5 |
| Holding Torque (N.m) | 6 |
| Resistance (Ω/phase) | 0.9 |
| Inductance (mH/phase) | 11.0 |
| Motor length (MM) | 116 |
| Motr Weight(K/g) | 3.6 |
| Insulation Class | B |
*Products can be customized by special request.
*Wiring Diagram
| MODEL | STEP ANGLE (°/STEP) | LEAD WIRE (NO.) | VOLTAGE (V) | CURRENT (A/PHASE) | RESISTANCE (Ω/PHASE) | INDUCTANCE (MH/PHASE) | HOLDING TORQUE (N.M) | MOTOR HEIGHT L(MM) | MOTOR WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|
| 85HS68-1404-001 | 1.8 | 4 | 5.6 | 1.4 | 4.0 | 24.0 | 2.8 | 68 | 1.8 |
| 85HS68-4004-001 | 1.8 | 4 | 2.4 | 4.0 | 0.6 | 2.8 | 2.8 | 68 | 1.8 |
| 85HS80-4208-001-02 | 1.8 | 8 | 4.6 | 2.97 | 1.55 | 6.76 | 3.2 | 80 | 2.3 |
| 85HS80-5504-001-06 | 1.8 | 4 | 1.6 | 4.0 | 0.4 | 3.5 | 3.0 | 80 | 2.3 |
| 85HS97-3008-001 | 1.8 | 8 | 4.8 | 3.0 | 1.6 | 8.0 | 5.0 | 97 | 2.8 |
| 85HS97-4006-001 | 1.8 | 6 | 3.4 | 4.0 | 1.0 | 5.0 | 4.4 | 97 | 2.8 |
| 85HS116-4208-001 | 1.8 | 8 | 5.0 | 4.2 | 1.2 | 6.5 | 6.0 | 116 | 3.6 |
| 85HS116-5004-001 | 1.8 | 4 | 4.5 | 5.0 | 0.9 | 11.0 | 8.5 | 116 | 3.6 |
| 85HS126-4008-001 | 1.8 | 8 | 6.0 | 4.0 | 1.5 | 8.0 | 6.8 | 126 | 3.8 |
| 85HS126-6408-001 | 1.8 | 8 | 1.53 | 6.4 | 0.536 | 2.86 | 6.2 | 126 | 3.8 |
| 85HS131-3004-001 | 1.8 | 4 | 5.1 | 3.0 | 1.7 | 18.0 | 9.0 | 131 | 4.2 |
| 85HS131-7004-001 | 1.8 | 4 | 2.8 | 7.0 | 0.4 | 4.0 | 9.0 | 131 | 4.2 |
| 85HS155-5004-001 | 1.8 | 4 | 4.0 | 5.0 | 0.8 | 10.0 | 11.0 | 155 | 5.0 |
| 85HS155-6504-001 | 1.8 | 4 | 3.9 | 6.5 | 0.6 | 7.0 | 10.0 | 155 | 5.0 |
*Products can be customized by special request.
