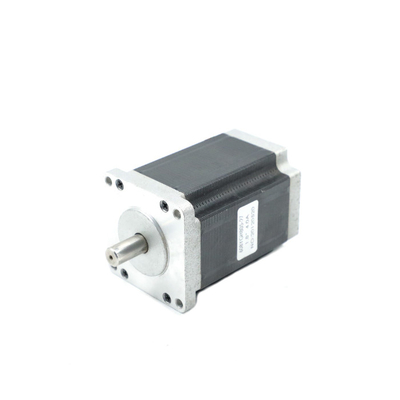

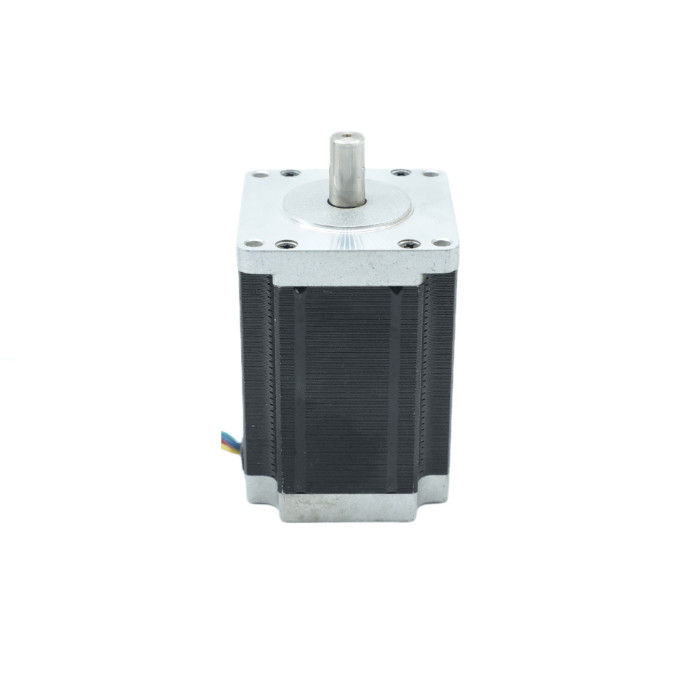

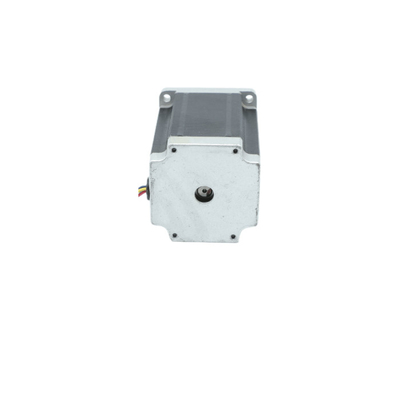

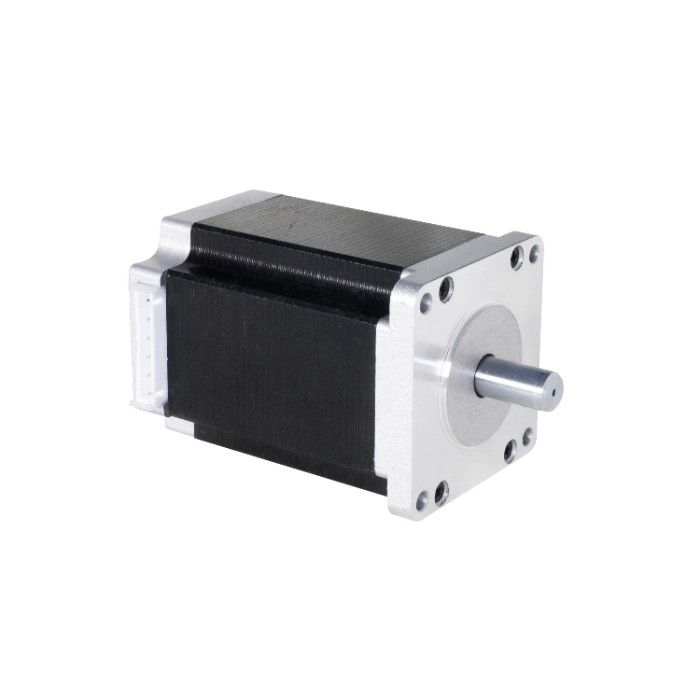

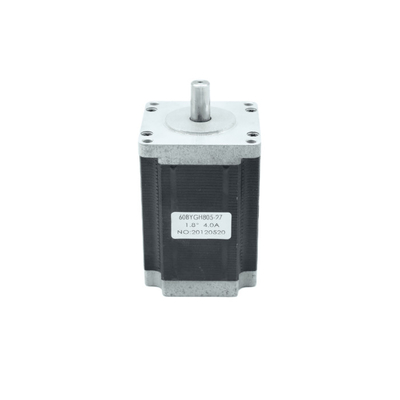

60BYGH808A 4 Lead Wires High Torque Hybrid Stepper Motor 60mm Nema24 4.5V 26kg.Cm
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 60BYGH808A |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Hybrid Stepper Motor | Step Angle | 1.8 ° |
|---|---|---|---|
| Lead Wire | 4 | Rated Voltage | 4.5V |
| Rated Current | 3.0A | Resistance | 1.5Ω |
| Inductance | 5.0mH | Holding Torque | 26 Kg.cm |
| Motor Height | 87 Mm | Motor Weight | 1.34 Kg |
| High Light | 26kg.Cm Hybrid Stepper Motor,4.5V Hybrid Stepper Motor,4 Lead Wires Nema24 Stepper Motor | ||
Product Description
Hetai 60mm nema24 60BYGH808A hot sale 4 lead wires 4.5V 26kg.cm high torque hybrid stepper motor
Stepper motor control technology and development overview
Since the stepper motor is a device that converts electrical pulses into discrete mechanical motions and has good data control characteristics, the computer becomes an ideal driving source for the stepper motor. With the development of microelectronics and computer technology, software and hardware The combined control method has become the mainstream, that is, the control pulse is generated through the program to drive the hardware circuit. The single-chip microcomputer controls the stepper motor through software, which better taps the potential of the motor. Therefore, it has become an inevitable trend to control the stepper motor with a single-chip microcomputer, and it is also in line with the trend of digitalization.
Electrical Specification Of Hybrid Stepper Motor
Product Name | Hybrid Stepper Motor |
Step Accuracy | ± 5% |
Dielectric Strength | 500V AC 1minute |
Ambient Temperature | -20℃~50℃ |
Insulation resistance | 100MΩ Min.500VDC |
Step Angle | 1.8° |
Lead wire | 4 |
Voltage (V) | 4.5 |
Current (A/Phase) | 3.0 |
Holding Torque (Kg.cm) | 26 Kg.cm |
Mechanical Dimension Of Hybrid Stepper Motor
Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Product Range Of TB-Motor
Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… TB-Motor also sends its products to USA, Europe, Southeast Asia and all-around China.
Different reduction gearboxs
Since the reorganization in 1998, it has formed a certain scale of production and sales, with an annual production of more than 3 million motors.
Professional experimental equipment
CNC Center
Packing&Delivery
Strictly palletizing and packaging to ensure that the motor will be delivered to the customer in good condition.
