63BLX01-XXWG15L 24VDC Worm Gearbox Motor 220rpm 1A 3.5N.M 114W

Place of Origin	China
Brand Name	TB-Motor
Certification	CE ROHS ISO
Model Number	63BLX01-XXWG15L
Minimum Order Quantity	50
Price	USD
Packaging Details	Carton with Inner Foam Box, Pallet
Delivery Time	28-31
Payment Terms	L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability	5000pcs/month

GET AN ESTIMATE NOW

Product Details

Product Name	DC Worm Gear Motor	Nominal Voltage	24 V
Rated Speed	220 RPM	Reduction Ratio	1:15
Rated Speed Of Motor	3300rpm	Rated Power	114W
Rated Torque With Gearbox	3.5 N.M	Application	Wheel Drive, AGV Trolley
Certification	CE ROHS ISO
High Light	24VDC Worm Gearbox Motor,Worm Gearbox Motor 220rpm,DC Worm Gear Motor 3.5NM

Product Description

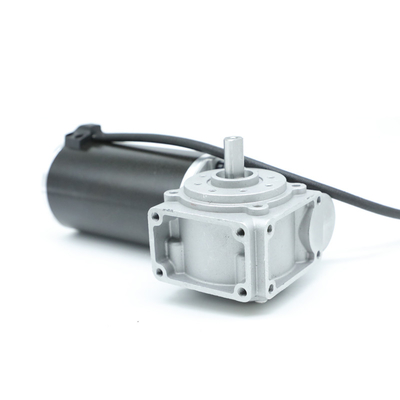

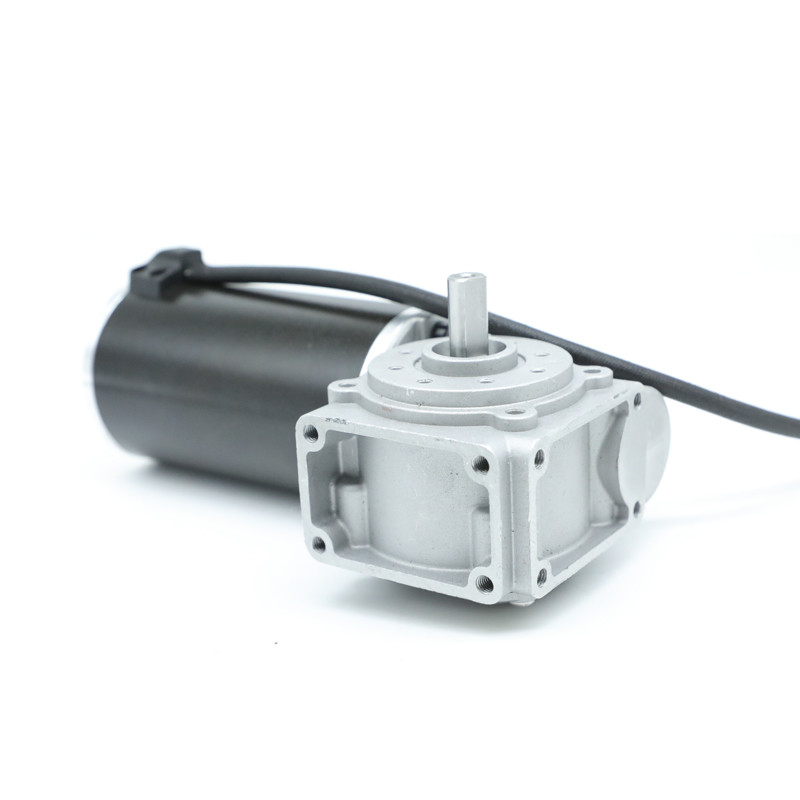

63BLX01-XXWG15L 220rpm 1A 3.5N.m 114W 24VDC worm gearbox motor

TB-Motor Products’ Worm Gear Motors are designed to generate high torque in a small package size. Worm Gear Motors are great for applications that require a self- locking or breaking feature since the output shaft can’t rotate when there’s no power applied. The worm gear makes it so the output shaft of the gear motor is oriented 90 degrees to the motor body. This right angle output has advantages in applications where overall length is limited. With various reduction ratios, precision cut gears, voltages and sizes, Hetai Products has a DC Worm Gear Motor solution for your application.

Electrical Specification:

Product Name	DC Worm Gear motor
Model	63BLX01-XXWG15L
Reduction Ratio	1:15
Voltage (V)	24 V
Rated Speed with gearbox (RPM)	220
Rated Torque with gearbox (N.M)	3.5
Power (W)	114
Insulation class	B

Mechanical Dimension

Product Range

Stepping Motor & Planetary Gearbox Motor & DC Brushless Motor & Servo Motor

TB-Motor Production Process

High-quality Raw Materials

Brushless Motor Final Inspection


Measure the Motor Length	Measure the Shaft Length	Measure the Ouler Circle

Measure the Screw Hole Distance	Measure the Length of Wire	Measure the Length of PVC

Test the Resistance	Listening	Test the speed
