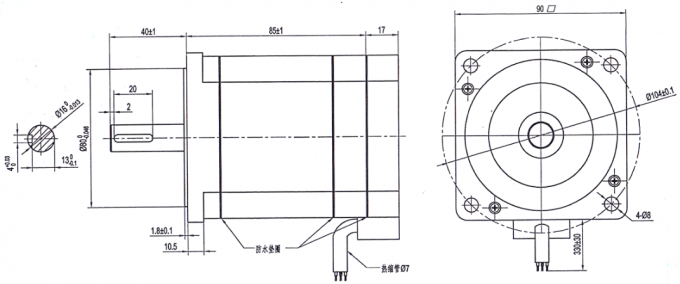

8 Pole 3 Phase Brushless Dc Motor Customizable 48v Nema 34 1500Rpm

Place of Origin	China
Brand Name	TB-Motor
Certification	CE ROHS ISO
Model Number	86BLF02L-001
Minimum Order Quantity	50
Price	USD
Packaging Details	Carton with Inner Foam Box, Pallet
Delivery Time	25 DAYS
Payment Terms	L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability	10000 PCS/MONTH

GET AN ESTIMATE NOW

Product Details

Product Name	Brushless DC Motor	Nominal Voltage	48V
Hall Effect Angle	120° Electrical Anglel	Winding Type	Star
No-load Speed	2000 Rpm	No-load Current	0.7 Apms
Rated Speed	1500± 300 Rpm	Back Emf Constant	24 V/kRPM
Rated Torque	1 N.m	Torque Constant	0.229 N.m/A
Ambient Temperature	-20℃~+50℃	Max Radial Force	22 0N (10mm From Front Flange)
Max Axial Force	60 N	Insulation Class	B
High Light	3 Phase Brushless Dc Motor 48v,Customizable 8 Pole Brushless Dc Motor,1500Rpm 3 Phase Bldc Motor

Product Description

Brushless Dc Motor 8 Pole 3 Phase customizable 48v Nema 34 1500Rpm 0.95OHMS 86BLF02L-001

The BLDC motor is used in low power application. They have many advantages like low cost, simplicity, reliability, good performance, long life. Participate in Electric Drives Certification Contest of the Month Now! Due to low inertia, BLDC motors have faster acceleration.

Based on the above advantages, our company specializes in the production of hybrid stepping motors, brushless DC motors, servo motors, gearbox motors, etc. Products are used in robots, packaging machinery, textile machinery, medical equipment, printing machinery, intelligent logistics equipment… Hetai products are also exported to the United States, Europe, Southeast Asia and all over the country.

Electrical Specification

Specification	Unit	86BLF02L-001
Number Of Phases	Phase	3
Number Of Poles	Poles	8
Rated Voltage	VDC	48
Rated Speed	Rpm	1500± 300
Rated Current	A	0.7
Rated Torque	N.m	1
No-load Speed	Rpm	2000
No-load Current	Amps	0.7
Torque Constant	N.m/A	0.229
Back EMF constant	V/kRPM	24
Insulation Class		B
