8 Wire Brushless Permanent Magnet Motor NEMA 23 24v 70W 0.22nm 57BL04A 049
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 57BL04A-049 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 25 DAYS |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Brushless DC Motor | Rated Speed | 3000 Rpm |
|---|---|---|---|
| Winding Type | Star | Hall Effect Angle | 120° Electrical Angle |
| Insulation Class | B | Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100MΩ Min.500VC DC | Dielectric Strength | 600VAC 1 Minute |
| Max Radial Force | 75N (10mm From Front Flange) | Max Axial Force | 15N |
| High Light | 8 wire brushless dc motor NEMA 23,brushless motor NEMA 23 57BL04A 049,bldc motor 24v 70W | ||
Product Description
57BL04A-049 round flange NEMA 23 micro brushless motor 70W 3000 rpm
General Specification
| Item | Specification |
| Winding type | Star |
| Hall effect angle | 120-degree electrical angle |
| No. of leads | 8 leads |
| Radial play | 0.02mm＠450g |
| End play | 0.08mm＠450g |
| Insulation class | Class B |
| Dielectric strength | 600VDC for one minute |
| Max.radial force | 75N ＠10mm from the flange |
| Max.axial force | 15N |
| Insulation resistance | 100MΩ Min.,500VDC |
Electrical Specification:
| Model | ||
| Specification | Unit | 57BL04A-049 |
| Number Of Phases | Phase | 3 |
| Number Of Poles | Poles | 4 |
| Rated Voltage | VDC | 24 |
| Rated Speed | Rpm | 3000 |
| Resistance | OHMS | 0.62 |
| No-load Current | A | 0.6 |
| Rated Torque | N.m | 0.22 |
| Rated Power | W | 70 |
| Peak Torque | N.m | 0.66 |
| Torque Constant | N.m/A | 0.06 |
| Back EMF constant | V/kRPM | 6.3 |
| Body Length | mm | 66.5 |
| Weight | Kg | 0.67 |
*Products can be customized by special request.
*Products can match gearbox 42, 52, 56, 63mm
Wiring Diagram
| FUNCTION | COLOR | |
| +5V | RED | UL1007 26AWG |
| HALL A | YELLOW | |
| HALL B | GREEN | |
| HALL C | BLUE | |
| GND | BLACK | |
| PHASE A | YELLOW | UL1015 20AWG |
| PHASE B | GREEN | |
| PHASE C | BLUE |

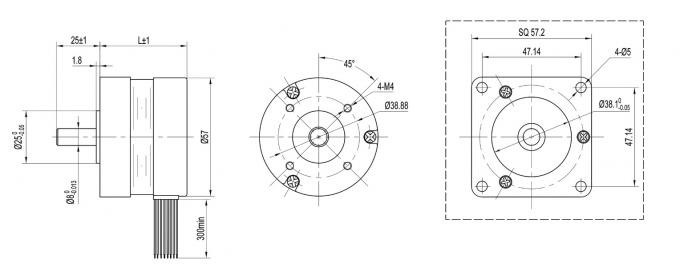

Mechanical Dimension
Product application
TB-Motor ‘s products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… TB-Motor also sends its products to USA, Europe, Southeast Asia and all-around China.
