85BYGH350A-001 High Performance Hybrid Stepper Motor Nema34
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 85BYGH350A-001 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Hybrid Stepper Motor | Step Angle | 1.2 ° |
|---|---|---|---|
| Lead Wire | 3 | Rated Voltage | 3.1V |
| Rated Current | 3.1A | Resistance | 1.0Ω |
| Inductance | 4.1mH | Holding Torque | 2.0 N.M |
| Motor Height | 68 Mm | Motor Weight | 1.7 Kg |
| High Light | Hybrid Stepper Motor Nema34,85BYGH350A-001 Stepper Motor,1.2 Step Hybrid Stepper Motor | ||
Product Description
Factory direct sale 85BYGH350A-001 high performance Nema34 hybrid stepper motor
Advantages of stepper motors
1. The angle of motor rotation is proportional to the number of pulses;
2. The motor has the maximum torque when it stops (when the winding is excited);
3. Because the accuracy of each step is 3% to 5%, and the error of one step will not be accumulated to the next step, it has better position accuracy and motion repeatability;
4. Excellent start-stop and reverse response;
5. Because there is no brush, the reliability is high, so the life of the motor only depends on the life of the bearing;
6. The response of the motor is only determined by the digital input pulse, so open-loop control can be used, which makes the structure of the motor relatively simple and cost-effective;
7. Merely connecting the load directly to the shaft of the motor also enables synchronous rotation at very low speeds.
8. Since the speed is proportional to the pulse frequency, it has a relatively wide speed range.
Electrical Specification Of Hybrid Stepper Motor
Product Name | Hybrid Stepper Motor |
Step Accuracy | ± 5% |
Dielectric Strength | 500V AC 1minute |
Ambient Temperature | -20℃~50℃ |
Insulation resistance | 100MΩ Min.500VDC |
Step Angle | 1.2° |
Lead wire | 3 |
Voltage (V) | 3.1 |
Current (A/Phase) | 3.1 |
Holding Torque (N.M) | 2.0 |

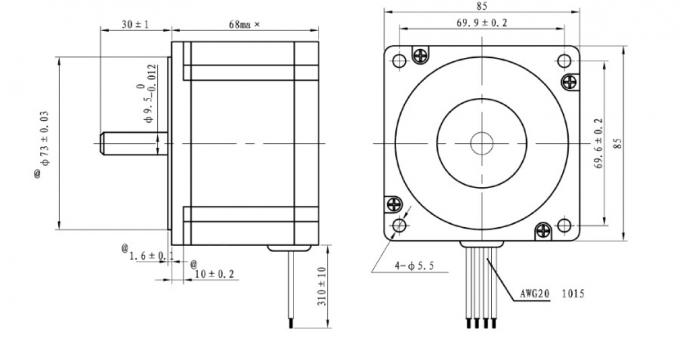

Mechanical Dimension Of Hybrid Stepper Motor
Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Product Range Of TB-Motor
Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… TB-Motor also sends its products to USA, Europe, Southeast Asia and all-around China.
Different reduction gearboxs
Professional experimental equipment
CNC Center
Packing&Delivery
Strictly palletizing and packaging to ensure that the motor will be delivered to the customer in good condition.
Automatic assembly line
Since the reorganization in 1998, it has formed a certain scale of production and sales, with an annual production of more than 3 million motors.
