85BYGH350C-001E 1.2 Degree 7nm stepper motor Mounting
Place of Origin | China |
---|---|
Brand Name | TB-Motor |
Certification | CE ROHS ISO |
Model Number | 85BYGH350C-001E |
Minimum Order Quantity | 50 |
Price | USD |
Packaging Details | Carton with Inner Foam Box, Pallet |
Delivery Time | 25 DAYS |
Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
Supply Ability | 10000 PCS/MONTH |
Leave a Message
Product Details
Product Name | Hybrid Stepping Motor | Step Accuracy | ± 5% |
---|---|---|---|
Dielectric Strength | 500VAC 1 Minute | Insulation Resistance | 100MΩ Min.500VC DC |
Ambient Temperature | -20℃~+50℃ | Temperature Rise | 80 ℃ Max |
Max Radial Force | 220N (20mm From Front Flange) | Max Axial Force | 60N |
High Light | 85BYGH350C 001E,85BYGH350C-001E 7nm stepper motor,85BYGH350C-001E stepper motor 7nm |
Product Description

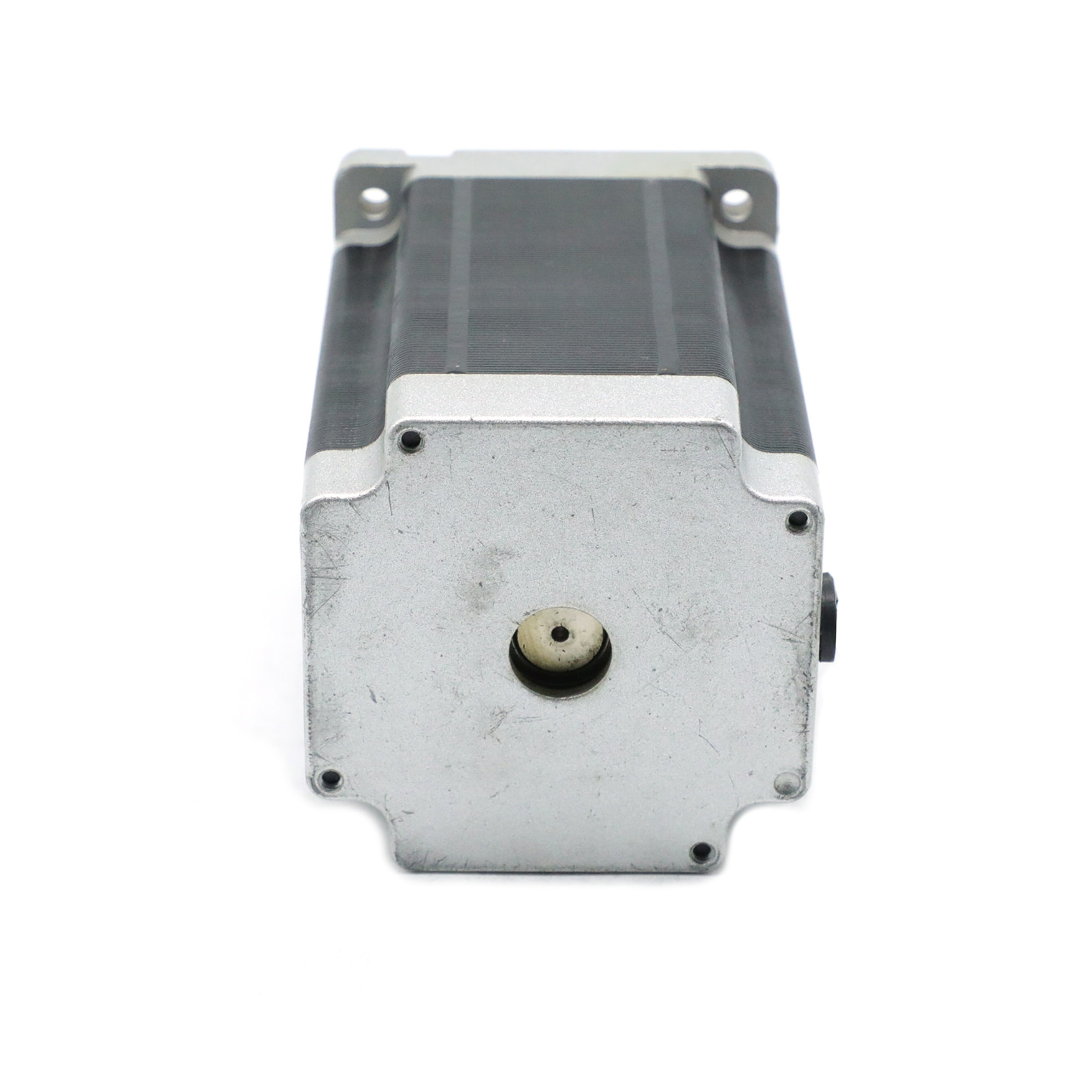

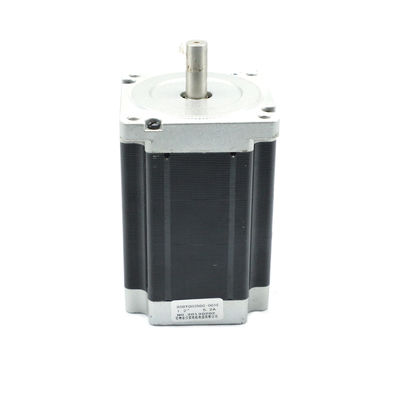

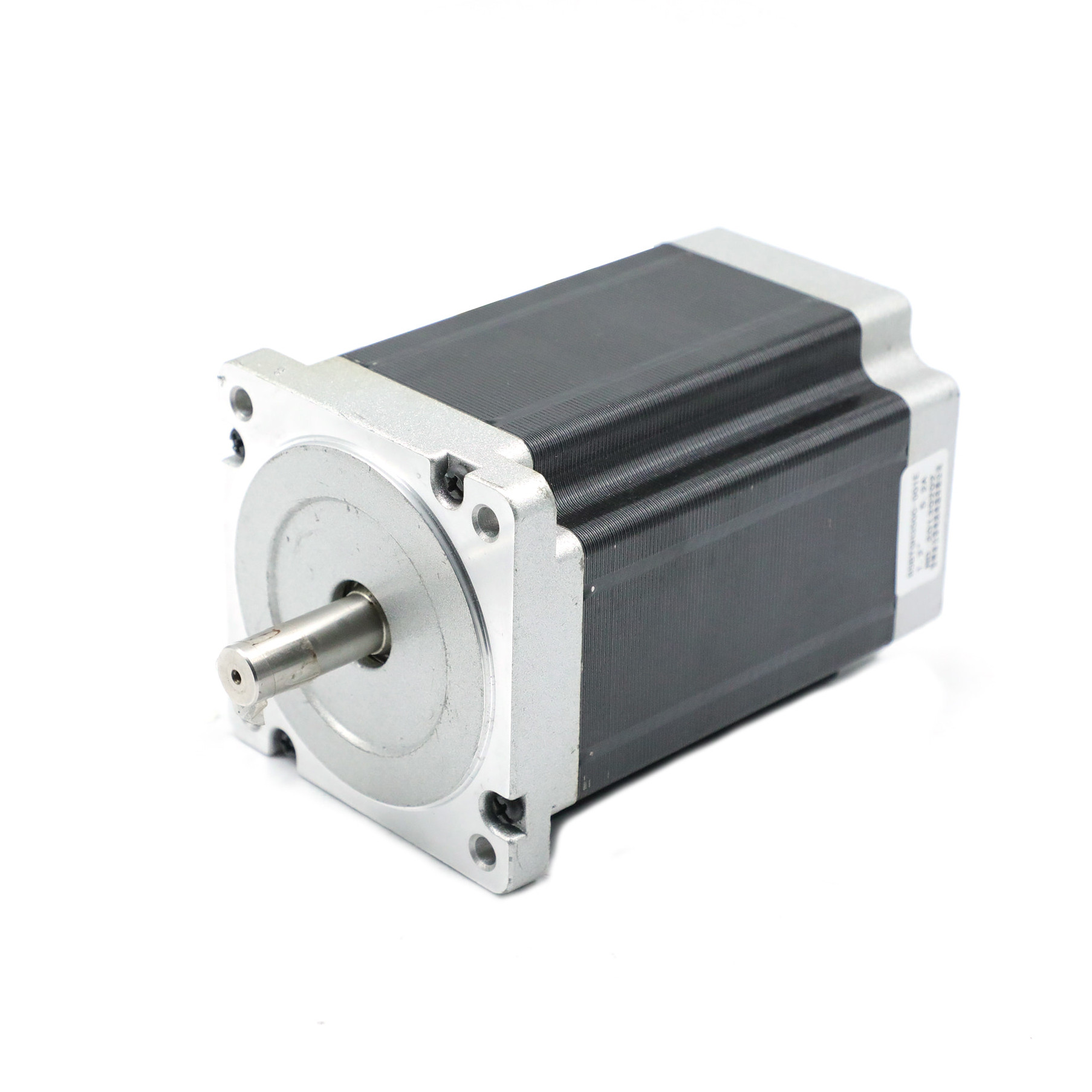

85BYGH350C-001E 1.2 Degree Motor Length 127mm Stepper Motor Mounting Hybrid Stepper Motor
The Industrial applications of stepping motor include high speed pick and place equipment and multi-axis CNC machines, often directly driving lead screws or ballscrews. In the field of optics they are frequently used in precision positioning equipment such as linear actuators, linear stages, rotation stages, goniometers, and mirror mounts. Other uses are in packaging machinery, and positioning of valve pilot stages for fluid control systems. Commercially, stepper motors are used in floppy disk drives, flatbed scanners, computer printers, plotters, slot machines, image scanners, compact disc drives and many more devices
Electrical Specification:
Model Number | 85BYGH350C-001E |
Step Accuracy | ± 5% |
Step Angle | 1.2° |
Lead Wire | 4 |
Voltage (V) | 13 |
Current (A/Phase) | 5.2 |
Holding Torque (N.m) | 6.8 |
Resistance (Ω/phase) | 0.53 |
Inductance (mH/phase) | 2.5 |
Motor length (MM) | 127 |
Motr Weight(K/g) | 4 |
Insulation Class | B |
*Products can be customized by special request.
Wiring Diagram

MODEL | STEP ANGLE (°/STEP) | LEAD WIRE (NO.) | VOLTAGE (V) | CURRENT (A/PHASE) | RESISTANCE (Ω/PHASE) | INDUCTANCE (MH/PHASE) | HOLDING TORQUE (N.M) | MOTOR HEIGHT L(MM) | MOTOR WEIGHT (KG) |
---|---|---|---|---|---|---|---|---|---|
85BYGH350A-001 | 1.2 | 3 | 3.1 | 3.1 | 1.0 | 4.1 | 2.0 | 68 | 1.7 |
85BYGH350A-002 | 1.2 | 3 | 7.4 | 1.75 | 4.25 | 12.3 | 2.3 | 68 | 1.7 |
85BYGH350B-001-17 | 1.2 | 3 | 3.1 | 5.8 | 0.53 | 2.5 | 3.2 | 97 | 2.9 |
85BYGH350B-002-02 | 1.2 | 3 | 10.8 | 2.0 | 5.4 | 23.0 | 4.5 | 97 | 2.9 |
85BYGH350C-001-02 | 1.2 | 3 | 3.7 | 7.0 | 0.53 | 2.5 | 5.6 | 127 | 4.0 |
85BYGH350C-003 | 1.2 | 3 | 21.0 | 3.5 | 6.0 | 25.0 | 6.8 | 127 | 4.0 |
*Products can be customized by special request.
When it comes to quality aspect, TB-Motor was qualified by ISO Certificate, CE and Rohs. The product quality has also been recognized by many customers.
TB-Motor is also proud of its research and develop strength. With the support of professional laboratory and experienced technicians, TB-Motor gained 13 Utility Patents and high-tech enterprise Award as well as other awards during the years.
FAQ
1. Are you a factory?
Yes, we are a factory. Our brand name TB-Motor is a well-known micro motor manufacturer for more than 20 years in
China. Main products including hybrid stepper motor, brushless DC motor, servo motor, and planetary gearbox.
2. Can I test the sample?
Yes, samples and freight are charged.
3. Can I get a Customized product?
Sure, all the products can be customized based on special requests.
4. How do you ship the goods?
We normally ship goods by express(DHL/UPS/FEDEX/TNT), by sea and by air, also accept freight forwarder.
5. What are the payment terms?
T/T(bank transfer), Paypal(0.5% paypal charges), ALIBABA assurance order accept
6. Is this your final price? May I have the discount?
Our price is the factory price. If you have a large quantity, we can negotiate about the discount.
7. What is the Warranty for your products?
Our warranty is for one year. If any quality problems occurred on our side during this period, we will take on the shipping cost and replacement. please note damage caused by improper use of the product is not covered by the warranty.
