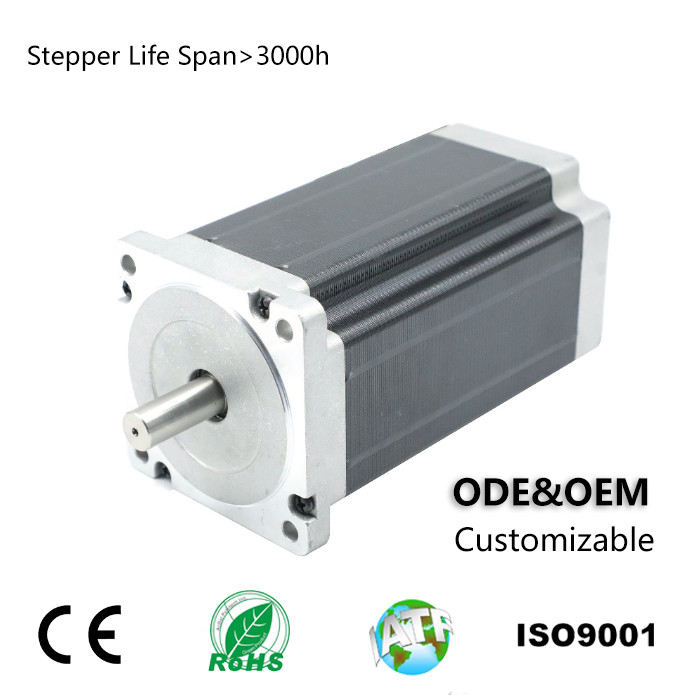

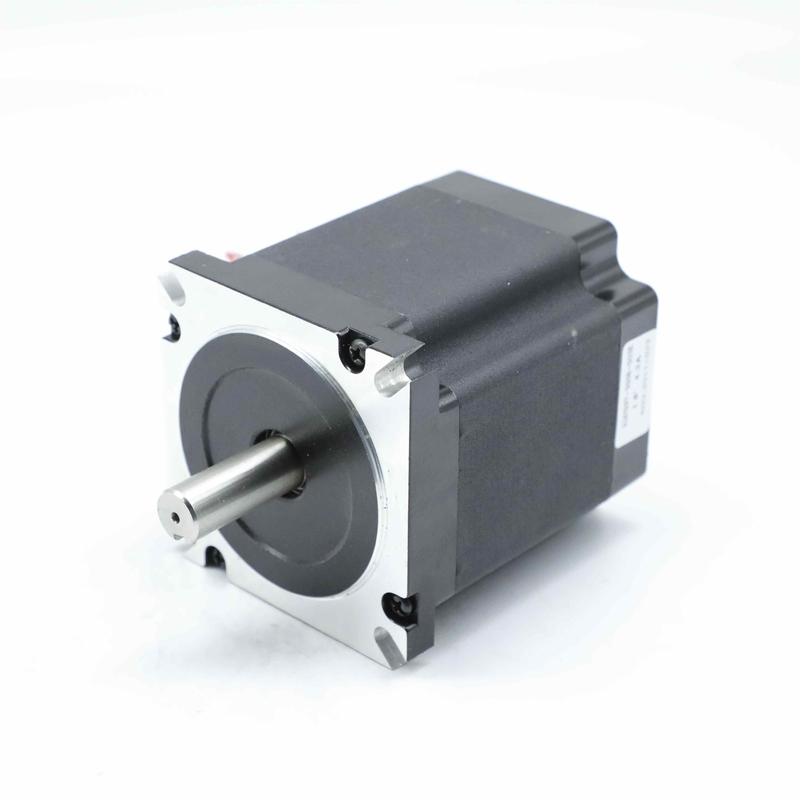

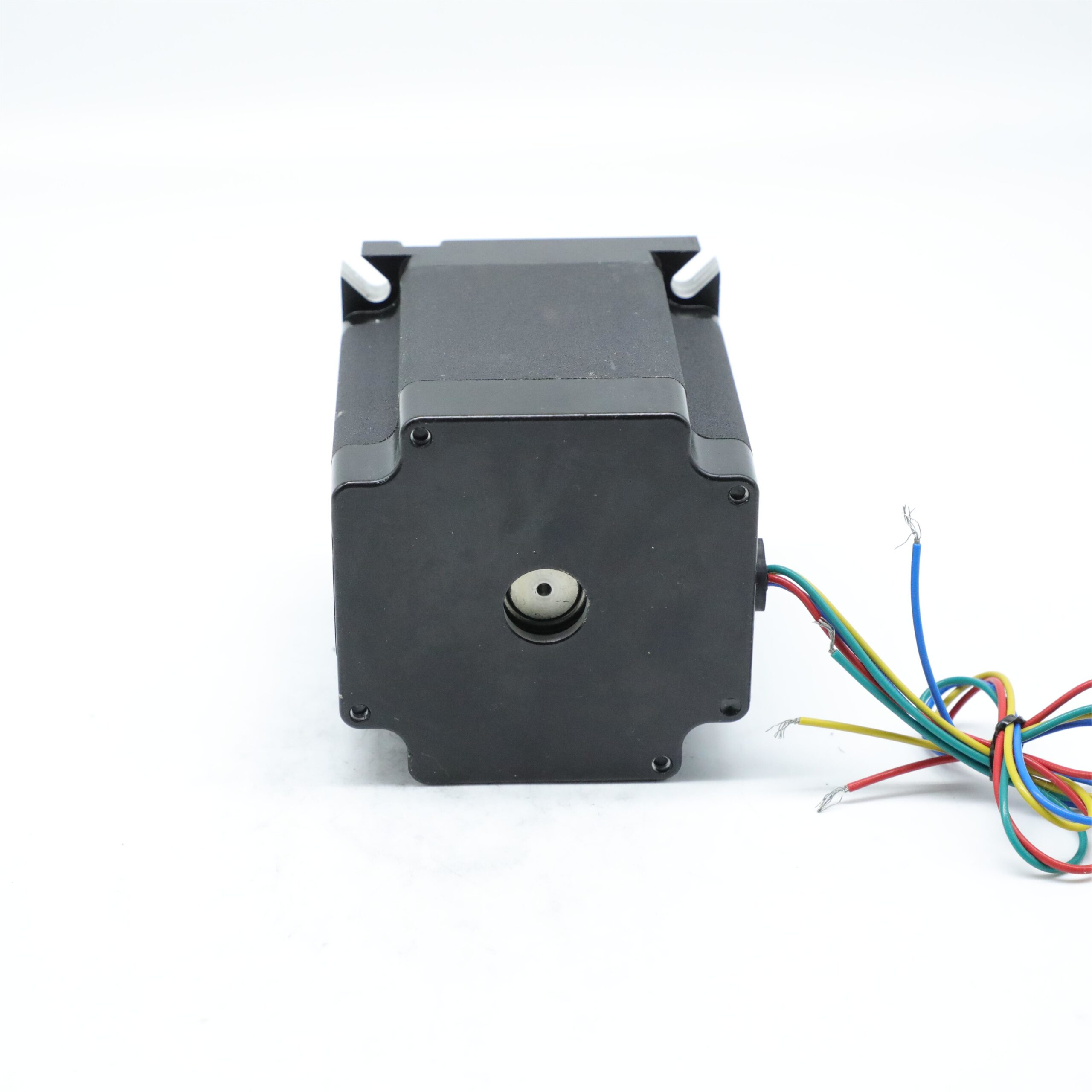

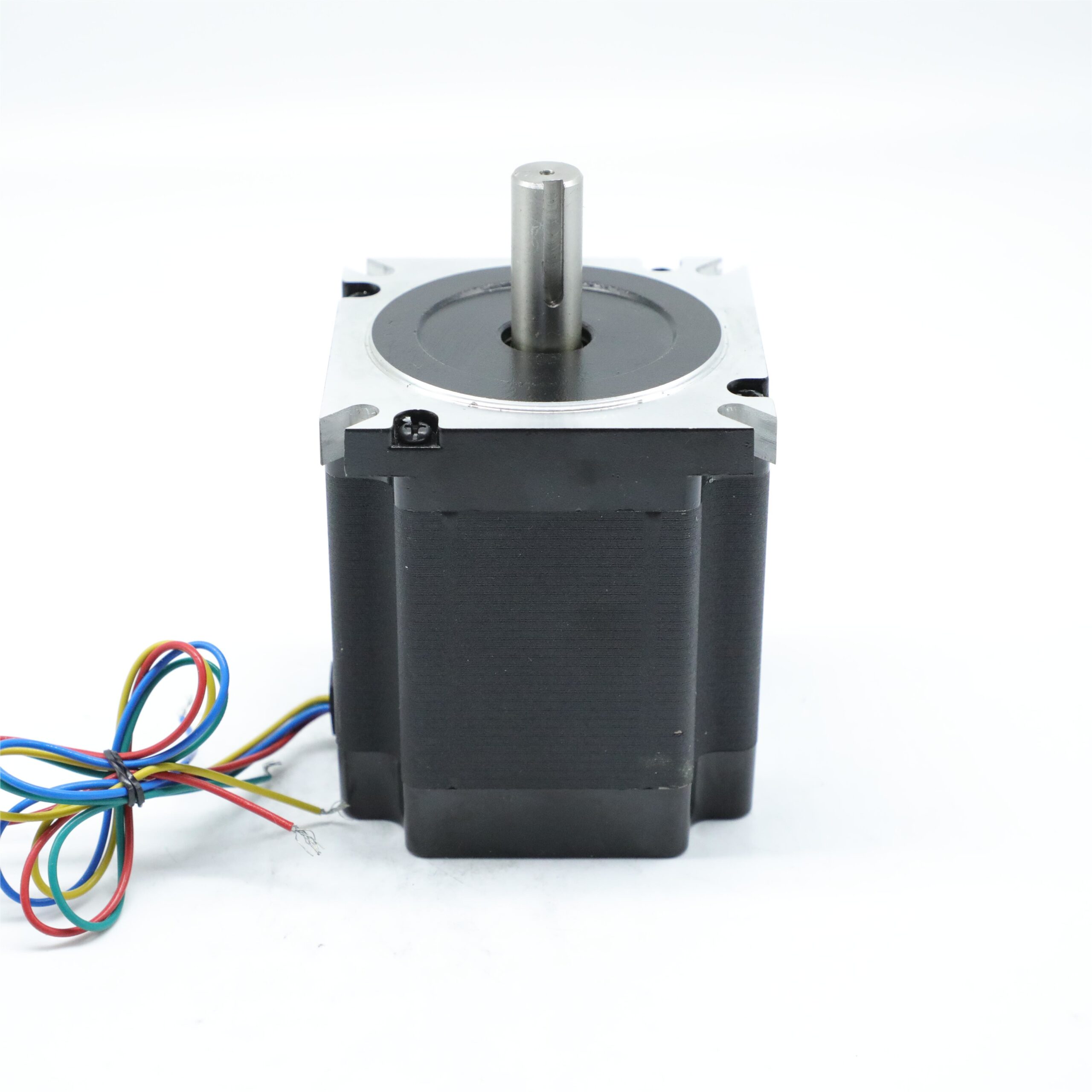

85HS116-4208-001 8 Lead Wires Hybrid Stepper Motor 5V 4.2A 6N.M
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 85HS116-4208-001 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Hybrid Stepper Motor | Step Angle | 1.8 ° |
|---|---|---|---|
| Rated Voltage | 5.0V | Rated Current | 4.2A |
| Inductance | 6.5 MH | Holding Torque | 6.0 N.M |
| Lead Wire | 8 | Resistance | 1.2Ω |
| Motor Height | 116 Mm | Motor Weight | 3.6 Kg |
| High Light | 6N.M Torque Hybrid Stepper Motor,85HS116-4208-001 Motor,5V 4.2A 8 Wires Stepper Motor | ||
Product Description
Model 85HS116-4208-001 8 lead wires 5V 4.2A 6N.M high performance hybrid stepper motor
What is Hybrid Stepper Motor : Working & Its Applications
The motor is an electrical device used to change the power (P), volts (V) & amps (A) into mechanical power, torque & speed. There are different kinds of motors available based on the requirement, in that stepper motor is one type. Stepper motor controls the speed as well as the rotation angle very accurately. These motors are BLDC motors that use an electronic driver to regulate the rotation of windings. In order to change the rotation of windings, electrical pulses are given as an input to the driver, so that motor turns one step for every pulse. Stepper motors are classified into three type’s permanent magnet, variable & hybrid stepper motor. This article discusses an overview of the hybrid stepper motor.
Electrical Specification Of Hybrid Stepper Motor
Product Name | Hybrid Stepper Motor |
Step Accuracy | ± 5% |
Dielectric Strength | 500V AC 1minute |
Ambient Temperature | -20℃~50℃ |
Insulation resistance | 100MΩ Min.500VDC |
Step Angle | 1.8° |
Lead wire | 8 |
Voltage (V) | 5.0 |
Current (A/Phase) | 4.2 |
Holding Torque (N.M) | 6.0 |
Mechanical Dimension Of Hybrid Stepper Motor
Product Range Of TB-Motor
Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… TB-Motor also sends its products to USA, Europe, Southeast Asia and all-around China.
Since the reorganization in 1998, it has formed a certain scale of production and sales, with an annual production of more than 3 million motors.
CNC Center
Automatic assembly line
Packing&Delivery
Strictly palletizing and packaging to ensure that the motor will be delivered to the customer in good condition.
