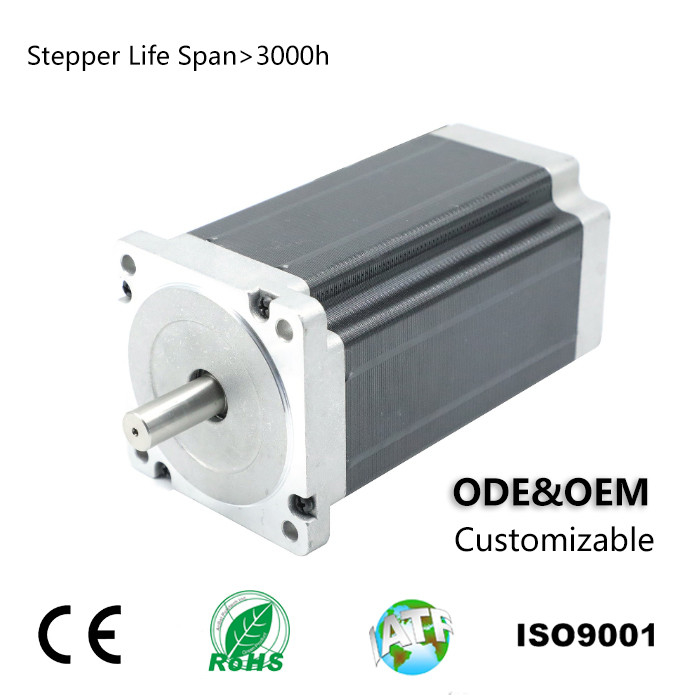

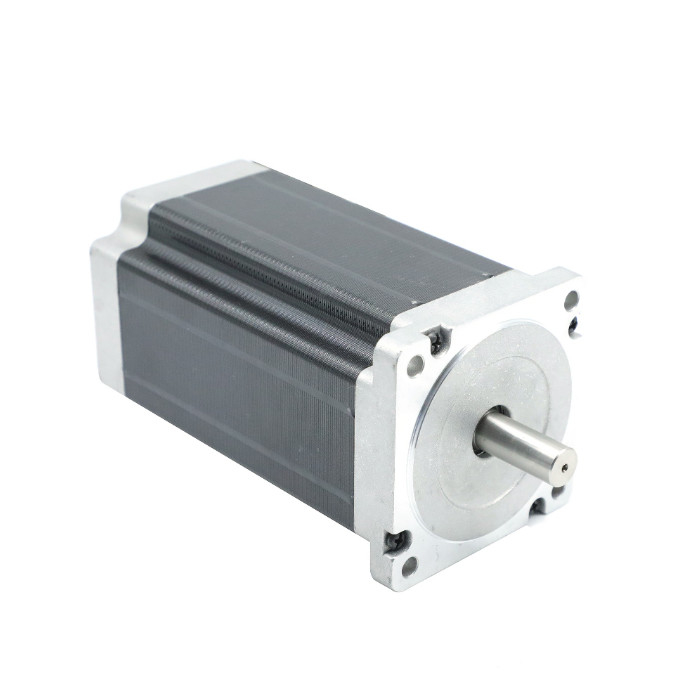

85HS126-4008-001 8 Lead Wires Nema34 Stepper Motor 6.0V 4A 6.8N.M

Place of Origin	China
Brand Name	TB-Motor
Certification	CE ROHS ISO
Model Number	85HS126-4008-001
Minimum Order Quantity	50
Price	USD
Packaging Details	Carton with Inner Foam Box, Pallet
Delivery Time	28-31 DAYS
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	5000 PCS/MONTH

GET AN ESTIMATE NOW

Product Details

Product Name	Hybrid Stepper Motor	Step Angle	1.8 °
Rated Voltage	6.0V	Rated Current	4.0A
Lead Wire	8	Resistance	1.5Ω
Inductance	8.0 MH	Holding Torque	6.8 N.M
Motor Height	126 Mm	Motor Weight	3.8 Kg
High Light	8 Wires Nema34 Stepper Motor,6.8N.M Nema34 Stepper Motor,6.0V 4A Hybrid Stepper Motor

Product Description

Hybrid stepper motor 85HS126-4008-001 6.0V 8 lead wires 4A 6.8N.M high performance Nema34 stepper motor

What is Hybrid Stepper Motor?
Definition: The combination of two motors like a permanent magnet and variable reluctance is known as a hybrid stepper motor. The working principle of a hybrid motor is, the rotor in this motor is magnetized axially similar to a permanent magnet stepper motor, whereas the stator is energized electromagnetically similar to a variable reluctance stepper motor. So it is an actuator that changes electrical pulses to angular displacement.

Electrical Specification Of Hybrid Stepper Motor

Product Name	Hybrid Stepper Motor
Step Accuracy	± 5%
Dielectric Strength	500V AC 1minute
Ambient Temperature	-20℃~50℃
Insulation resistance	100MΩ Min.500VDC
Step Angle	1.8°
Lead wire	8
Voltage (V)	6.0
Current (A/Phase)	4.0
Holding Torque (N.M)	6.8

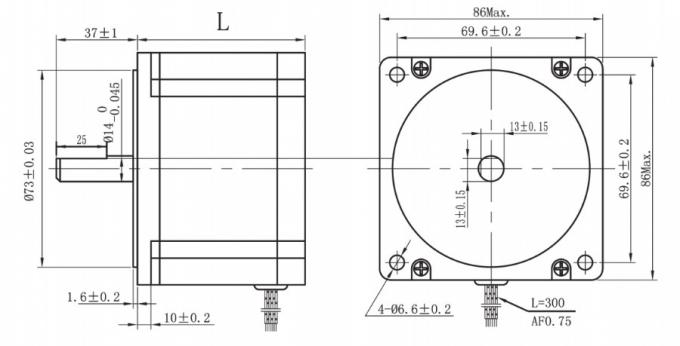

Mechanical Dimension Of Hybrid Stepper Motor

Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

Product Range Of TB-Motor

Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… TB-Motor also sends its products to USA, Europe, Southeast Asia and all-around China.

Products Annual Capacity

Hybrid stepper motor 3 million units

Brushless DC motor 2 million units

Servo motor 0.05 million units

Gear 0.2 million units

Since the reorganization in 1998, it has formed a certain scale of production and sales, with an annual production of more than 3 million motors.
