86mm Nema 34 Brushless DC Motor 59A 660W 8Pole 48V 3Phase 2.1Nm 3000RPM
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 86BLF |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Brushless DC Motor | No Of Poles | 8 Poles |
|---|---|---|---|
| No.of Phase | 3 Phase | Power | 220-660W |
| Winding Type | Star | Rated Voltage | 48V |
| Max Axial Force | 60N | Hall Effect Angle | 120° Electrical Angle |
| Insulation Class | B | MAX Radial Force | 220N (10mm From Front Flange) |
| Dielectric Strength | 600VAC 1 Minute | Insulation Resistance | 100MΩ Min.500VC DC |
| High Light | 86mm Nema 34 Brushless DC Motor,8Pole Brushless DC Motor 59A,2.1Nm 3 Phase Bldc Motor | ||
Product Description
86mm Nema 34 Brushless DC Motor 59A 660W 8Pole 48V 3Phase 2.1Nm 3000RPM
During the brushless DC motor design phase, Hetai engineers aim to optimize the brushless motor torque. Motor torque is the amount of rotational force that a motor generates during operation. The key components involved in producing torque are the magnet, the winding and the flux path. The higher the number of pole pairs in the magnet, the higher the amount of brushless motor torque for the same dissipated power. Copper content of the winding contributes to the power provided by the motor while flux path guides all of the magnetic field in the usable channel, minimizing losses. Striking the right balance is important while creating a motor with maximum brushless motor torque that does not draw a tremendous amount of power.
Electrical Specification Of Brushless DC Motor
| MODEL | NO.OF POLES | NO.OF PHASE | RATED VOLTAGE (VDC) | RATED TORQUE (N.M) | RATED SPEED (RPM) | RATED CURRENT (AMPS) | OUTPUT POWER (WATTS) | PEAK TORQUE (N.M) | PEAK CURRENT (AMPS) | TORQUE CONSTANT (N.M/AMPS) | ANTI – EMF CONSTANT (V/KRPM) | MOTOR HEIGHT (MM) | WEIGHT (KG) |
| 86BLF01 | 8 | 3 | 48 | 1.40 | 3000 | 12.17 | 439 | 4.20 | 36.5 | 0.115 | 12.0 | 94.0 | 2.99 |
| 86BLF02A | 8 | 3 | 48 | 1.05 | 3000 | 8.67 | 329 | 3.15 | 26.0 | 0.121 | 12.6 | 80.5 | 2.44 |
| 86BLF03 | 8 | 3 | 48 | 0.70 | 3000 | 5.33 | 220 | 2.10 | 16.0 | 0.130 | 13.7 | 67.0 | 1.78 |
| 86BLF06C | 8 | 3 | 48 | 1.80 | 3000 | 16.33 | 565 | 5.40 | 49.0 | 0.110 | 12.0 | 107.5 | 3.39 |
| 86BLF07 | 8 | 3 | 48 | 2.10 | 3000 | 19.67 | 660 | 6.30 | 59.0 | 0.106 | 11.2 | 124.0 | 4.07 |
You can download our 86BLF Brushless DC Motor product brochure:86BLF.pdf
| ELECTRICAL CONNECTION TABLE | ||
| +5V | WHT | UL1007 26AWG |
| HALL A | RED | |
| HALLB | YEL | |
| HALLC | BLU | |
| GND | BLK | |
| PHASE A | YEL | UL1015 18AWG |
| PHASE B | GREEN | |
| PHASE C | BLU | |

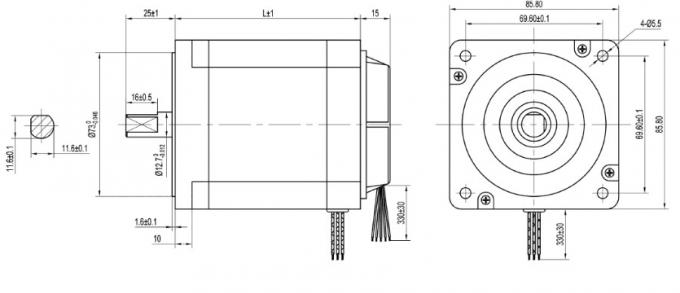

Mechanical Dimension Of Brushless DC Motor
Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Product Range Of TB-Motor
Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… TB-Motor also sends its products to USA, Europe, Southeast Asia and all-around China.
Automatic Assembly Line
Laser Welding Machine
TB-Motor is aiming to provide high-quality, comprehensive after-sales service. Strive for continuous improvement and excellence. If you have any questions, you will be on duty 24 hours a day, so you have no worries.
Looking forward to the future, we will work hard to create with a good attitude and serious attitude, meet the challenges of modern high-tech, and continue to expand our business areas to share the achievements of automation technology with more customers!
