Ac Servo Motor ES130 series 1KW 310V 5.5A 4.7N.M high performance servo motor factory direct sale
| Place of Origin | China |
|---|---|
| Brand Name | Hetai |
| Certification | CE ROHS ISO |
| Model Number | ES130 1KW |
| Minimum Order Quantity | 5 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1000pcs/month |
Leave a Message
Product Details
| Product Name | Servo Motor | Insulation Class | F |
|---|---|---|---|
| Protection Level | IP65 | Rated Torque | 4.70N.M |
| Rated Current | 5.5A | Work Temperature | 0℃~+55℃ |
| Preserve Temperature | 20℃～80℃ | Rated Power | 1000W |
| Speed(RPM) | 2000 RPM | Certification | CE ROHS ISO |
| High Light | 1kw ac servo motor,1000w servo motor,1000 watt servo motor 1000rpm | ||
Product Description
Ac Servo Motor ES130 series 1KW 310V 5.5A 4.7N.M high performance servo motor factory direct sale
Advantages of servo motors:
1. Accuracy: The servo motor realizes closed-loop control of position, speed and torque; it overcomes the problem of stepping motor out of step;
2. Speed: The servo motor has good high-speed performance, and the general rated speed can reach 2000-3000 rpm;
3. Adaptability: The servo motor has strong anti-overload capability and can withstand a load three times the rated torque, which is especially suitable for occasions with instantaneous load fluctuations and fast starting requirements;
4. Stability: The servo motor runs smoothly at low speed, and there is no stepping operation phenomenon similar to that of stepping motor when running at low speed. Applicable to occasions with high-speed response requirements;
5. Timeliness: The dynamic response time of servo motor acceleration and deceleration is short, generally within tens of milliseconds;
6. Comfort: The heating and noise of the servo motor are significantly reduced.
Electrical Specification
| Product Name: | ES130-1kw |
| Rated Power (W) | 1000 |
| Rated Speed (RPM) | 2000 |
| Voltage(VDC) | 310 |
| Rated Current(A) | 5.5 |
| Rated Torque (N.m) | 4.7 |
| Peak Torque(N.m) | 14.7 |
| Back EMF Constant(V/Krpm) | 55 |
Note: The products can be customized by your request. Please contact us for more details.

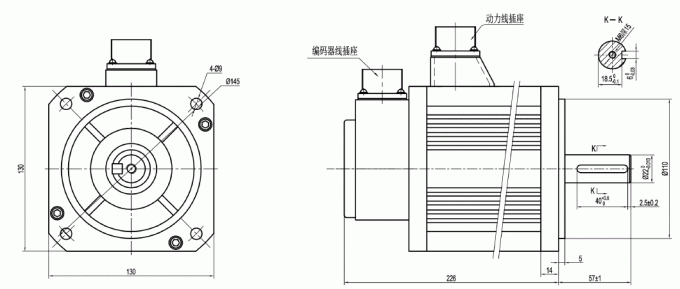

| Type | 130 | ||||
| Power | 1KW | 1.5KW | 2KW | 4KW | |
| Encoder | |||||
| L
| A | ||||
| B | |||||
| L | 143.5 | 157 | 171 | 226 | |
| N | |||||
| Type | 130 | ||||
| Power | 1KW | 1.5KW | 2KW | 4KW | |
| Encoder | |||||
| Weight | A | ||||
| B | |||||
| L | 5 | 6.09 | 7.2 | 11.4 | |
| N | |||||
A= tamagawa single-turn absolute value 17-bit encoder
B=incremental 2500ppr optical encoder
L=tamagawa multi-turn absolute value 17-bit encoder
N=Nikon multi-turn absolute value 24 bit
Product Range Of TB-Motor
Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.
Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
One of the most popular servo motor applications is in robotics. Consider a simple pick and place robot. A pick and place robot is a robotic machine that is used to pick an object from one position and place the object at a different position (as the name suggests).
When it comes to quality aspect, TB-Motor was qualified by ISO Certificate, CE and Rohs. The product quality has also been recognized by many customers.
TB-Motor is also proud of its research and develop strength. With the support of professional laboratory and experienced technicians, TB-Motor gained 13 Utility Patents and high-tech enterprise Award as well as other awards during the years.
