Ball Screw Stepper Motor Linear Actuator 57BYGH Electric DC 1.8 4 Heads
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 57BYGHL |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 25 DAYS |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Linear Step Motor | Step Accuracy | ± 5% |
|---|---|---|---|
| Temperature Rise | 80 ℃ Max | Insulation Resistance | 100MΩ Min.500VC DC |
| Ambient Temperature | -20℃~+50℃ | Dielectric Strength | 500VAC 1 Minute |
| Max Radial Force | 75N (20mm From Front Flange) | Max Axial Force | 15N |
| High Light | ball screw linear stepper motor,stepping motor 57bygh,ball screw linear stepper motor | ||
Product Description
57BYGHL Low Noise DC stepper motor 1.8° customization Tr 8*8(P2) 4 heads Linear stepper motor
Tr outer diameter * lead (pitch) + thread heads
57BYGHL013-13 Tr 8*8(P2) 4 heads with cooper screw nut
57BYGHL216-14 Tr 8*8(P2) 4 heads
57BYGHL603-01T Tr 8*8(P2) 4 heads Through type
| MODEL | STEP ANGLE (°/STEP) | LEAD WIRE (NO.) | VOLTAGE (V) | CURRENT (A/PHASE) | RESISTANCE (Ω/PHASE) | INDUCTANCE (MH/PHASE) | HOLDING TORQUE (KG.CM) | MOTOR HEIGHT L(MM) | MOTOR WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|
| 57BYGHL013-15 | 1.8 | 4 | 2.7 | 1.5 | 1.8 | 4.0 | 4.0 | 41 | 0.45 |
| 57BYGHL216-10 | 1.8 | 4 | 3.3 | 1.7 | 1.95 | 6.0 | 10.0 | 51 | 0.65 |
| 57BYGHL401-03 | 1.8 | 4 | 6.0 | 0.6 | 10.0 | 32.0 | 9.0 | 56 | 0.70 |
| 57BYGHL602-07 | 1.8 | 4 | 10.4 | 0.8 | 13.0 | 42.0 | 19.8 | 78 | 1.00 |
| 57BYGHL815-01 | 1.8 | 4 | 7.36 | 1.6 | 4.6 | 16.0 | 20.0 | 84 | 1.13 |
*Products can be customized by special request.
*Wiring Diagram

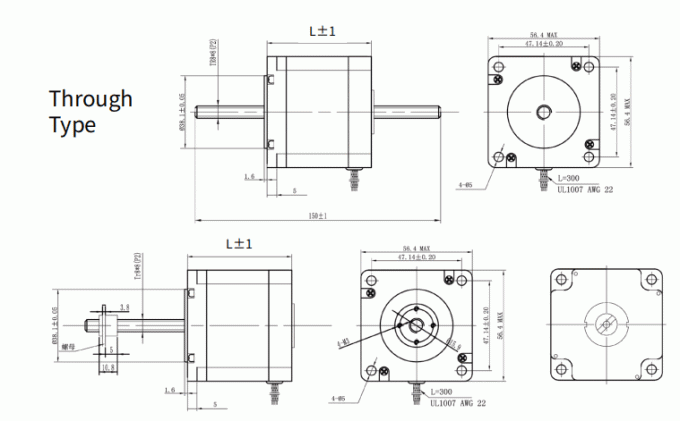

*Mechanical Dimension
Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… TB-Motor also sends its products to USA, Europe, Southeast Asia and all-around China.
The Industrial applications of stepping motor include high speed pick and place equipment and multi-axis CNC machines, often directly driving lead screws or ballscrews. In the field of optics they are frequently used in precision positioning equipment such as linear actuators, linear stages, rotation stages, goniometers, and mirror mounts. Other uses are in packaging machinery, and positioning of valve pilot stages for fluid control systems. Commercially, stepper motors are used in floppy disk drives, flatbed scanners, computer printers, plotters, slot machines, image scanners, compact disc drives and many more devices
