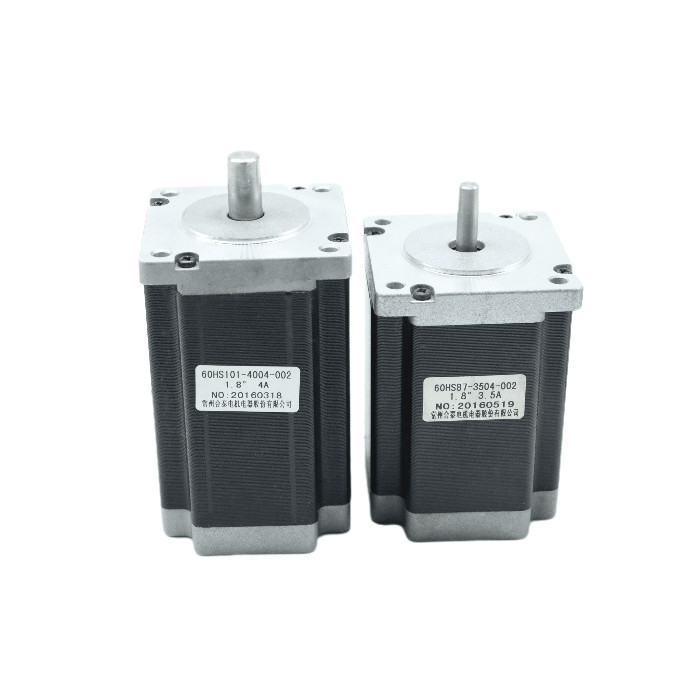

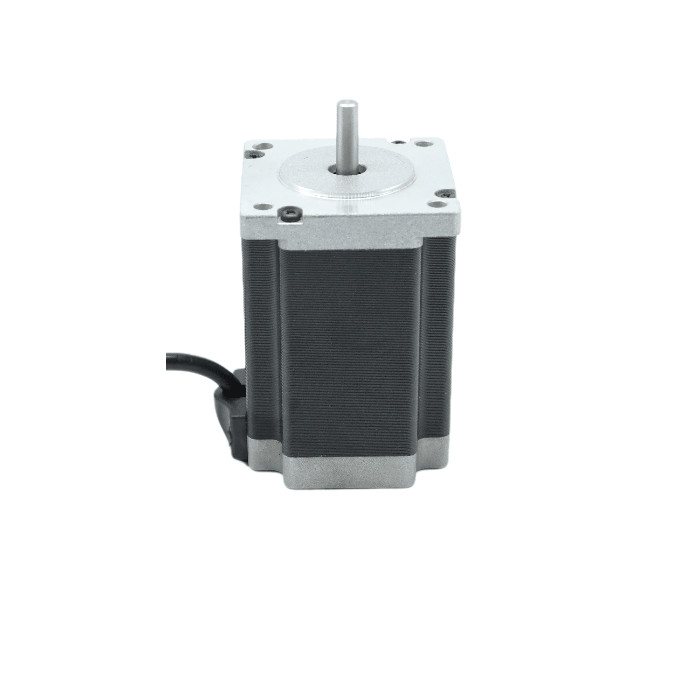

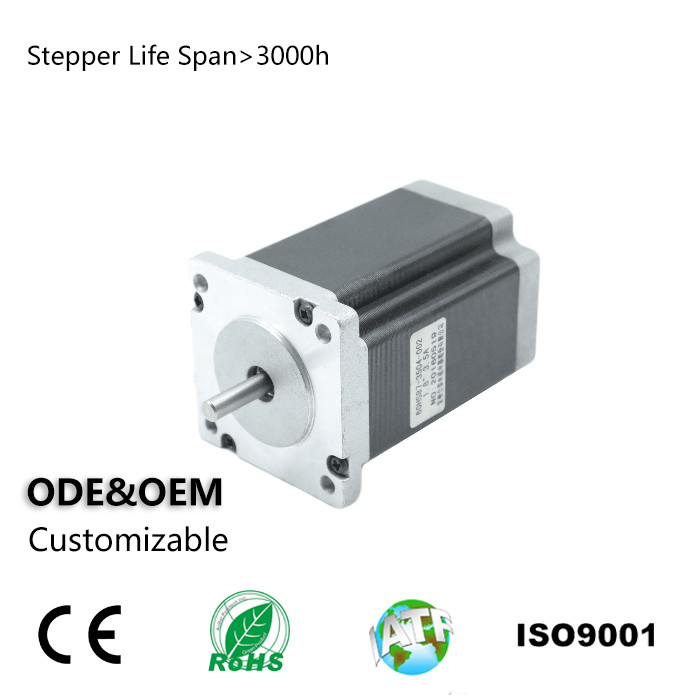

Chinese motor manufacturers direct sales 60HS101-4204-002 nema24 60mm stepper motor hybrid stepping motor
| Place of Origin | China |
|---|---|
| Brand Name | HeTai |
| Certification | CE ROHS ISO |
| Model Number | 60HS101-4204-002 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Hybrid Stepper Motor | Step Angle | 1.8 ° |
|---|---|---|---|
| Lead Wire | 4 | Rated Voltage | 4.2V |
| Rated Current | 4.2A | Resistance | 1.0Ω |
| Inductance | 4.0mH | Holding Torque | 33 Kg.cm |
| Motor Height | 101 Mm | Motor Weight | 1.6 Kg |
| High Light | 33 Kg.cm Hybrid Stepping Motor,101mm Hybrid Stepping Motor,4.2V Nema24 Stepping Motor | ||
Product Description
Chinese motor manufacturers direct sales 60HS101-4204-002 nema24 60mm stepper motor hybrid stepping motor
A stepper motor is an open-loop control motor that converts electrical pulse signals into angular displacement or linear displacement, also known as a pulse motor. In the case of non-overload, the speed and stop position of the motor only depend on the frequency and pulse number of the pulse signal, and are not affected by the load change. When the stepper driver receives a pulse signal, it can drive the stepper motor to rotate a fixed angle in the set direction, which is called “step angle”.
Electrical Specification Of Hybrid Stepper Motor
Product Name | Hybrid Stepper Motor |
Step Accuracy | ± 5% |
Dielectric Strength | 500V AC 1minute |
Ambient Temperature | -20℃~50℃ |
Insulation resistance | 100MΩ Min.500VDC |
Step Angle | 1.8° |
Lead wire | 4 |
Voltage (V) | 4.2 |
Current (A/Phase) | 4.2 |
Holding Torque (Kg.cm) | 33 Kg.cm |

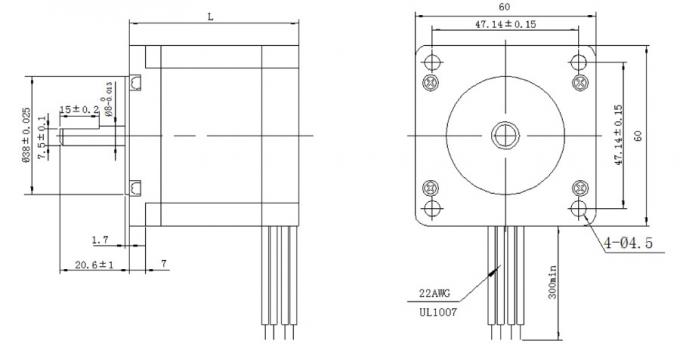

Mechanical Dimension Of Hybrid Stepper Motor
Market Range of Hetai
Hetai also sends its products to the USA, Europe, Southeast Asia, and all-around China.
Product Range Of Hetai
Our main products are Stepper Motor, Planetary Gearbox&Gearbox Motor, Brushless DC Motor, Servo Motor.
ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Professional experimental equipment
CNC Center
Packing&Delivery
Strictly palletizing and packaging to ensure that the motor will be delivered to the customer in good condition.
Automatic assembly line
Since the reorganization in 1998, it has formed a certain scale of production and sales, with an annual production of more than 3 million motors.
