Customized Low Noise Stepper Planetary Gear Motor Dc Gear Motor

Place of Origin	China
Brand Name	TB-Motor
Certification	CE ROHS ISO
Model Number	42BYGH835-08AG16
Minimum Order Quantity	50
Price	USD
Packaging Details	Carton with Inner Foam Box, Pallet
Delivery Time	28-31 DAYS
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	5000 PCS/MONTH

GET AN ESTIMATE NOW

Product Details

Product Name	Gearbox Stepper Motor	Stepper Angel	1.8
Step Angle Accuracy	±5%	Rated Voltage	12V
Rated Current	0.5A	Holding Torque	4.4N.m
Resistance	24 Ohms	Phase	2
Motor Length	80.1mm	Insulation Class	B
High Light	Low Noise Stepper Planetary Gear Motor,Stepper Planetary Gear Motor,Customized Dc Gear Motor 12V

Product Description

Customized high quality low noise step motor stepper planetary gear motor dc gear motor

The deceleration stepper motor is a very widely used deceleration transmission equipment. The main transmission structure is assembled by a stepper motor and a gear box. The working principle and application direction of the deceleration stepper motor are now introduced in detail; the stepper motor gear reduction unit is mainly It consists of a stepping motor and a gearbox reducer. The former is a stepping motor. The stepping motor switches the frequency of the stator phase current. If the input pulse of the stepping motor drive circuit is improved, it will become a low-speed motion.

Electrical Specification Of Gearbox Stepper Motor

Model	42BYGH835-08AG16
Step Angle (°/Step)	1.8
Lead Wire	4
Voltage (V)	12
Current(A/Phase)	0.5
Resistance	24
Inductance (mH/Phase)	36
Holding Torque with gearbox (N.m)	4.4

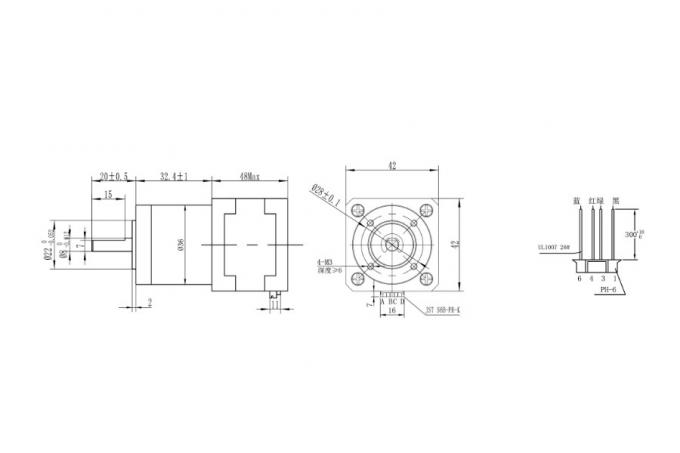

Mechanical Dimension Of Gearbox Stepper Motor

Experienced Manufacturer

Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

Product Range Of TB-Motor

Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… TB-Motor also sends its products to USA, Europe, Southeast Asia and all-around China.

Market Range Of Hetai

Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… Hetai also sends its products to USA, Europe, Southeast Asia and all-around China.
Raw Materials Of Gearbox Stepper Motor
