Cylindrical Gearbox Stepper Motor 8 Nm 4 nm 12v Gear Reducer Ratio 1 54
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 42BYGH208-59AG54 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 25 DAYS |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Stepping Gearbox Motor | Step Accuracy | ± 5% |
|---|---|---|---|
| Temperature Rise | 80 ℃ Max | Insulation Resistance | 100MΩ Min.500VC DC |
| Ambient Temperature | -20℃~+50℃ | Dielectric Strength | 500VAC 1 Minute |
| Radial Load(10mm From Flange | ≤120N | Shaft Axial Load | ≤80N |
| Rated Tolerance Torque | 8.0 Nm | Max Momentary Tolerance Torque | 25 N.m |
| High Light | Cylindrical Stepper Motor,Gearbox Stepper Motor 8Nm,4nm stepper motor | ||
Product Description
42BYGH208-59AG54 stepping gear motor 12v with low noise cylindrical gear reducer ratio 1:54
| Model | Size | Weight(g) | Current/phase | Gearbox diameter | Reduction Ratio | Step Angle | Holding torque with gearbox (Nm) |
| 42BYGH208-59AG54 | 42*42*93.8 mm | 467 | 0.4 | 42mm | 1:54 | 1.8 | 8.78 |
| 42BYGH208-58AG117 | 42*42*75.6 mm | 413 | 0.4 | 36mm | 1:117 | 1.8 | 19.01 |
| 42BYGH603-07AG5 | 42*42*64.5 mm | 385 | 0.4 | 36mm | 1:5 | 1.8 | 1.54 |
| 42BYGH603-08AG16 | 42*42*72.1 mm | 413 | 0.4 | 36mm | 1:16 | 1.8 | 4.38 |
Electrical Specification
| STEP ANGLE | °/STEP | 1.8 |
| RATED VOLTAGE | V | 12 |
| CURRENT | A/PHASE | 0.4 |
| RESISTANCE | Ω/PHASE | 30 |
| INDUCTANCE | mH/PHASE | 42 |
| HOLDING TORQUE | Kg.cm | 2.5 |
| INSULATION CLASS | B | |
*Products can be customized by special request.

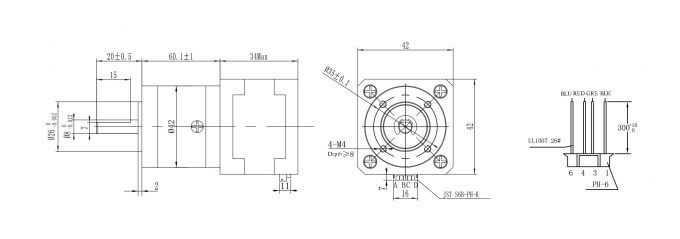

Wiring Diagram
Mechanical Dimension
Based on all these advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors, and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… Hetai also sends its products to the USA, Europe, Southeast Asia, and all-around China.
GEARBOX Electrical Specification:
Out diameter 42mm Powder metallurgy
| Housing material | Bearing at output | Radial load(10mm from flange)N | Shaft axial load(N) | Shaft press-fit force max(N) | Radial play of shaft(mm) | Thrust play of shaft(mm) | Backlash at no-load (°) |
| Powder metallurgy | sleeve bearing | ≤120 | ≤80 | ≤500 | ≤0.03 | ≤0.1 | ≤1.5 |
| Reduction ratio | Rated tolerance torque (Nm) | Max momentary tolerance torque (Nm) | Efficiency% | Length (mm) | Weight(g) | Number of gear trains |
| 1/4 | 1.0 | 3.0 | 81% | 32.5 | 170 | 1 |
| 1/6 | ||||||
| 1/15 | 4.0 | 12 | 72% | 46.3 | 207 | 2 |
| 1/18 | ||||||
| 1/25 | ||||||
| 1/36 | ||||||
| 1/54 | 8.0
| 25
| 65%
| 60.1
| 267
| 3 |
| 1/65 | ||||||
| 1/90 | ||||||
| 1/112 | ||||||
| 1/155 | ||||||
| 1/216 | 10 | 30 | 65% | 60.1 | 267 |
Wide Speed Ratio with a Long Service Lifespan
For the same amount of load capacity, a planetary gearbox has a higher service lifespan than the traditional gearboxes. Therefore, these gearboxes are easy to handle and install. These are key aspects that can improve efficiency and reliability in any mechanical system.
Again, the arrangement of gears is such that the entire system remains stable and reliable.
