Dc 12v Nema 17 High Torque Stepper Motor 4 Wire 4.2 Kgcm 1.8 Deg

Place of OriginChina
Brand NameTB-Motor
CertificationCE ROHS ISO
Model Number42BYGH835-10AG54
Minimum Order Quantity50
PriceUSD
Packaging DetailsCarton with Inner Foam Box, Pallet
Delivery Time25 DAYS
Payment TermsL/C, D/P, T/T, Western Union, MoneyGram
Supply Ability10000 PCS/MONTH
GET AN ESTIMATE NOW

Leave a Message

Product Details



Product NameStepping Gearbox MotorInsulation Resistance100MΩ Min.500VC DC
Step Accuracy± 5%Ambient Temperature-20℃~+50℃
Temperature Rise80 ℃ MaxDielectric Strength500VAC 1 Minute
Rated Tolerance Torque8NmMax Momentary Tolerance Torque25Nm
High Light
nema 17 stepper motor 4 wire,12v nema 17 stepper motor,nema 17 4.2 kgcm stepper motor



Product Description



42BYGH835-10AG54 NEMA 17 motor stepper gear motor dc 12 volts high torque 4 leads

ModelReduction RatioWeight(g)PhaseStep AngleStep Angle AccuracyTorque n.m
42BYGH835-07AG51:548521.8 °±5%1.78
42BYGH835-08AG161:165132.5
42BYGH835-10AG541:546078
42BYGH835-09AG1171:1175532.5



Electrical Specification

42BYGH835-10AG54
STEP ANGLE°/STEP1.8
RATED VOLTAGEV12
CURRENTA/PHASE0.5
RESISTANCEΩ/PHASE24
INDUCTANCEmH/PHASE36
HOLDING TORQUEkg.cm4.4
INSULATION CLASSB

Products can be customized by special request.



Wiring Diagram

Dc 12v Nema 17 High Torque Stepper Motor 4 Wire 4.2 Kgcm 1.8 Deg 0

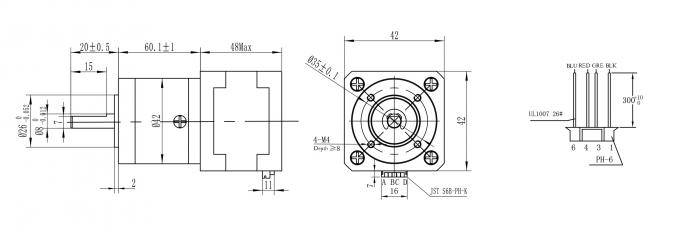

Mechanical Dimension
Dc 12v Nema 17 High Torque Stepper Motor 4 Wire 4.2 Kgcm 1.8 Deg 1
GEARBOX Electrical Specification:

Out diameter 42mm Powder metallurgy





Housing materialBearing at outputRadial load(10mm from flange)NShaft axial load(N)Shaft press-fit force max(N)Radial play of shaft(mm)Thrust play of shaft(mm)Backlash at no-load (°)
Powder metallurgysleeve bearing≤120≤80≤500≤0.03≤0.1≤1.5



Reduction ratioRated tolerance torque (Nm)Max momentary tolerance torque (Nm)Efficiency%Length

L

(mm)

Weight(g)Number of gear trains
1/41.03.081%32.51701
1/6
1/154.01272%46.32072
1/18
1/25
1/36
1/548.0



25



65%



60.1



267



3
1/65
1/90
1/112
1/155
1/216103065%60.1267



Mechanical Dimension

Dc 12v Nema 17 High Torque Stepper Motor 4 Wire 4.2 Kgcm 1.8 Deg 2

Dc 12v Nema 17 High Torque Stepper Motor 4 Wire 4.2 Kgcm 1.8 Deg 3

1. Are you a factory?

Yes, we are a factory. Our brand name TB-Motor is a well-known micro motor manufacturer for more than 20 years in

China. Main products including hybrid stepper motor, brushless DC motor, servo motor, and planetary gearbox.



2. Can I test the sample?

Yes, samples and freight are charged.



3. Can I get a Customized product?

Sure, all the products can be customized based on special requests.



4. How do you ship the goods?

We normally ship goods by express(DHL/UPS/FEDEX/TNT), by sea and by air, also accept freight forwarder.



5. What are the payment terms?

T/T(bank transfer), Paypal(0.5% paypal charges), ALIBABA assurance order accept



6. Is this your final price? May I have the discount?

Our price is the factory price. If you have a large quantity, we can negotiate about the discount.



7. What is the Warranty for your products?

Our warranty is for one year. If any quality problems occurred on our side during this period, we will take on the shipping cost and replacement. please note damage caused by improper use of the product is not covered by the warranty.
