Electric Conveyor Roller Motor 48V 1800RPM Tubular Motorised Conveyor Rollers
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | GT50-0072150-001 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 500 pcs/month |
Leave a Message
Product Details
| Product Name | Brushless Tubular Motor | Nominal Voltage | 48V |
|---|---|---|---|
| Insulation Class | B | Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100MΩ Min.500VC DC | Dielectric Strength | 600VAC 1 Minute |
| Size | 50mm*50mm*245mm | ||
| High Light | dc motor driven roller, brushless motor roller, Electric Conveyor Roller Motor 48V | ||
Product Description
GT50 high torque 48V 1800RPM Brushless tubular motor for intelligent Logistics
The tubular motor has various advantages such as high speed, low cost, high torque, high power, etc., which are driving the demand for the product among the manufacturer and end-users. Additionally, some other factors such as the advantage of variable speed with the adjustable governor, modern pulse techniques, line voltage, etc. are acting as the drivers for the global market of tubular motors.
Electrical Specification:
| Model | ||
| Specification | Unit | GT50-0072150-001 |
| Resistance | OHMS | 1.8 |
| Nominal Voltage | VDC | 48 |
| No Load Speed | RPM | 2400 |
| No Load Current | Amps | 0.5 |
| Rated Speed | Rpm | 1800 |
| Rated Current | Amps | 3.5 |
| Rated Torque | N.m | 0.72 |
| Rated Power | W | 135 |
| Torque Constant | N.m/A | 0.19 |
| Back EMF constant | V/kRPM | 20 |
| Insulation Class | B |

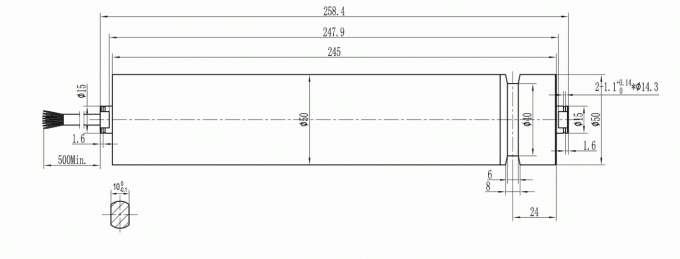

Mechanical Dimension
| Colour | Function | Cable Number |
| Yellow | U | 20AWG UL1330 |
| Red | V | |
| Black | W | |
| / |
| Colour | Function | Cable Number |
| Red | +5V | 26AWG UL1007 |
| Yellow | Hu | |
| Green | Hv | |
| Blue | Hw | |
| Black | GND |
***Note: The products can be customized by your request. Please contact us for more details.
Product Application
