Factory price high performance 40SG2947-2266-27K High Torque Dc Worm Gear Motor 250RPM 24V 12V
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 40SG2947-2266-27K |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000pcs/month |
Leave a Message
Product Details
| Product Name | DC Worm Gear Motor | Rated Voltage | 12V/24V |
|---|---|---|---|
| Rated Speed | 200 RPM | No Load Speed | 250RPM |
| Power | 0.6 W | Current | 1100mA |
| No Load Current | 250mA | Rated Torque | 3 Kg.cm |
| Reduction Ratio | 1:27 | Material | Steel |
| High Light | High Torque Dc Worm Gear Motor,12V Dc Worm Gear Motor,250RPM 24V Dc Gear Motor | ||
Product Description
Hetai hot sale 40SG2947-2266-27K Chinese Supplier High Torque 250RPM 24V 12V worm motor dc worm gear motor
Features of dc worm gear motor
1. The mechanical structure is compact, the volume is light and the shape is small and efficient;
2. Good heat exchange performance and fast heat dissipation;
3. Easy to install, flexible and light, superior performance, easy to maintain and repair;
4. Smooth operation, low noise, and durability;
5. Strong usability, high safety and reliability;
Electrical Specification:
Model | dc worm gear motor |
Voltage (V) | 12 |
Rated Current(mA) | 1100 |
Rated Speed (rpm) | 200±10% |
Rated Torque (kg.cm) | 3 |
Stall torque(kg.cm) | 15 |

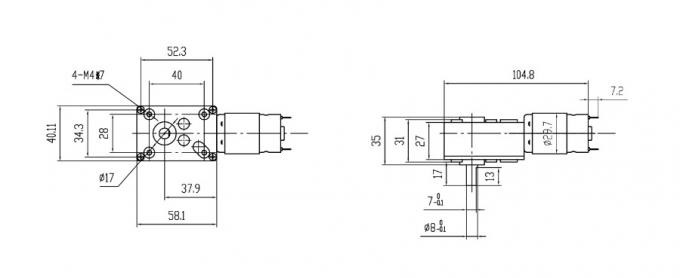

Mechanical Dimension
Factory of TB-Motor
Market Range of TB-Motor
TB-Motor also sends its products to the USA, Europe, Southeast Asia, and all-around China.
Product Range Of TB-Motor
Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.
Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
High-quality Raw Materials
CNC Center
Packing&Delivery
Strictly palletizing and packaging to ensure that the motor will be delivered to the customer in good condition
