Bulk hot sale 42BYGHL series Tr 8*8(P2) 4 heads cnc 1.8-degree hybrid micro linear stepper motor
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 42BYGHL |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 25 DAYS |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Linear Step Motor | Step Accuracy | ± 5% |
|---|---|---|---|
| Temperature Rise | 80 ℃ Max | Insulation Resistance | 100MΩ Min.500VC DC |
| Ambient Temperature | -20℃~+50℃ | Dielectric Strength | 500VAC 1 Minute |
| Max Radial Force | 28N (20mm From Front Flange) | Max Axial Force | 10N |
| High Light | hybrid stepper motor linear actuators Tr8x8 P2,hybrid linear stepper motor Tr8x8 P2,hybrid linear actuator Tr8x8 P2 | ||
Product Description
42BYGHL series Tr 8*8(P2) 4 heads cnc 1.8-degree hybrid micro linear stepper motor
Specification of the screw
Tr outer diameter * lead (pitch) + thread heads
42BYGHL208-02 Tr 8*8(P2) 4 heads
42BYGHL805-04AE Tr 8*8(P2) 4 heads
42BYGHL842 Tr 8*8(P2) 4 heads
| MODEL | STEP ANGLE (°/STEP) | LEAD WIRE (NO.) | VOLTAGE (V) | CURRENT (A/PHASE) | RESISTANCE (Ω/PHASE) | INDUCTANCE (MH/PHASE) | HOLDING TORQUE (KG.CM) | MOTOR HEIGHT L(MM) | MOTOR WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|
| 42BYGHL208-12A | 1.8 | 4 | 12.0 | 0.4 | 30.0 | 42.0 | 2.6 | 34 | 0.20 |
| 42BYGHL613-03A | 1.8 | 4 | 2.3 | 1.7 | 1.35 | 3.0 | 3.5 | 40 | 0.26 |
| 42BYGHL810-09 | 1.8 | 4 | 3.8 | 1.2 | 3.2 | 6.0 | 4.5 | 48 | 0.36 |
*Products can be customized by special request.
Wiring Diagram

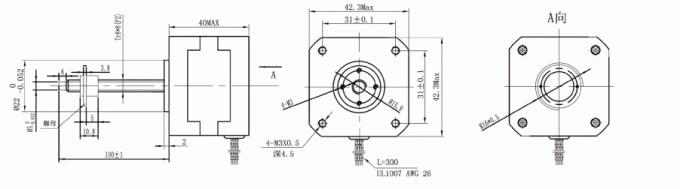

Mechanical Dimension
Based on all these advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors, and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… TB-Motor also sends its products to the USA, Europe, Southeast Asia, and all-around China.

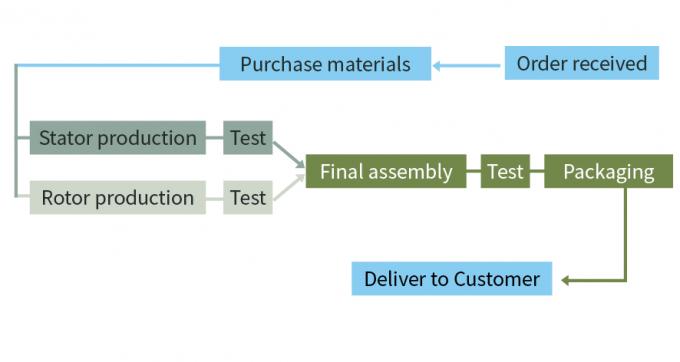

Hetai Production Process
Construction & Working Principle
The construction of a stepper motor is fairly related to a DC motor. It includes a permanent magnet like Rotor which is in the middle & it will turn once force acts on it. This rotor is enclosed through a no. of the stator which is wound through a magnetic coil all over it. The stator is arranged near to rotor so that magnetic fields within the stators can control the movement of the rotor.
