Nema17 Hybrid Stepping Motor 42mm 0.9 Step Angle
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 42BYGHM203 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Hybrid Stepper Motor | Step Angle | 0.9 ° |
|---|---|---|---|
| Lead Wire | 4 | Rated Voltage | 10V |
| Rated Current | 0.5A | Resistance | 20 Ω |
| Inductance | 40mH | Holding Torque | 2.1 Kg.cm |
| Motor Height | 34 Mm | Motor Weight | 0.20 Kg |
| High Light | Nema17 Hybrid Stepping Motor,0.9 Step Angle Hybrid Stepping Motor,42mm Nema17 Stepper Motor | ||
Product Description
Nema17 hot sale 42mm high quality factory direct supply stepping motor hybrid stepper motor
Features of stepper motors:
1. The accuracy of the stepping motor is generally 3-5% of the stepping angle.
2. The maximum allowable temperature of the stepper motor depends on the demagnetization point of different motor magnetic materials. When the temperature of the stepper motor is too high, the magnetic material of the motor will demagnetize, resulting in a drop in torque or even loss of steps.
3. The torque of the stepper motor will decrease as the speed increases. When the stepping motor rotates, the inductance of each phase winding of the motor will form a back electromotive force; the higher the frequency, the greater the back electromotive force.
4. The stepper motor can run normally at low speed, but it cannot be started above a certain speed, accompanied by whistling.
Electrical Specification Of Hybrid Stepper Motor
Product Name | Hybrid Stepper Motor |
Step Accuracy | ± 5% |
Dielectric Strength | 500V AC 1minute |
Ambient Temperature | -20℃~50℃ |
Insulation resistance | 100MΩ Min.500V DC |
Step Angle | 0.9° |
Lead wire | 4 |
Voltage (V) | 10 |
Current (A/Phase) | 0.5 |
Holding Torque (Kg.cm) | 2.1 Kg.cm |

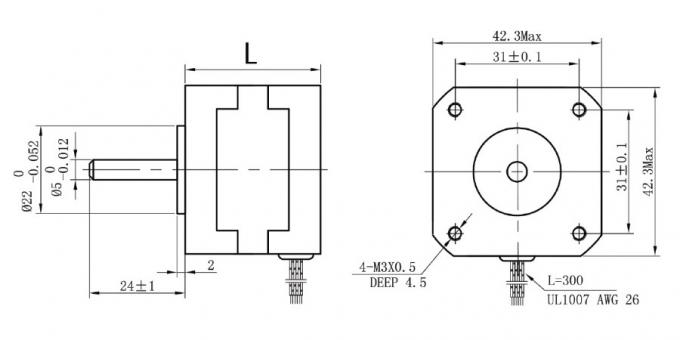

Mechanical Dimension Of Hybrid Stepper Motor
Product Range Of TB-Motor
Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.
Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
