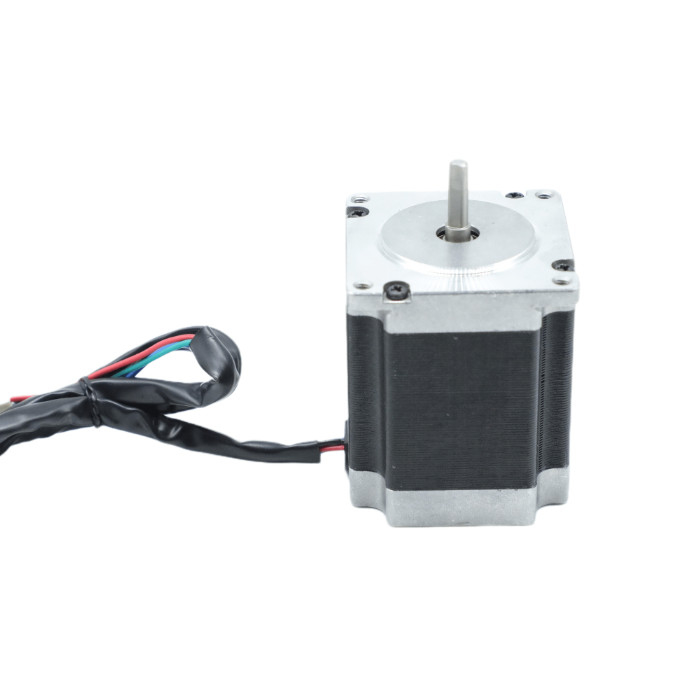

High Performance 57BYGHM601-05 Hybrid Stepper Motor 6 Lead Wire 8.6V 1.0A 13kg.Cm
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 57BYGHM601-05 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Hybrid Stepper Motor | Step Angle | 0.9 ° |
|---|---|---|---|
| Lead Wire | 6 | Inductance | 20mH |
| Holding Torque | 13 Kg.cm | Rated Voltage | 8.6V |
| Rated Current | 1.0A | Resistance | 8.6Ω |
| Motor Height | 78 Mm | Motor Weight | 1 Kg |
| High Light | 13kg.Cm Hybrid Stepper Motor,57BYGHM601-05 Hybrid Stepper Motor,1.0A 6 Lead Wire Stepper Motor | ||
Product Description
Hetai 57BYGHM601-05 6 lead wire 8.6V 1.0A 13kg.cm high performance hybrid stepper motor manufacture direct supply
Stepper motor is a kind of induction motor. Its working principle is to use electronic circuit to turn DC power into time-sharing power supply, and multi-phase sequence control current. Use this current to power the stepper motor, so that the stepper motor can work normally. The driver is a time-sharing power supply for the stepper motor, a multi-phase sequence controller.
Stepper motor is an open-loop control motor that converts electrical pulse signals into angular displacement or linear displacement. It is the main executive element in modern digital program control systems and is widely used. . In the case of non-overload, the speed and stop position of the motor only depend on the frequency and number of pulses of the pulse signal, and are not affected by the load change. When the stepper driver receives a pulse signal, it drives the stepper motor to press The set direction is rotated by a fixed angle, called “step angle”, and its rotation is performed step by step at a fixed angle. The angular displacement can be controlled by controlling the number of pulses, so as to achieve the purpose of accurate positioning; at the same time, the speed and acceleration of the motor rotation can be controlled by controlling the pulse frequency, so as to achieve the purpose of speed regulation.
Electrical Specification Of Hybrid Stepper Motor
Product Name | Hybrid Stepper Motor |
Step Accuracy | ± 5% |
Dielectric Strength | 500V AC 1minute |
Ambient Temperature | -20℃~50℃ |
Insulation resistance | 100MΩ Min.500V DC |
Step Angle | 0.9° |
Lead wire | 6 |
Voltage (V) | 8.6 |
Current (A/Phase) | 1.0 |
Holding Torque (Kg.cm) | 13 Kg.cm |
Mechanical Dimension Of Hybrid Stepper Motor
Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Product Range Of TB-Motor
Different reduction gearboxs
Silent Room
The noise of the motor can be tested in the silent room to make the motor run quietly.
CNC Center
Packing&Delivery
Strictly palletizing and packaging to ensure that the motor will be delivered to the customer in good condition.
