High Performance 57HN46-005A Hybrid Stepper Motor Nema23 Stepping Motor

Place of Origin	China
Brand Name	TB-Motor
Certification	CE ROHS ISO
Model Number	57HN46-005A
Minimum Order Quantity	50
Price	USD
Packaging Details	Carton with Inner Foam Box, Pallet
Delivery Time	28-31 DAYS
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	5000 PCS/MONTH

GET AN ESTIMATE NOW

Product Details

Product Name	Hybrid Stepper Motor	Step Angle	1.8 °
Lead Wire	4	Rated Voltage	2.3V
Rated Current	4.2A	Resistance	0.55Ω
Inductance	1.5mH	Holding Torque	10.6 Kg.cm
Motor Height	46 Mm	Motor Weight	0.54 Kg
High Light	4.2A Hybrid Stepper Motor,4Wire Hybrid Stepper Motor,46mm Nema23 Stepping Motor

Product Description

Hetai hot sale High Performance cheap price 57HN46-005A Hybrid Stepper Motor Nema23 Stepping motor

All motors convert electrical power, volts and amps, into mechanical power, torque and speed. The unique feature of stepper motors is that they can be very accurately controlled in terms of speed and rotation angle. Stepper motors are brushless DC motors, and as such, require an electronic driver to commutate the windings. In order to control the rotation, electrical pulses are input into the driver, and the motor rotates one step for each pulse. The excellent stability of the motor results in a simple control circuit, since the motor can be run open-loop and no feedback is required.

There are three types of stepper motors; variable reluctance, permanent magnet and hybrid stepper motors. This article will focus on hybrid stepper motors as well as Oriental Motor’s AlphaStep Hybrid Control System for stepper motors.

Electrical Specification Of Hybrid Stepper Motor

Product Name	Hybrid Stepper Motor
Step Accuracy	± 5%
Dielectric Strength	500V AC 1minute
Ambient Temperature	-20℃~50℃
Insulation resistance	100MΩ Min.500VDC
Step Angle	1.8°
Lead wire	4
Voltage (V)	2.3
Current (A/Phase)	4.2
Holding Torque (Kg.cm)	10.6 Kg.cm

Mechanical Dimension Of Hybrid Stepper Motor

Experienced Manufacturer

Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

Product Range Of TB-Motor

Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… TB-Motor also sends its products to USA, Europe, Southeast Asia and all-around China.

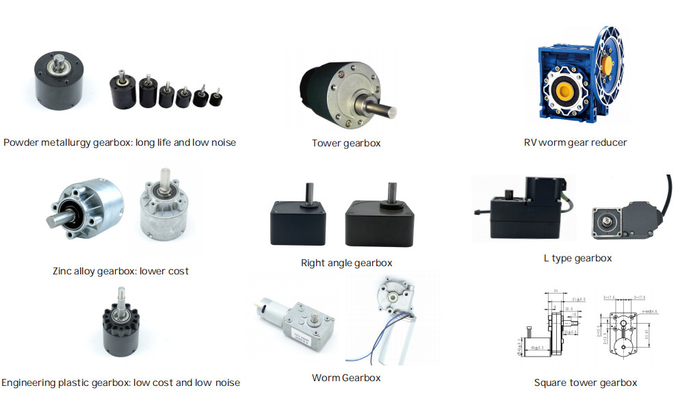

Different reduction gearboxs
