High Performance Linear Stepper Motor 3.78V 0.6A Factory Direct Sale

Place of OriginChina
Brand NameTB-Motor
CertificationCE ROHS ISO
Model Number28BYGHL102-XX
Minimum Order Quantity50
PriceUSD
Packaging DetailsCarton with Inner Foam Box, Pallet
Delivery Time28-31
Payment TermsL/C, D/P, T/T, Western Union, MoneyGram
Supply Ability5000pcs/month
GET AN ESTIMATE NOW

Leave a Message

Product Details



Product NameLinear Stepper MotorStep Angle1.8 °
Rated Voltage3.78 VNo-load Current0.6 A
Resistance6.3 ΩRated Torque600 G.cm
Inductance3.7mHInsulation ClassB
Protect FeatureIP40CertificationCE ROHS ISO
High Light
Linear Stepper Motor 3.78V,Linear Stepper Motor 0.6A,IP40 Stepper Motor Linear Actuator



Product Description



Hetai hot sale high performance liner stepper motor 3.78V 0.6A factory direct sale

The basic principle of linear stepping motor: a screw and a nut are engaged, and a certain method is used to prevent the relative rotation of the screw and nut, so that the screw moves axially. Generally speaking, there are currently two ways to achieve this transformation. The first is to build a rotor with an internal thread in the motor, and the internal thread of the rotor and the screw are meshed to achieve linear motion. The second is to use the screw as the The motor exits the shaft, and an external drive nut engages with the screw outside the motor to achieve linear motion. The result is a greatly simplified design, enabling the use of linear stepper motors for precise linear motion without the need for external mechanical linkages in many applications.



Electrical Specification:

Product Name
Linear Stepper Motor
Model
28BYGHL102-XX
Step Angle
1.8 °
Rated Voltage (V)
3.78 V
No-load current
0.6 A
Rated Torque with gearbox (g.cm)
600
Resistance
6.3 Ω
Insulation class
B

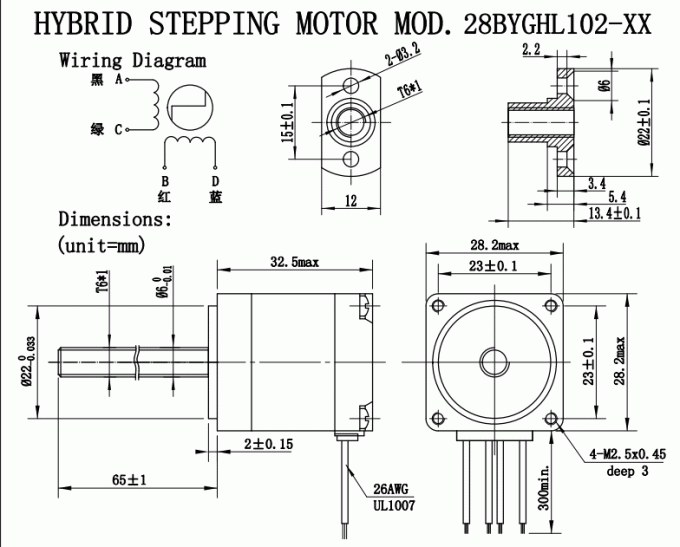

Mechanical Dimension

High Performance Linear Stepper Motor 3.78V 0.6A Factory Direct Sale 0



CNC Center

High Performance Linear Stepper Motor 3.78V 0.6A Factory Direct Sale 1High Performance Linear Stepper Motor 3.78V 0.6A Factory Direct Sale 2High Performance Linear Stepper Motor 3.78V 0.6A Factory Direct Sale 3



Automatic Assembly Line

High Performance Linear Stepper Motor 3.78V 0.6A Factory Direct Sale 4



Packing & Delivery

High Performance Linear Stepper Motor 3.78V 0.6A Factory Direct Sale 5

High Performance Linear Stepper Motor 3.78V 0.6A Factory Direct Sale 6High Performance Linear Stepper Motor 3.78V 0.6A Factory Direct Sale 7
