High Performance Low Voltage 24V 48V Dc Brushless Servo Motor 60mm
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | ES60 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Servo Motor | Rated Voltage | 24V Or 48V |
|---|---|---|---|
| Rated Power | 100W-600W | Rated Current | 5.6A-38A |
| Rated Speed | 3000RPM | Rated Torque | 0.32N.M Or 1.9N.M |
| Maximum Torque | 0.96N.M Or 5.7N.M | Insulation Class | F |
| Protection Level | IP65 | Temperature | -20℃~+55℃ |
| High Light | IP65 48V Dc Brushless Servo Motor,24V Dc Brushless Servo Motor 60mm,600W Dc Servo Motor | ||
Product Description
Factory supply 60mm high performance Low voltage 24V 48V dc brushless servo motor
A servo motor is controlled by controlling its position using Pulse Width Modulation Technique. The width of the pulse applied to the motor is varied and send for a fixed amount of time.
The pulse width determines the angular position of the servo motor. For example, a pulse width of 1 ms causes an angular position of 0 degrees, whereas a pulse width of 2 ms causes an angular width of 180 degrees.
Electrical Specification Of Servo Motor
24V Servo Motor
Rated Voltage(V) | 24 | |||
Rated Power(W) | 100 | 200 | 400 | 600 |
Model | ES6005K-10S30L3 | ES6005K-20D30L1 ES6005K-20D30L2 | ES6005K-40D30L1 ES6005K-40D30L2 | ES6005K-60D30L1 |
Rated Current(Amps) | 5.6 | 12.7 | 25 | 38 |
Rated Speed(RPM) | 3000 | 3000 | 3000 | 3000 |
Rated Torque(N.M) | 0.32 | 0.64 | 1.27 | 1.90 |
Maximum Torque(N.M) | 0.96 | 1.91 | 3.81 | 5.70 |
Torque Constant(N.M/Amps) | 0.057 | 0.05 | 0.054 | 0.054 |
Rotor Moment Of Inertia(Kg.cm2) | 0.15*10-4 | 0.42*10-4 | 0.67*10-4 | 0.95*10-4 |
Resistance Line-line(Ω) | 0.27 | 0.135 | 0.07 | 0.035 |
Inductance Line-line(mH) | 0.60 | 0.28 | 0.18 | 0.06 |
48V Servo Motor
Rated Voltage(V) | 48 | ||
Rated Power(W) | 200 | 400 | 600 |
Model | ES6005G-20D30L1 ES6005G-20D30L2 | ES6005G-40D30L1 ES6005G-40D30L2 | ES6005G-60D30L2 |
Rated Current(Amps) | 8 | 11 | 16 |
Rated Speed(RPM) | 3000 | 3000 | 3000 |
Rated Torque(N.M) | 0.64 | 1.27 | 1.90 |
Maximum Torque(N.M) | 1.91 | 3.81 | 5.70 |
Torque Constant(N.M/Amps) | 0.09 | 0.12 | 0.12 |
Rotor Moment Of Inertia(Kg.cm2) | 0.42*10-4 | 0.67*10-4 | 0.95*10-4 |
Resistance Line-line(Ω) | 0.4 | 0.16 | 0.07 |
Inductance Line-line(mH) | 1.0 | 0.28 | 0.10 |
Length & Weight
Type | 60 | |||||
Encoder | Power | |||||
100W | 200W | 400W | 600W | |||
Length (mm) | Single turn absolute value (Tamagawa) | No Brake | 91±1 | 101±1 | 121±1 | 141±1 |
With Brake | 125±1 | 135±1 | 155±1 | 175±1 | ||
Multi turn (Tamagawa) | No Brake | 106±1 | 116±1 | 136±1 | 156±1 | |
With Brake | 140±1 | 150±1 | 170±1 | 190±1 | ||
Incremental 2500ppr (Optical encoder) | No Brake | 106±1 | 116±1 | 136±1 | 156±1 | |
With Brake | 140±1 | 150±1 | 170±1 | 190±1 | ||
Rotary transformer | No Brake | 91±1 | 101±1 | 121±1 | 141±1 | |
With Brake | 125±1 | 135±1 | 155±1 | 175±1 | ||
Nikon multi turn absolute value | No Brake | 91±1 | 101±1 | 121±1 | 141±1 | |
With Brake | 125±1 | 135±1 | 155±1 | 175±1 | ||
Type | 60 | |||||
Encoder | Power | |||||
100W | 200W | 400W | 600W | |||
Weight (kg) | Single turn absolute value (Tamagawa) | No Brake | 0.51 | 1.00 | 1.28 | 2.00 |
With Brake | 0.95 | 1.46 | 1.85 | 2.50 | ||
Multi turn (Tamagawa) | No Brake | 0.57 | 1.10 | 1.42 | 2.10 | |
With Brake | 1.00 | 1.50 | 1.86 | 2.70 | ||
Incremental 2500ppr (Optical encoder) | No Brake | 0.63 | 1.05 | 1.35 | 2.10 | |
With Brake | 1.00 | 1.25 | 1.80 | 2.70 | ||
Rotary transformer | No Brake | 0.77 | 1.26 | 1.63 | 2.00 | |
With Brake | 1.20 | 1.68 | 2.00 | 2.50 | ||
Nikon multi turn absolute value | No Brake | 0.50 | 0.85 | 1.23 | 2.00 | |
With Brake | 0.94 | 1.23 | 1.65 | 2.50 | ||
Product Range Of TB-Motor
Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.
Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Servo Motor Of TB-Motor

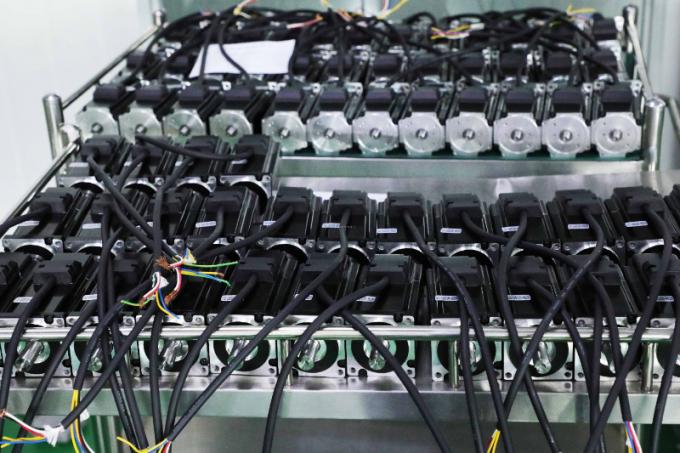

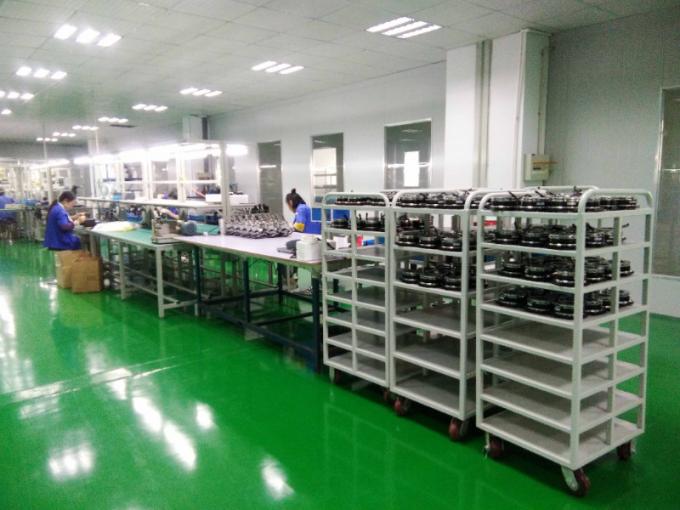

Assembly Line Of Servo Motor
