High Power Dc310v Brushless Permanent Magnet Motor 440W 1.4 Nm 86BLF01F 003
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 86BLF01F-003 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 25 DAYS |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Brushless DC Motor | Winding Type | Star |
|---|---|---|---|
| Ambient Temperature | -20℃~+50℃ | Hall Effect Angle | 120° Electrical Angle |
| Insulation Resistance | 100MΩ Min.500VC DC | Insulation Class | B |
| Dielectric Strength | 600VAC 1 Minute | Max Radial Force | 220N (10mm From Front Flange) |
| Max Axial Force | 60N | Rated Torque | 1.4 Nm |
| High Light | High Power Brushless Motor 310v 440W,Bldc Permanent Magnet Motor,dc310v brushless motor | ||
Product Description
86BLF01F-003 440W 3000RPM 1.4NM stable performance Three-phase brushless DC motor
-Resistance 5.7 OHMS
-No-load current 0.4A
-No-load speed 3800RPM
-Max Radial Force 220N (10mm from front flange)
-Max Axial Force 60N
Electrical Specification:
| Specification | Unit | 86BLF01F-003 |
| Number Of Phases | Phase | 3 |
| Number Of Poles | Poles | 8 |
| Rated Voltage | VDC | 310 |
| Rated Speed | Rpm | 3000 |
| Rated Torque | N.m | 1.4 |
| Rated Power | W | 440 |
| Peak Torque | N.m | 4.2 |
| Torque Constant | N.m/A | 0.78 |
| Back EMF constant | V/kRPM | 81.6 |
| Body Length | mm | 97 |
| Weight | Kg | 2.99 |
Wiring Diagram
| FUNCTION | COLOR | ||
| +5V | WHITE | UL1007 26AWG | |
| HALL A | RED | ||
| HALLB | YELLOW | ||
| HALLC | BLUE | ||
| GND | BLACK | ||
| PHASE A | RED | UL1015 18AWG | |
| PHASE B | YELLOW | ||
| PHASE C | BLUE | ||

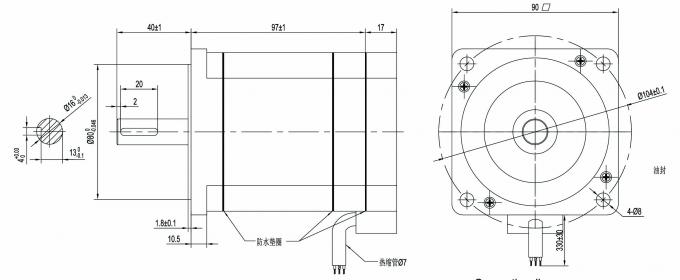

Mechanical Dimension
