High Quality Low Voltage 24V 48V Dc Brushless Servo Motor 40mm 3000RPM
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | ES40 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Servo Motor | Rated Voltage | 24V Or 48V |
|---|---|---|---|
| Rated Power | 50W Or 100W | Rated Current | 1.6A-6.2A |
| Rated Speed | 3000RPM | Rated Torque | 0.16N.M Or 0.32N.M |
| Maximum Torque | 0.48N.M Or 0.96N.M | Insulation Class | F |
| Protection Level | IP65 | Temperature | -20℃~+55℃ |
| High Light | Dc Brushless Servo Motor 40mm,3000RPM Dc Brushless Servo Motor,Brushless 24V Dc Servo Motor | ||
Product Description
Factory direct sale 40mm high quality Low voltage 24V 48V 3000RPM dc brushless servo motor
As we know that any electrical motor can be utilized as servo motor if it is controlled by servomechanism. Likewise, if we control a DC motor by means of servomechanism, it would be referred as DC servo motor. There are different types of DC motor, such shunt wound DC motor, series DC motor, Separately excited DC motor, permanent magnet DC motor etc. Among all mainly separately excited DC motor, permanent magnet DC motor and brush less DC motor are used as servo.
Electrical Specification Of Servo Motor
24V Servo Motor
Rated Voltage(V) | 24 | |||
Rated Power(W) | 50 | 100 | ||
Model | ES4005G-05S30N1 ES4005G-05S30N2 | ES4005G-10S30N1-T ES4005G-10S30N2-001 | ||
Rated Current(Amps) | 3.2 | 6.2 | ||
Rated Speed(RPM) | 3000 | 3000 | ||
Rated Torque(N.M) | 0.16 | 0.32 | ||
Maximum Torque(N.M) | 0.48 | 0.96 | ||
Torque Constant(N.M/Amps) | 0.05 | 0.05 | ||
Rotor Moment Of Inertia (Kg.cm2) | 0.027 | 0.027 | ||
Resistance Line-line(Ω) | 1.20 | 0.58 | ||
Inductance Line-line(mH) | 1.10 | 0.43 | ||
48V Servo Motor
Rated Voltage(V) | 48 | |||
Rated Power(W) | 50 | 100 | ||
Model | ES4005K-05S30N1 ES4005K-05S30N2 | ES4005K-10S30N1-T ES4005K-10S30N2-001 | ||
Rated Current(Amps) | 1.6 | 3.5 | ||
Rated Speed(RPM) | 3000 | 3000 | ||
Rated Torque(N.M) | 0.16 | 0.32 | ||
Maximum Torque(N.M) | 0.48 | 0.96 | ||
Torque Constant(N.M/Amps) | 0.10 | 0.10 | ||
Rotor Moment Of Inertia (Kg.cm2) | 0.045 | 0.045 | ||
Resistance Line-line(Ω) | 0.58 | 1.30 | ||
Inductance Line-line(mH) | 0.43 | 1.20 | ||

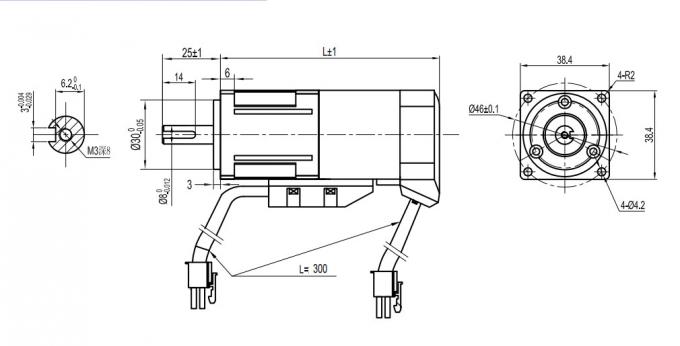

Length & Weight
Type | 40 | |||
Encoder | Power | |||
50W | 100W | |||
Length (mm) | Single turn absolute value (Tamagawa) | No Brake | 72±1 | 92±1 |
With Brake | 102±1 | 127±1 | ||
Multi turn (Tamagawa) | No Brake | 77±1 | 97±1 | |
With Brake | 107±1 | 127±1 | ||
Nikon multi turn absolute value | No Brake | 65±1 | 80±1 | |
With Brake | 95±1 | 110±1 | ||
Rotary transformer | No Brake | 77±1 | 92±1 | |
With Brake | 107±1 | 127±1 | ||
Incremental 2500ppr (Optical encoder) | No Brake | 77±1 | 97±1 | |
With Brake | 107±1 | 127±1 | ||
Type | 40 | |||
Encoder | Power | |||
50W | 100W | |||
Weight (Kg) | Single turn absolute value(Tamagawa) | No Brake | 0.36 | 0.50 |
With Brake | 0.62 | 0.72 | ||
Multi turn absolute value(Tamagawa) | No Brake | 0.35 | 0.52 | |
With Brake | 0.62 | 0.72 | ||
Nikon multi turn absolute value | No Brake | 0.35 | 0.65 | |
With Brake | 0.65 | 0.65 | ||
Rotary transformer | No Brake | 0.62 | 0.77 | |
With Brake | 0.83 | 1.00 | ||
Incremental 2500ppr (Optical encoder) | No Brake | 0.42 | 0.60 | |
With Brake | 0.70 | 0.80 | ||
Product Range Of TB-Motor
Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.
Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Servo Motor Of TB-Motor
Assembly Line Of Servo Motor
Laser Welding Machine
TB-Motor is aiming to provide high-quality, comprehensive after-sales service. Strive for continuous improvement and excellence. If you have any questions, you will be on duty 24 hours a day, so you have no worries.
Looking forward to the future, we will work hard to create with a good attitude and serious attitude, meet the challenges of modern high-tech, and continue to expand our business areas to share the achievements of automation technology with more customers!
Patent Certificate Of TB-Motor
