High Torque 3v 20g.Cm Brush Electric Dc Gear 13mm Micro Planetary Reducer Motor
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 13PG1332-03017556-16K |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | DC Brush Gear Motor | Rated Voltage | 3V |
|---|---|---|---|
| No-load Current | ≤130mA | No-load Speed | 1094±3%RPM |
| Rated Speed | 1000±15%rpm | Reduction Ratio | 1:16 |
| Rated Torque | 20g.cm | Rated Current | ≤1300mA |
| Motor Length | 44.5 ±0.5 | Protect Feature | IP40 |
| High Light | 13mm Micro Planetary Reducer Motor,20g.Cm Micro Planetary Reducer Motor,13mm Brush Electric Dc Gear Motor | ||
Product Description
High Torque Low Rpm 3v 20g.cm Brush Electric dc Gear 13mm Micro planetary reducer motor
What is Brushed DC motor?
Brushed DC motors are one of the simplest types of DC motor. It uses brushes to deliver current to the motor windings through mechanical commutation.
The number of coils wound around the motor and the density of the coils determine the properties of the motor. The armature or rotor is an electromagnet. The field magnet is a permanent magnet. This motor does not require any controller to operate or vary the speed.
Technical requirements:
1. Rated voltage:3V,Rated torque:20g.cm;
2. No-load speed:1094±3%rpm,No-load current:≤130mA
3. Rated Speed:1000±10%rpm,Rated current:≤1300mA
4. Starting current:≤0.8A
5. Reduction ratio:1:16
6. Parts are RoHS compliant.

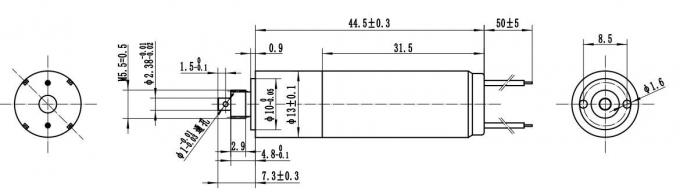

Mechanical Dimension
Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Product Range Of TB-Motor
Production Process Of TB-Motor
Automatic Assembly Line
Laser Spot Welding machine
TB-Motor has several sophisticated instruments and equipment,such as Laboratory,Rotor Grinding Outer Circle,CNC Center.We also have several fully automatic modern assembly lines and several test workshops.
