High Torque Planetary Gear Nema 23 Stepper Motor 57mm 9 Kg Cm 0.9nm 57BYGH222-05
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 57BYGH222-05 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 25 DAYS |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Hybrid Stepping Motor | Step Accuracy | ± 5% |
|---|---|---|---|
| Insulation Resistance | 100MΩ Min.500VC DC | Ambient Temperature | -20℃~+50℃ |
| Temperature Rise | 80 ℃ Max | Dielectric Strength | 500VAC 1 Minute |
| Motr Weight | 0.65kg | Max Radial Force | 75N (20mm From Front Flange) |
| Max Axial Force | 15N | Motor Length | 51mm |
| High Light | 57BYGH222 05 Nema 23 Stepper Motor 57mm,57BYGH222 05 Planetary Gear Nema 23 Stepper Motor,57BYGH222 05 | ||
Product Description
57BYGH222-05 High Torque Output Stepper Motor 51mm Gear Nema 23 Stepper Motor
The stepper motor working principle is Electro-Magnetism. It includes a rotor which is made with a permanent magnet whereas a stator is with electromagnets. Once the supply is provided to the winding of the stator then the magnetic field will be developed within the stator. Now rotor in the motor will start to move with the rotating magnetic field of the stator. So this is the fundamental working principle of this motor
Model Number | 57BYGH222-05 |
Step Accuracy | ± 5% |
Step Angle | 1.8° |
Lead Wire | 4 |
Voltage (V) | 2.4 |
Current (A/Phase) | 3 |
Holding Torque (N.m) | 0.9 |
| Resistance (Ω/phase) | 11 |
| Inductance (mH/phase) | 25 |
| Motor length (MM) | 51 |
| Motr Weight(K/g) | 0.65 |
| Insulation Class | B |
*Products can be customized by special request.

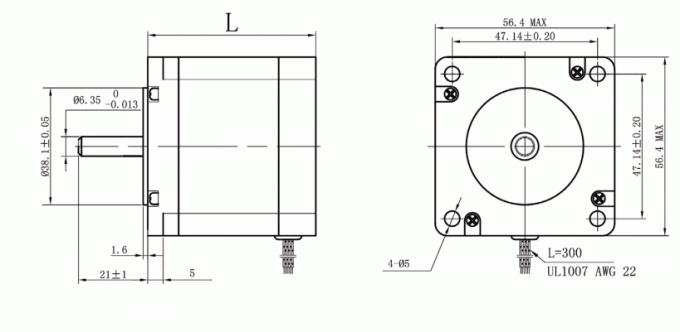

Wiring Diagram
| MODEL | STEP ANGLE (°/STEP) | LEAD WIRE (NO.) | VOLTAGE (V) | CURRENT (A/PHASE) | RESISTANCE (Ω/PHASE) | INDUCTANCE (MH/PHASE) | HOLDING TORQUE (KG.CM) | MOTOR HEIGHT L(MM) | MOTOR WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|
| 57BYGH001A | 1.8 | 4 | 6.0 | 0.5 | 12 | 20 | 3.5 | 41 | 0.45 |
| 57BYGH048-11 | 1.8 | 4 | 4.4 | 2.0 | 2.2 | 5.0 | 6.0 | 41 | 0.45 |
| 57BYGH201-22A | 1.8 | 4 | 6.6 | 0.6 | 11 | 25 | 7.0 | 51 | 0.65 |
| 57BYGH218-45 | 1.8 | 4 | 2.6 | 2.0 | 1.3 | 4 | 8.0 | 51 | 0.65 |
| 57BYGH420-77 | 1.8 | 6 | 3.8 | 2.0 | 1.9 | 3.5 | 9.0 | 56 | 0.70 |
| 57BYGH432-63A | 1.8 | 6 | 2.4 | 3.0 | 0.8 | 1.2 | 9.0 | 56 | 0.70 |
| 57BYGH633-131 | 1.8 | 6 | 3.0 | 3.0 | 1.0 | 1.8 | 13.5 | 78 | 1.00 |
| 57BYGH639-10E | 1.8 | 4 | 2.1 | 4.2 | 0.5 | 1.6 | 18 | 78 | 1.13 |
| 57BYGH801-01 | 1.8 | 6 | 3.3 | 3.0 | 1.1 | 2.5 | 16 | 84 | 1.13 |
| 57BYGH815 | 1.8 | 4 | 7.36 | 1.6 | 4.6 | 16 | 20 | 84 | 1.13 |
*Products can be customized by special request.
*Can match with gearbox 42, 52, 56
Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… Hetai also sends its products to USA, Europe, Southeast Asia and all-around China.

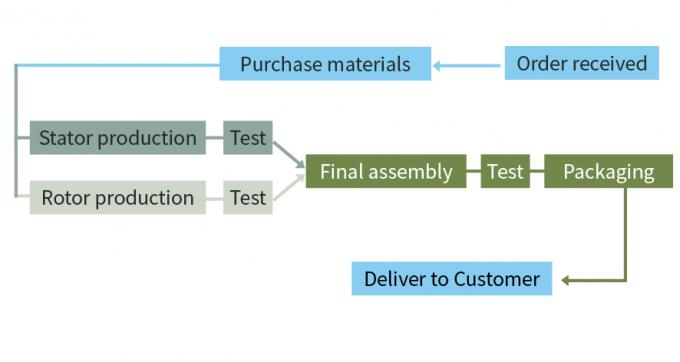

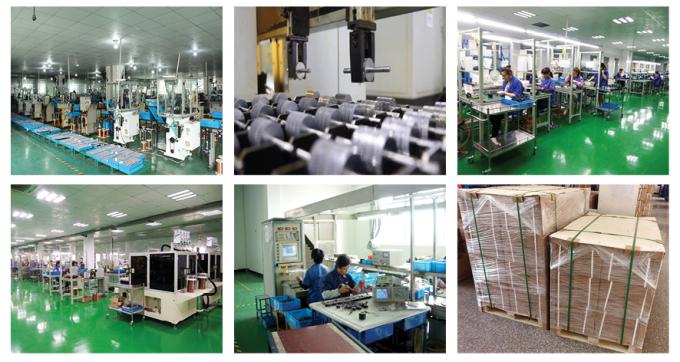

Hetai Production Process
