Hot Sale Brushless Dc Motor supplier Nema17 Nema23 12V 24V 42BLF 57BLF With CE ROHS ISO

Place of Origin	China
Brand Name	TB-Motor
Certification	CE ROHS ISO
Model Number	42BLF/57BLF
Minimum Order Quantity	50
Price	USD
Packaging Details	Carton with Inner Foam Box, Pallet
Delivery Time	28-31
Payment Terms	L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability	5000pcs/month

GET AN ESTIMATE NOW

Product Details

Product Name	Brushless DC Motors	Voltage Range	12V, 24V, 36V, 310V
Speed Range	300 Rpm-10000 Rpm	Power Range	8 W-2000 W
Torque Range	0.015 N.m-6.5 N.m	Hall Effect Angle	120° Electrical Angle
Insulation Class	B	Certification	CE ROHS ISO
Winding Type	Star	Ambient Temperature	-20°± 150°
Dielectric Strength	600 VAC 1 Minute	Max Radial Force	22 N-220 N (10mm From Front Flange)
Max Axial Force	2 N-60 N
High Light	Nema23 Brushless Dc Motor,42BLF Brushless Dc Motor,ROHS Bldc Brushless Motor

Product Description

Brushless Dc Motor Supplier Nema17 Nema23 12V 24V 42BLF 57BLF with CE ROHS ISO

Brushless Dc Motor Electrical Specification:

		Model
Specification	Unit	22BL, 28BL, 42BL, 57BL, 57BLF, 60BL, 80BL, 86BL, 110BL
Voltage Range	VDC	12v, 24v, 36v, 310v
Speed Range	Rpm	300-10000
Current Range	A	0.6-19.67
Torque Range	N.m	0.015-6.5
Power Range	W	8-2000

Product Range

Product Name	External Diameter	Voltage Range	Power Range	Rated torque
Sever Motor	40 mm-130 mm	24V, 36V, 48V, 310V	100 W-3000 W	0.12 N.m-20 N.m
Product Name	External Diameter	Rated Tolerance Torque	Momentary Tolerance Torque	Efficiency
Planetary Gearbox&Gearbox Motor	22 mm-63 mm	0.1 N.m-20 N.m	0.3 N.m-60 N.m	65 %, 72%, 81%
Product Name	External Diameter	Speed Range	Power Range	Rated torque
Dc Brushless Motor	28 mm-110 mm	300 Rpm-10000 Rpm	8 W-2000 w	0.02 N.m-6.5 N.m
Product Name	External Diameter	Step angle	Holding Torque	Inductance Range
Stepping Motor	28 mm-110 mm	0.9, 1.2, 1.8	1 Kg.cm-33 Kg.cm	1 mh-42 mh

MANUFACTURE EQUIPMENT

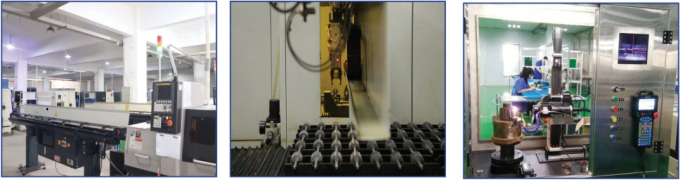

CNC CENTER ROTOR GRINDING LASER SPOT WELDER

OUT CIRCLE

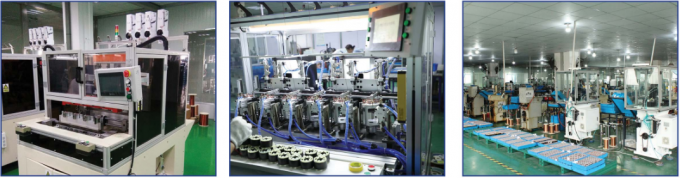

AUTOMATIC MULTI-HEAD AUTOMATIC MULTI-HEAD WINDING MACHINE

WINDING MACHINE WINDING MACHINE

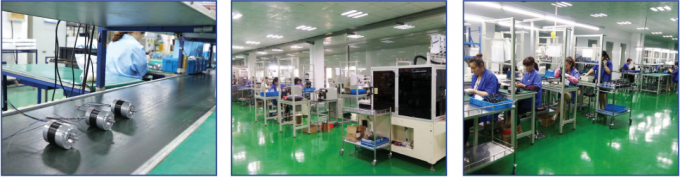

AUTOMATIC ASSEMBLY LINE ASSEMBLY LINE

ASSEMBLY LINE

QUALITY CONTROL PROCESS

Incoming Inspection

Measure Diameter Measure Length Measure Hardness

Stator Inspection

Measure Height Measure Resistance Test Waveform Test phase Test withstand voltage

Rotor Inspection

Rotor Positioning Measure core thickness Measure Rotor Check motor Measure the outer circle

shaft length misalignment

Brushless Motor Final Inspection

Measure the Motor Length Measure the Shaft Length Measure the Ouler Circle

Measure the Screw Hole Measure the Length of Wire Measure the Length of PVC

Distance

Test the Resistance Listening Test the speed

Why Choose us

We offer you:

Engineering Support

Our professional team can help you to find the right and suitable motor for you. Our engineers have rich experience of motion control products in various industries, such as robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment, and so on.


Find	Customise	Optimise
Our team can help you find most suitable motor for the application from o ur vast selection of motors	We can design and customise the performance and exterior for your pecific use or assembly	For OEM projects, we have over 15 years experience od solving different problems in various application. We improve our product together with our customer.

Manufacturing Support

Regardless of the volume of the order, we will provide the same service. Our engineering team is able to provide you with quick and accurate prototypes based on your custom requirements.
