Hot sale high performance 48v 750w low price factory supply Ac Servo Motor 3000 Rpm 20A With Encoder
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | ES80 750W |
| Minimum Order Quantity | 5 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1000pcs/month |
Leave a Message
Product Details
| Product Name | Servo Motor | Speed(RPM) | 3000 |
|---|---|---|---|
| Insulation Class | F | Work Temperature | 0℃~+55℃ |
| Preserve Temperature | 20℃～80℃ | Rated Voltage | 48V, 310V |
| Rated Current | 20A | Protection Level | IP65 |
| Rated Toruqe | 2.38N.M | Encoder | Optional |
| High Light | 750 watt ac servo motor,Ac Servo Motor 750w,48v ac servo motor | ||
Product Description
Hot sale high performance 48v 750w low price factory supply Ac Servo Motor 3000 Rpm 20A With Encoder
| Model ES80 Series | ||||
| Rated Power | Rated Voltage | Rated Current | Rated Speed | Rated Torque |
| 750W | 310V | 4.0A | 3000RPM | 2.4N.m |
| 750W | 48V | 20A | 2.4N.m | |
Electrical Specification
| Product Name: | ES80 |
| Rated Power (W) | 750 |
| Rated Speed (RPM) | 3000 |
| Voltage(VDC) | 310 |
| Rated Current(A) | 4 |
| Rated Torque (N.m) | 2.4 |
| Peak Torque(N.m) | 7.2 |
| Back EMF Constant(V/Krpm) | 39 |
Without Brake
| PIN | FUNCTION | COLOUR |
| 1 | U | Red |
| 2 | V | White |
| 3 | W | Black |
| 4 | G | Yellow/Green |
| PIN | FUNCTION | COLOUR |
| 1 | Shield | NC |
| 2 | DC+5V | Red |
| 3 | GND | Black |
| 4 | B | Green |
| 5 | Z- | Yellow/white |
| 6 | U | Brown |
| 7 | Z | Yellow |
| 8 | U- | Brown/white |
| 9 | A | Grey |
| 10 | W | Orange |
| 11 | V | Blue |
| 12 | W- | Orange/white |
| 13 | A- | Grey/white |
| 14 | B- | Green/white |
| 15 | V- | Blue/white |

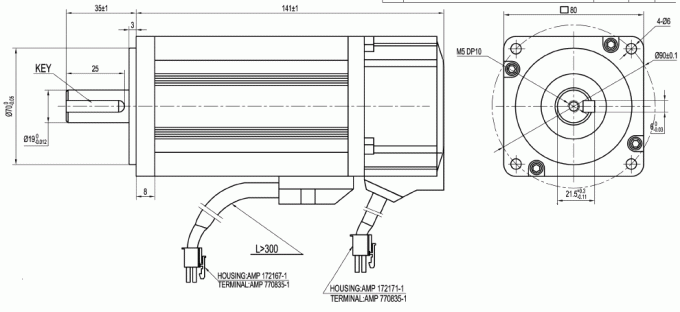

Without Brake
| Type | 80 | ||
| Power | 750W | ||
| Encoder | |||
| L (mm) | A | 125 | |
| B | 141 | ||
| L | 141 | ||
| N | |||
| Type | 80 | ||
| Power | 750W | ||
| Encoder | |||
| Weight (Kg) | A | 2.42 | |
| B | 2.43 | ||
| L | 2.43 | ||
| N | |||
Note: A, B, L, N refers to the different encoder.
A= tamagawa single-turn absolute value 17-bit encoder
B=incremental 2500ppr optical encoder
L=tamagawa multi-turn absolute value 17-bit encoder
N=Nikon multi-turn absolute value 24 bit
