Large Torque Hybrid Stepper Motor 60mm 6 Wires 1.8 Degree 11 Kg Cm 1nm 5.8v
| Place of Origin | China |
|---|---|
| Brand Name | TB-Motor |
| Certification | CE ROHS ISO |
| Model Number | 60BYGH406-03 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 25 DAYS |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS/MONTH |
Leave a Message
Product Details
| Product Name | Hybrid Stepping Motor | Step Accuracy | ± 5% |
|---|---|---|---|
| Inductance | 4.3 MH | Insulation Resistance | 100MΩ Min.500VC DC |
| Ambient Temperature | -20℃~+50℃ | Temperature Rise | 80 ℃ Max |
| Dielectric Strength | 500VAC 1 Minute | Max Radial Force | 75N (20mm From Front Flange) |
| Max Axial Force | 15N | Motor Length | 56mm |
| High Light | Stepper Motor 60mm 1.8 Degree,Hybrid Stepper Motor 60mm 1nm,1nm stepper motor 6 wires | ||
Product Description
60BYGH406-03 High Torque Output 1.8 Degree 11 Kg.cm Stepping Motor
As a stepper motor manufacturer who has over 20 years of expertise, TB-Motor is confident of abundant industrial experience serving customers who require stepper motors for application of robotics, packing, textile, medical, printing, and among many others. Please let us know your performance and operational requirements, such as size, load, torque, and other specifics. Then we can provide you more suitable solutions.
Electrical Specification
| Model Number | 60BYGH406-03 |
| Step Accuracy | ± 5% |
| Step Angle | 1.8° |
| Lead Wire | 6 |
| Voltage (V) | 5.8 |
| Current (A/Phase) | 1.8 |
| Holding Torque (Kg.cm) | 11 |
| Resistance (Ω/phase) | 3.2 |
| Inductance (mH/phase) | 4.3 |
| Motor length (MM) | 56 |
| Motor Weight(Kg) | 0.77 |
| Insulation Class | B |
*Products can be customized by special request.
Wiring Diagram

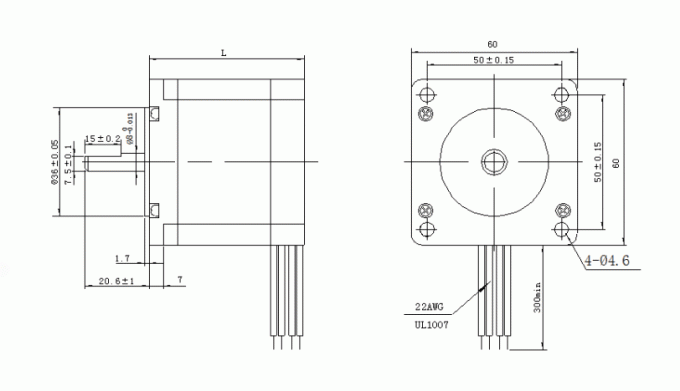

Mechanical Dimension
Specification of Other Models:
| MODEL | STEP ANGLE (°/STEP) | LEAD WIRE (NO.) | VOLTAGE (V) | CURRENT (A/PHASE) | RESISTANCE (Ω/PHASE) | INDUCTANCE (MH/PHASE) | HOLDING TORQUE (KG.CM) | MOTOR HEIGHT L(MM) | MOTOR WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|
| 60BYGH402-13A | 1.8 | 6 | 2.4 | 3.0 | 0.8 | 1.6 | 10 | 56 | 0.77 |
| 60BYGH410-05A | 1.8 | 4 | 6.0 | 1.0 | 6.0 | 16 | 12.5 | 56 | 0.77 |
| 60BYGH502-03A | 1.8 | 4 | 5.32 | 1.4 | 3.8 | 10 | 12.5 | 64 | 1.00 |
| 60BYGH500 | 1.8 | 6 | 3.6 | 1.5 | 8.4 | 8.0 | 12.5 | 64 | 1.00 |
| 60BYGH805-56 | 1.8 | 4 | 2.8 | 4.0 | 0.8 | 3.5 | 23.5 | 87 | 1.34 |
| 60BYGH808A | 1.8 | 4 | 4.5 | 3.0 | 1.5 | 5.0 | 26 | 87 | 1.34 |
*Products can be customized by special request.
*Products can match gearbox 52.56mm
