Low Noise 42BLF03 Nema17 3 Phase Bldc Motor 24v Brushless Dc Motor

Place of Origin	China
Brand Name	TB-Motor
Certification	CE ROHS ISO
Model Number	42BLF03
Minimum Order Quantity	50
Price	USD
Packaging Details	Carton with Inner Foam Box, Pallet
Delivery Time	28-31 DAYS
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	5000 PCS/MONTH

GET AN ESTIMATE NOW

Product Details

Product Name	Brushless DC Motor	Rated Voltage	24V
Rated Torque	0.188N.M	Rated Power	78W
Rated Speed	4000RPM	Rated Current	4.17A
Number Of Poles	8 Poles	Number Of Phase	3 Phase
Winding Type	Star	Insulation Class	B
High Light	Nema17 3 Phase Bldc Motor,3 Phase Bldc Motor 24v,Nema17 24v Brushless Dc Motor

Product Description

Low noise 42BLF03 nema17 3 phase factory supply bldc motor 24v brushless dc motor Advantages of Brushless DC Motors:
1. Good external characteristics, very consistent with the load characteristics of electric vehicles
2. Can run in low, medium and high speed range
3. High efficiency, especially under light load conditions
4. Strong overload capacity
5. Good regenerative braking effect
6. Small size, light weight and high specific power
7. High reliability
8. The control system is simpler than the asynchronous motor

Electrical Specification Of Brushless DC Motor

Product Name:	Brushless Motor
Dielectric Strength:	500V AC 1minute
Ambient Temperature:	-20℃~50℃
Insulation resistance:	100MΩ Min.500V DC
Voltage:	24(VDC)
No-load speed:	5000Rpm
No-load current:	0.8A
Rated Speed:	4000(RPM)
Rated torque:	0.188N.m

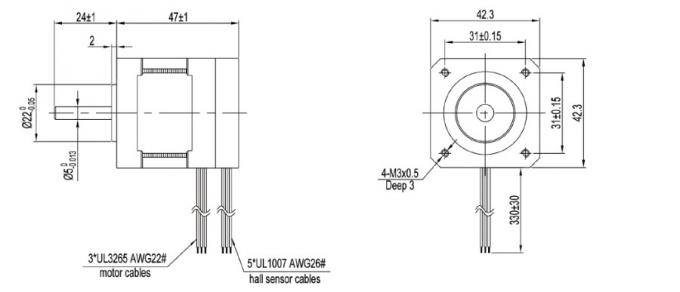

Mechanical Dimension Of Brushless DC Motor

Shanghai TB-Motor is an experienced motor manufacturer. For more than 20 years, TB-Motor dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

Product Range Of TB-Motor

Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment… TB-Motor also sends its products to USA, Europe, Southeast Asia and all-around China.
